(132) - R20141 TRACK CARRIER ROLLER, TRACK CARRIER ROLLER, (USED BEFORE TRAC. S/N 7070501)

Запчасти Case 750 (132) - R20141 TRACK CARRIER ROLLER, TRACK CARRIER ROLLER, (USED BEFORE TRAC. S/N 7070501) (04) - UNDERCARRIAGE

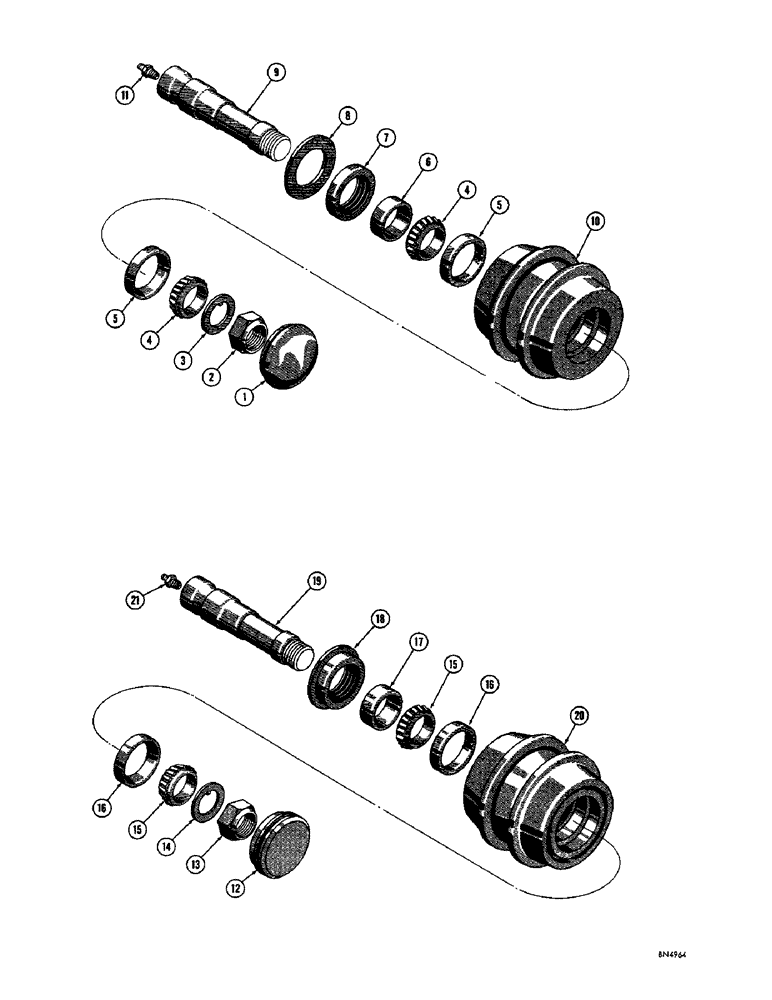

Схема запчастей Case 750 - (132) - R20141 TRACK CARRIER ROLLER, TRACK CARRIER ROLLER, (USED BEFORE TRAC. S/N 7070501) (04) - UNDERCARRIAGE
19
13
12
9
14
1
15
6
17
4
16
7
20
8
2
5
3
10
15
21
16
18
5
11
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R20141

ROLLER - track carrier (Order D31809 or D36354 track carrier roller for service) See Fig. 134

4шт.

1

D32270

CYLINDER END CAP

CAP - carrier roller

1шт.

D31453

KIT

- carrier roller

1шт.

2

72183

NUT

- carrier roller

1шт.

3

R20132

WASHER

- keyed

1шт.

4

G57452

ROLLER BEARING

CONE - bearing

2шт.

5

G57451

BEARING, CUP

CUP - bearing

2шт.

6

70081

SPACER

- carrier roller

1шт.

7

40646

GASKET

SEAL - oil

1шт.

8

70086

SHIELD

- carrier roller

1шт.

9

R19944

X

SHAFT - carrier roller

1шт.

10

70080

HUB - carrier roller

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

1шт.

D31809

ROLLER

- track carrier (See D36354 track carrier roller for service option) See Fig. 134, D31809 (used on trac s/n, Serial Range: 7070501-7071538)

2-4шт.

D32609

KIT

- carrier roller, D31809 track (used on trac s/n, Serial Range: 7070501-7071538)

1шт.

12

D32270

CYLINDER END CAP

CAP - carrier roller, D31809 track (used on trac s/n, Serial Range: 7070501-7071538)

1шт.

13

72183

NUT

- carrier roller, D31809 track (used on trac s/n, Serial Range: 7070501-7071538)

1шт.

14

R20132

WASHER

- keyed, D31809 track carrier roller (used on trac s/n, Serial Range: 7070501-7071538)

1шт.

15

G57452

ROLLER BEARING

CONE - bearing, D31809 track carrier roller (used on trac s/n, Serial Range: 7070501-7071538)

2шт.

16

G57451

BEARING, CUP

CUP - bearing, D31809 track carrier roller (used on trac s/n, Serial Range: 7070501-7071538)

2шт.

17

D31806

BUSHING,34.92mm ID x 52.32mm OD x 19.43mm L

SPACER - D31809 track carrier roller (used on trac s/n, Serial Range: 7070501-7071538)

1шт.

18

D31322

SEAL

- oil, D31809 track carrier roller (used on trac s/n, Serial Range: 7070501-7071538)

1шт.

19

D31807

SHAFT

- c D31809 track carrier roller (used on trac s/n, Serial Range: 7070501-7071538)

1шт.

20

D31808

HUB - D31809 track carrier roller (used on trac s/n, Serial Range: 7070501-7071538)

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT, D31809 track carrier roller (used on trac s/n 7070501 to 7071538)

1шт.
