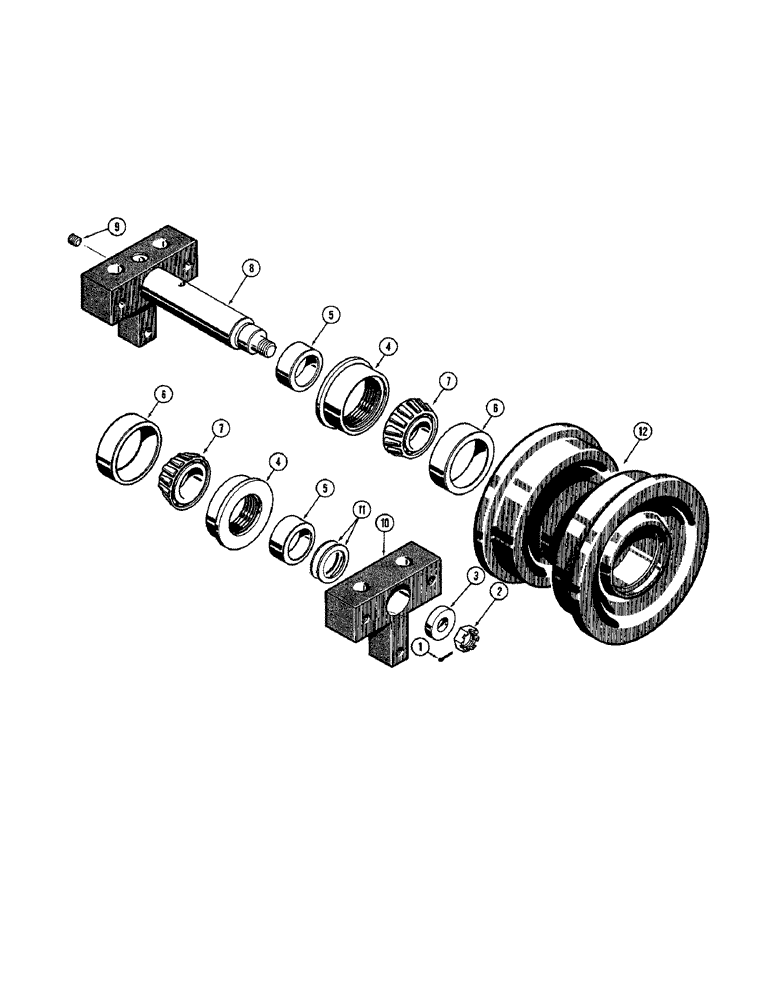

Запчасти Case 750 (130) - D31319 TRACK ROLLER, SINGLE FLANGE (04) - UNDERCARRIAGE

D31319

ROLLER

track, single flange, used before tractor serial no. 7071538, order D37344 track roller for service, see Figure 134

10шт.

D31455

KIT

track roller

1шт.

This kit also includes 1 P/N 74667 gasket which is not a component of either track roller assembly.

1шт.

1

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

2

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex., castle (3/4" - 16 NF)

1шт.

3

D31328

WASHER

- special

1шт.

4

D31322

SEAL

- oil

2шт.

5

D31323

BUSHING

SPACER - track roller

2шт.

6

A27734

BEARING CUP

CUP - bearing

2шт.

7

D31388

CONE

- bearing

2шт.

8

D31324

BLOCK AND SHAFT - track roller

1шт.

9

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

1шт.

10

D31327

BLOCK

- track roller, outer

1шт.

11

D31329

SHIM,.005" Thk

Track roller .005" Thk

1шт.

12

D31320

HUB - track roller, single flange

1шт.
