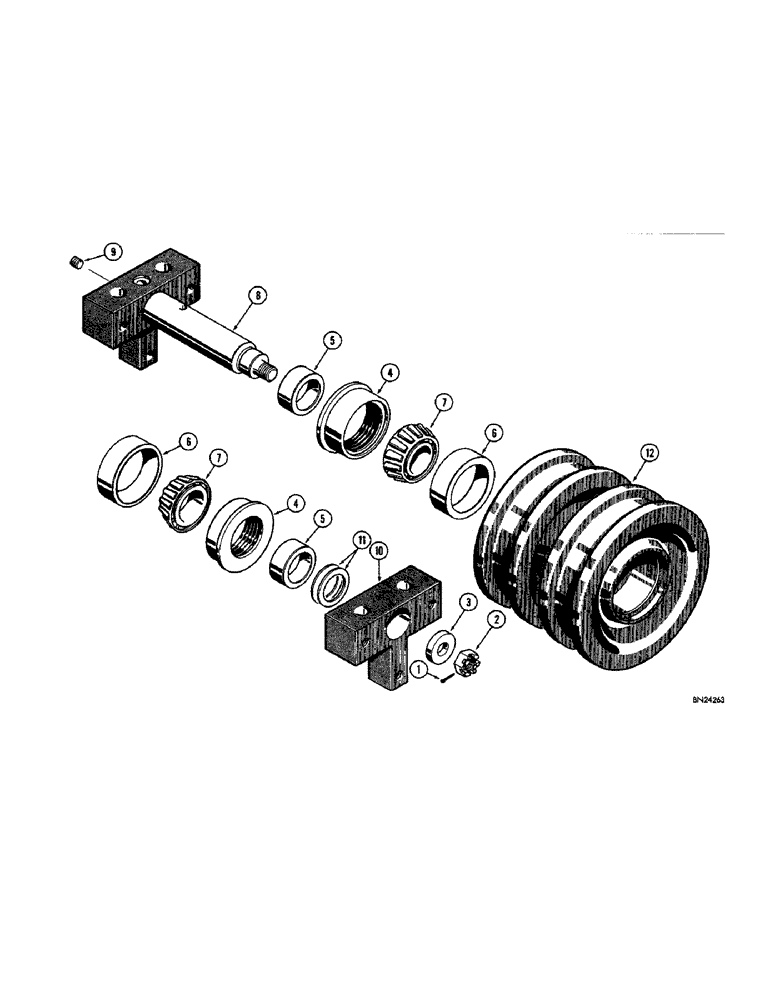

Запчасти Case 750 (130[1]) - D31331 TRACK ROLLER, DOUBLE FLANGE (04) - UNDERCARRIAGE

D31331

ROLLER

track, double flange, used before tractor S/N 7071538, order D37345 track roller for service, see Figure 134

4шт.

D31455

KIT

track roller

1шт.

This kit also includes 1 P/N 74667 gasket which is not a component of either track roller assembly.

1шт.

1

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

2

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex., castle (3/4" - 16 NF)

1шт.

3

D31328

WASHER

- special

1шт.

4

D31322

SEAL

- oil

2шт.

5

D31323

BUSHING

SPACER - track roller

2шт.

6

A27734

BEARING CUP

CUP - bearing

2шт.

7

D31388

CONE

- bearing

2шт.

8

D31324

BLOCK AND SHAFT - track roller

1шт.

9

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

1шт.

10

D31327

BLOCK

- track roller, outer

1шт.

11

D31329

SHIM,.005" Thk

Track roller .005" Thk

1шт.

12

D31332

HUB - track roller, double flange

1шт.
