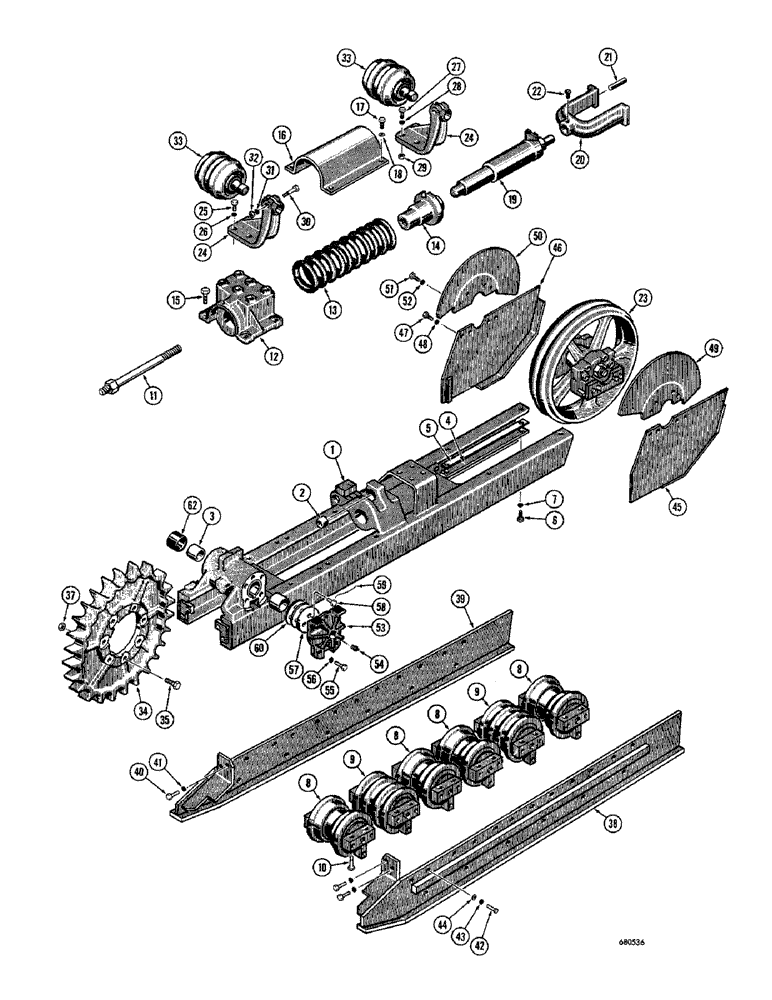

Запчасти Case 750 (126) - TRACK FRAME, RECOIL SYSTEM, AND ROCK GUARD - 6 ROLLER, USED ON TRAC. S/N 7071538 AND AFTER (04) - UNDERCARRIAGE

1

D38040

FRAME - track, RH

1шт.

D38039

FRAME - track, LH

1шт.

2

D30245

BUSHING

- track frame

1шт.

3

D36379

BUSHING,76.33mm ID x 82.58mm OD x 76.2mm L

BUSHING - track frame

2шт.

4

D30390

PLATE - wear

4шт.

5

D32050

SHIM,.0149" Thk

Wear plate .0149" Thk

1шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

7

92-8

LOCK WASHER,1/2"

8шт.

8

D37344

ROLLER

- track, single flange (Parts list Fig. 134)

8шт.

9

D37345

ROLLER - track, double flange (Parts list Fig. 134)

4шт.

10

R18182

BOLT - place (When stock is exhausted, order 14-1248 bolt for service)

48шт.

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4" - 16 NF x 3"

48шт.

D30387

SPRING ASSEMBLY - recoil

2шт.

11

R16457

BOLT - recoil spring

1шт.

12

D30389

HOUSING - recoil spring

1шт.

13

D32739

SPRING - recoil

1шт.

14

D30388

SLEEVE - recoil spring

1шт.

15

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

HHCS - 3/4" - 10 NC x 2-3/4"

8шт.

16

D30386

COVER - recoil spring

2шт.

17

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

18

195-33

WASHER,1/2"

- flat () 1/2"

8шт.

19

D36732

ADJUSTER

TRACK ADJUSTER - hydraulic (Parts list Fig. 136)

2шт.

20

D30364

YOKE

- front idler wheel

2шт.

21

R16453

PIN

- dowel, 5/8" dia. x 1-1/2"

2шт.

22

181-275

SET SCREW,Sq Hd, 1/2"-13 x 1"

SHSS - 1/2" - 13 NC x 1"

2шт.

23

D12098

FRONT IDLER

AND BRACKET - RH (Parts list Fig. 136)

1шт.

D12097

FRONT IDLER

AND BRACKET - LH (Parts list Fig. 136)

1шт.

24

D31305

BRACKET - track carrier roller, RH

2шт.

D31304

BRACKET - track carrier roller, LH

2шт.

25

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

27

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

8шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

29

25-1010

NUT,5/8"-11, G5

8шт.

30

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

31

92-8

LOCK WASHER,1/2"

4шт.

32

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

33

D36354

ROLLER

- track carrier (Parts list Fig. 134)

4шт.

34

D31746

SPROCKET - drive

2шт.

35

70119

BOLT,Hex, 3/4" - 16 x 2.75", Gr 5

- sprocket to output shaft

14шт.

36

RESERVED

1шт.

37

232-46112

LOCK NUT,3/4"-16, GC

NUT - lock (3/4" - 16 NF)

14шт.

38

D30404

GUARD

- rock, RH

2шт.

39

D30403

GUARD - rock, LH

2шт.

40

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

6шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

42

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 1-1/4"

72шт.

43

92-8

LOCK WASHER,1/2"

72шт.

44

195-33

WASHER,1/2"

- flat () 1/2"

72шт.

45

D30410

GUARD - front idler, RH (Lower)

2шт.

46

D30409

O-RING

GUARD - front idler, LH (Lower)

2шт.

47

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

48

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

49

R15865

GUARD

- front idler, RH (Upper)

2шт.

50

R15864

GUARD - front idler, LH (Upper)

2шт.

51

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

16шт.

52

92-8

LOCK WASHER,1/2"

16шт.

53

R14099

COVER

- pivot shaft

2шт.

54

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

55

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

10шт.

56

92-8

LOCK WASHER,1/2"

10шт.

57

D45063

LARGE PLATE

PLATE - lock

2шт.

58

R13420

BOLT

- 5/8" - 18 NF x 1-3/4"

6шт.

59

R13538

ELECTRICAL WIRE

WIRE - tie

2шт.

60

R13087

SHIM,.031" Thk

Pivot shaft, If used .031" Thk

1шт.

61

D32334

HOSE

- pivot block to main frame

2шт.
