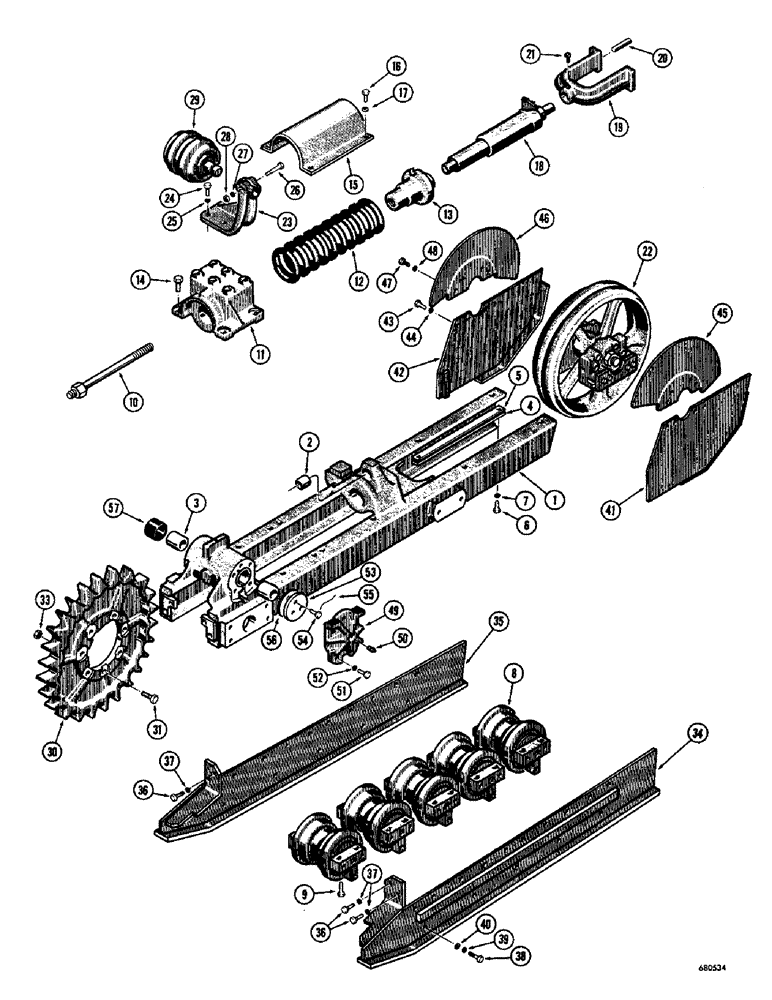

Запчасти Case 750 (118) - TRACK FRAME, RECOIL SYSTEM, AND ROCK GUARDS - 5 ROLLER, USED ON TRAC. S/N 7071538 AND AFTER (04) - UNDERCARRIAGE

1

D38034

FRAME - track, RH

1шт.

D38033

FRAME - track, LH

1шт.

2

D30245

BUSHING

- track frame

1шт.

3

D36379

BUSHING,76.33mm ID x 82.58mm OD x 76.2mm L

BUSHING - track frame

2шт.

4

D30390

PLATE - wear

4шт.

5

D32050

SHIM,.0149" Thk

Wear plate .0149" Thk

1шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

7

92-8

LOCK WASHER,1/2"

8шт.

8

D37344

ROLLER

- track, single flange (Parts list Fig. 134)

10шт.

9

R18182

BOLT - place (When stock is exhausted, order 14-1248 bolt for service)

40шт.

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4" - 16 NF x 3"

40шт.

D30387

SPRING ASSEMBLY - recoil

2шт.

10

R16457

BOLT - recoil spring

1шт.

11

D30389

HOUSING - recoil spring

1шт.

12

D32739

SPRING - recoil

1шт.

13

D30388

SLEEVE - recoil spring

1шт.

14

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

HHCS - 3/4" - 10 NC x 2-3/4"

8шт.

15

D30386

COVER - recoil spring

2шт.

16

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

17

195-33

WASHER,1/2"

- flat () 1/2"

8шт.

18

D36733

ADJUSTER

TRACK ADJUSTER - hydraulic (Parts list Fig. 136)

2шт.

19

D30364

YOKE

- front idler wheel

2шт.

20

R16453

PIN

- dowel, 5/8" dia. x 1-1/2"

2шт.

21

181-275

SET SCREW,Sq Hd, 1/2"-13 x 1"

SHSS - 1/2" - 13 NC x 1"

2шт.

22

D12098

FRONT IDLER

AND BRACKET - RH (Parts list Fig. 136)

1шт.

D12097

FRONT IDLER

AND BRACKET - LH (Parts list Fig. 136)

1шт.

23

D31305

BRACKET - track carrier roller, RH

1шт.

D31304

BRACKET - track carrier roller, LH

1шт.

24

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

26

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

29

D36354

ROLLER

- track carrier (Parts list Fig. 134)

2шт.

30

D30241

SPROCKET ASSY.

SPROCKET - drive (Used before tractor serial no. 7071626)

2шт.

D31746

SPROCKET - drive (Used on tractor serial no. 7071626 and after)

2шт.

NOTE: With D31746 sprocket use D37944 track.

1шт.

31

70119

BOLT,Hex, 3/4" - 16 x 2.75", Gr 5

- sprocket to output shaft

14шт.

32

RESERVED

1шт.

33

232-46112

LOCK NUT,3/4"-16, GC

NUT - lock (3/4" - 16 NF)

14шт.

34

D31342

GUARD - rock, RH

2шт.

35

D31341

GUARD - rock, LH

2шт.

36

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

6шт.

37

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

38

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 1-1/4"

60шт.

39

92-8

LOCK WASHER,1/2"

60шт.

40

195-33

WASHER,1/2"

- flat () 1/2"

60шт.

41

D30410

GUARD - front idler, RH (Lower)

2шт.

42

D30409

O-RING

GUARD - front idler, LH (Lower)

2шт.

43

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

45

R15865

GUARD

- front idler, RH (Upper)

2шт.

46

R15864

GUARD - front idler, LH (Upper)

2шт.

47

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

16шт.

48

92-8

LOCK WASHER,1/2"

16шт.

49

R14099

COVER

- pivot shaft

2шт.

50

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

51

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

10шт.

52

92-8

LOCK WASHER,1/2"

10шт.

53

D45063

LARGE PLATE

PLATE - lock

2шт.

54

R13420

BOLT

- 5/8" - 18 NF x 1-3/4"

6шт.

55

R13538

ELECTRICAL WIRE

WIRE - tie

2шт.

56

R13087

SHIM,.031" Thk

Pivot shaft .031" Thk

1шт.

57

D32334

HOSE

- pivot block to main frame

2шт.
