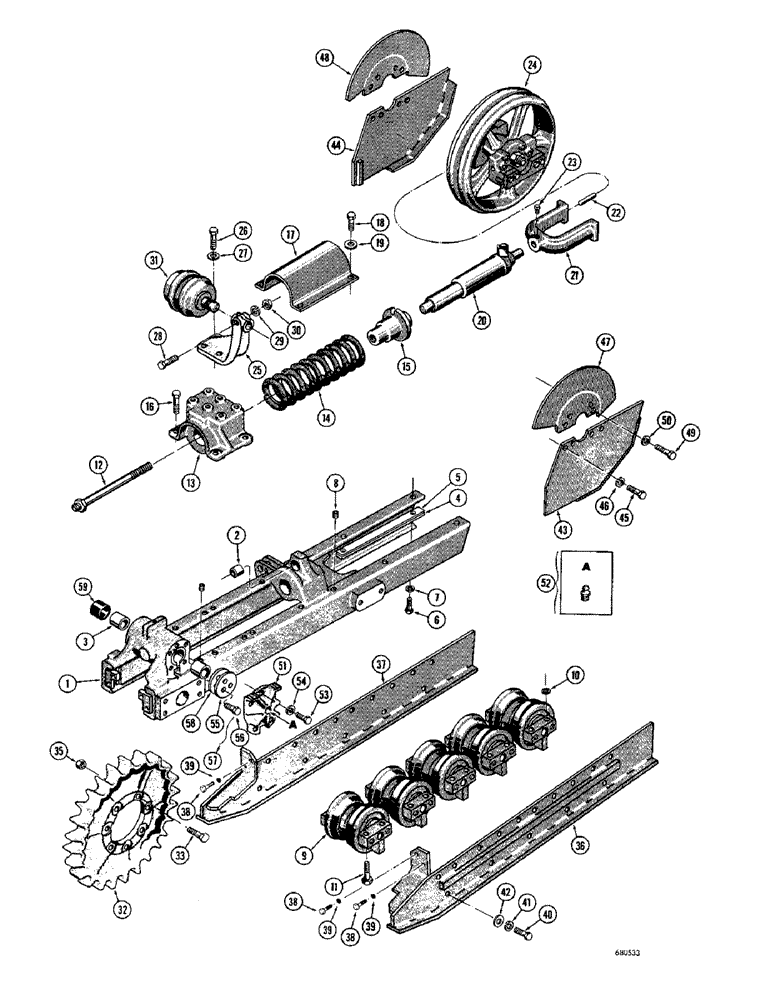

Запчасти Case 750 (114) - TRACK FRAME, RECOIL SYSTEM, AND ROCK GUARDS - 5 ROLLER, USED BEFORE TRAC. S/N 7071538 (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
D31298
FRAME - track, RH (Used before tractor serial no. 7071538)
1шт.
D31297
FUNNEL
FRAME - track, LH (Used before tractor serial no. 7071538)
1шт.
2
D30245
BUSHING
- track frame
1шт.
3
D36379
BUSHING,76.33mm ID x 82.58mm OD x 76.2mm L
BUSHING - track frame
2шт.
4
D30390
PLATE - wear
4шт.
5
D32050
SHIM,.0149" Thk
Wear plate .0149" Thk
1шт.
6
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
8шт.
7
92-8
LOCK WASHER,1/2"
8шт.
8
221-31
DRAIN PLUG,Sq Soc, 1/4"-18 NPTF
PLUG - pipe, square socket head (1/4" NPT)
4шт.
9
D31319
ROLLER
- track, single flange (Used before tractor serial no. 7071538) See D37344 for service option roller, Fig. 134
10шт.
D37344
ROLLER
- track, single flange (Used as service replacement before tractor serial no. 7071538) Parts list Fig. 134
10шт.
10
74667
GASKET
- track roller (Used with D31319 track rollers only)
10шт.
11
R18182
BOLT - place (When stock is exhausted, order 14-1248 bolt for service)
40шт.
14-1248
BOLT,Hex, 3/4" - 16 x 3", Gr 5
HHCS - 3/4" - 16 NF x 3"
40шт.
D30387
SPRING ASSEMBLY - recoil
2шт.
12
R16457
BOLT - recoil spring
1шт.
13
D30389
HOUSING - recoil spring
1шт.
14
R15886
SPRING - recoil (When stock is exhausted, order D32739 spring for service)
1шт.
D32739
SPRING - recoil
1шт.
15
D30388
SLEEVE - recoil spring
1шт.
16
13-1244
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
8шт.
17
D30386
COVER - recoil spring
2шт.
18
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
8шт.
19
195-33
WASHER,1/2"
- flat, 1/2"
8шт.
20
D31301
TRACK ADJUSTER - hydraulic (Used before tractor serial no. 7071432) Order D36733 track adjuster for service (Parts list Fig. 136)
2шт.
D36733
ADJUSTER
TRACK ADJUSTER - hydraulic (Used on tractor serial no. 7071432 and after) Parts list Fig. 136
2шт.
21
D30364
YOKE
- front idler wheel
2шт.
22
R16453
PIN
- dowel, 5/8" dia. x 1-1/2"
2шт.
23
181-275
SET SCREW,Sq Hd, 1/2"-13 x 1"
SHSS - 1/2" - 13 NC x 1"
2шт.
24
D12098
FRONT IDLER
AND BRACKET - RH (Parts list Fig. 136)
1шт.
D12097
FRONT IDLER
AND BRACKET - LH (Parts list Fig. 136)
1шт.
25
D31305
BRACKET - track carrier roller, RH
1шт.
D31304
BRACKET - track carrier roller, LH
1шт.
26
13-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd
8шт.
28
13-852
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
2шт.
29
92-8
LOCK WASHER,1/2"
2шт.
30
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
2шт.
31
D31809
ROLLER
- track carrier (Used before tractor serial no. 7071538) See D36354 for service option roller, Fig. 134)
2шт.
D36354
ROLLER
- track carrier (Used as service replacement before tractor serial no. 7071538) Parts list Fig. 134
2шт.
32
D30241
SPROCKET ASSY.
SPROCKET - drive
2шт.
33
70119
BOLT,Hex, 3/4" - 16 x 2.75", Gr 5
- sprocket to output shaft
14шт.
34
RESERVED
1шт.
35
232-46112
LOCK NUT,3/4"-16, GC
NUT - lock (3/4" - 16 NF)
14шт.
36
D31342
GUARD - rock, RH
2шт.
37
D31341
GUARD - rock, LH
2шт.
38
13-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd
6шт.
40
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS - 1/2" - 20 NF x 1-1/4"
60шт.
41
92-8
LOCK WASHER,1/2"
60шт.
42
195-33
WASHER,1/2"
- flat () 1/2"
60шт.
43
D30410
GUARD - front idler, RH (Lower)
2шт.
44
D30409
O-RING
GUARD - front idler, LH (Lower)
2шт.
45
13-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
16шт.
47
R15865
GUARD
- front idler, RH (Upper)
2шт.
48
R15864
GUARD - front idler, LH (Upper)
2шт.
49
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
16шт.
50
92-8
LOCK WASHER,1/2"
16шт.
51
R14099
COVER
- pivot shaft
2шт.
52
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
53
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS - 1/2" - 20 NF x 1-1/2"
10шт.
54
92-8
LOCK WASHER,1/2"
10шт.
55
D45063
LARGE PLATE
PLATE - lock
2шт.
56
R13420
BOLT
- 5/8" - 18 NF x 1-3/4"
6шт.
57
R13538
ELECTRICAL WIRE
WIRE - tie
2шт.
58
R13087
SHIM,.031" Thk
Pivot shaft .031" Thk
1шт.
59
D32334
HOSE
- pivot block to main frame
2шт.
Выбрано товаров: 68
