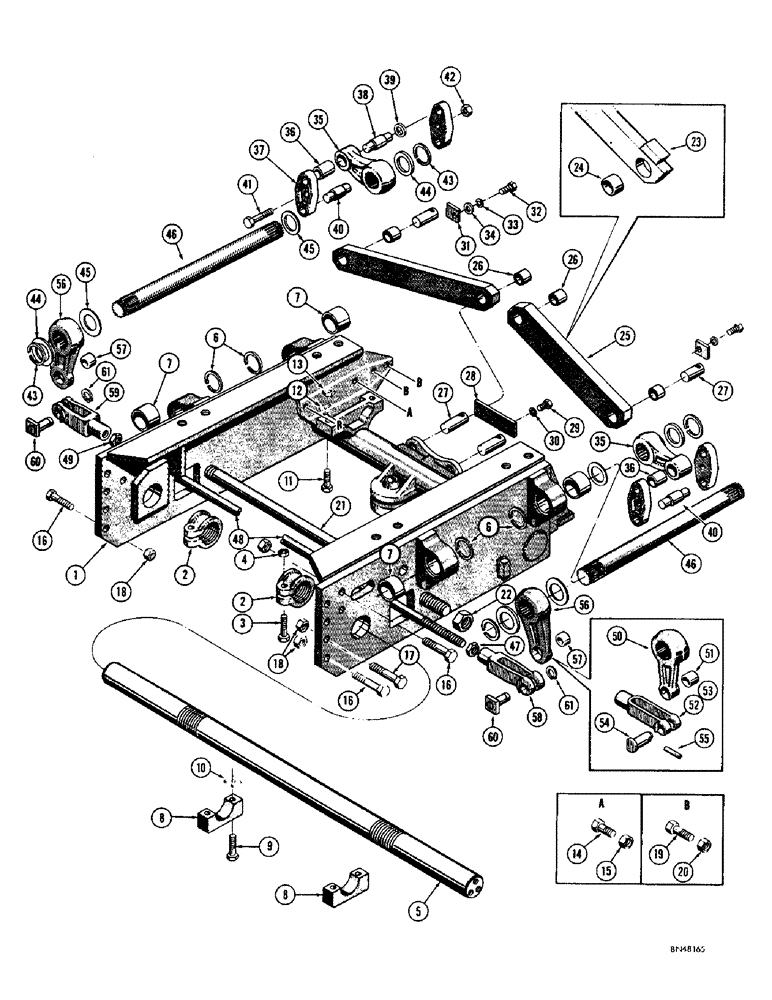

Запчасти Case 750 (110) - SUSPENSION SYSTEM (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
D30213
MAIN FRAME AND PIVOT SHAFT - (Used before tractor serial no. 7071538)
1шт.
D37269
MAIN FRAME AND PIVOT SHAFT - (Used on tractor serial no. 7071538 and after)
1шт.
2
R14205
CLAMP
- pivot shaft
2шт.
3
14-1256
BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5
HHCS - 3/4" - 16 NF x 3-1/2"
2шт.
4
25-1112
NUT,3/4"-16, G5
- hex. (3/4" - 16 NF)
2шт.
5
R14102
SHAFT
- pivot
1шт.
6
R20786
RING
- snap
4шт.
7
70091
BUSHING
- main frame
4шт.
8
D31787
CLAMP
- shaft
2шт.
9
13-1256
BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5
4шт.
10
D33982
BUSHING
SPACER - clamp to pivot shaft
2шт.
11
13-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
4шт.
12
D33982
BUSHING
SPACER - main frame
4шт.
13
230-41112
LOCK NUT,3/4"-10, GA
NUT - hex., lock (3/4" - 10 NC)
4шт.
15
230-41112
LOCK NUT,3/4"-10, GA
NUT - hex., lock (3/4" - 10 NC)
2шт.
16
D30918
BOLT
- special
4шт.
17
13-1660
BOLT,Hex, 1" - 8 x 3-3/4", Gr 5
8шт.
18
87779094
LOCK NUT,1"-8, GB
NUT, LOCK, 1"-8, GB
12шт.
19
D30593
BOLT
- special
6шт.
20
230-41114
LOCK NUT,7/8"-9, GA
NUT - hex., lock (7/8" - 9 NC)
6шт.
21
R21857
ROD
- compression
1шт.
22
25-1124
NUT,1 1/2"-12, G5
- hex. (1-1/2" - 12 NF)
4шт.
23
D31303
LEVER - guide, 5 roller track (Used before tractor serial no. 7071538)
2шт.
D30392
LEVER - guide, 6 roller track (Used before tractor serial no. 7071538)
2шт.
24
R13096
BUSHING
- lever
2шт.
25
R19203
ARM
LEVER - guide, 5 and 6 roller track (Used on tractor serial no. 7071538 and after)
2шт.
26
R13096
BUSHING
- lever (For service, use D36473 bushing)
2шт.
D36473
BUSHING,37.64mm ID x 50.65mm OD x 34.92mm L
- lever
2шт.
27
R18107
PIN
- guide lever
4шт.
28
R19123
PLATE
- center, pin retaining
1шт.
29
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2" - 20 NF x 1"
2шт.
30
92-8
LOCK WASHER,1/2"
2шт.
31
D30391
PLATE
- at track frame, pin retaining
2шт.
32
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
2шт.
33
92-8
LOCK WASHER,1/2"
2шт.
34
195-33
WASHER,1/2"
- flat, 1/2"
2шт.
35
D30244
LEVER
- front equalizer
2шт.
36
D30245
BUSHING
- lever
1шт.
37
D30247
LINK
- torsion
4шт.
38
D30246
BEARING
PIN - torsion link, upper
2шт.
39
D30248
WASHER
- torsion link, upper
4шт.
40
D30249
PIN
- torsion link, lower
2шт.
41
13-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
HHCS - 5/8" - 11 NC x 3-3/4"
2шт.
42
230-4117
LOCK NUT,7/16"-14, GA
NUT - hex., lock (5/8" - 11 NC)
2шт.
43
R18674
RING
- snap
4шт.
44
74298
WASHER
SPACER - equalizer lever, 7/64" thick
1шт.
45
R18559
SHIM,.062" Thk
Equalizer lever .062" Thk
1шт.
46
R15667
X
BAR - torsion
2шт.
47
25-1116
NUT,1"-14, G5
- hex. (1" - 14 NF) RH thread
1шт.
48
R19341
ROD
- equalizer
1шт.
49
129-330
NUT,1"-14, G5, LH
1шт.
50
NLS
NO LONGER SERVICED
LEVER - rear equalizer (Order 1 - D34029 lever, 1 - D34030 LH thread or D34031 RH thread yoke, 1 - D36998 yoke pin and 1 - D25279 retaining ring for service), used before trac. s.n 7070774
2шт.
51
70914
BUSHING
- lever, used before trac. s.n 7070774
1шт.
52
71676
YOKE - RH thread (Order 1 - R16592 yoke for service), used before trac. s.n 7070774
1шт.
53
71675
YOKE - LH thread (Order 1 - R16591 yoke for service), used before trac. s.n 7070774
1шт.
54
71673
PIN - yoke, used before trac. s.n 7070774
2шт.
55
138-138
LOCK PIN,1/4" x 1 1/2", Slotted
PIN, , Used before tractor S/N 7070774 1/4" x 1 1/2", Slotted
2шт.
56
D34029
LEVER
- rear equalizer, used on trac. s.n 7070774 & after
2шт.
57
D31140
BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L
- lever, used on trac. s.n 7070774 & after
1шт.
58
D34031
YOKE
- RH thread, used on trac. s.n 7070774 & after
1шт.
59
D34030
YOKE
- LH thread, used on trac. s.n 7070774 & after
1шт.
60
D36998
PIN ASSY.
PIN - yoke, used on trac. s.n 7070774 & after
2шт.
61
D25279
SNAP RING,M35, Int
RING - retaining, used on trac. s.n 7070774 & after
2шт.
Выбрано товаров: 64
