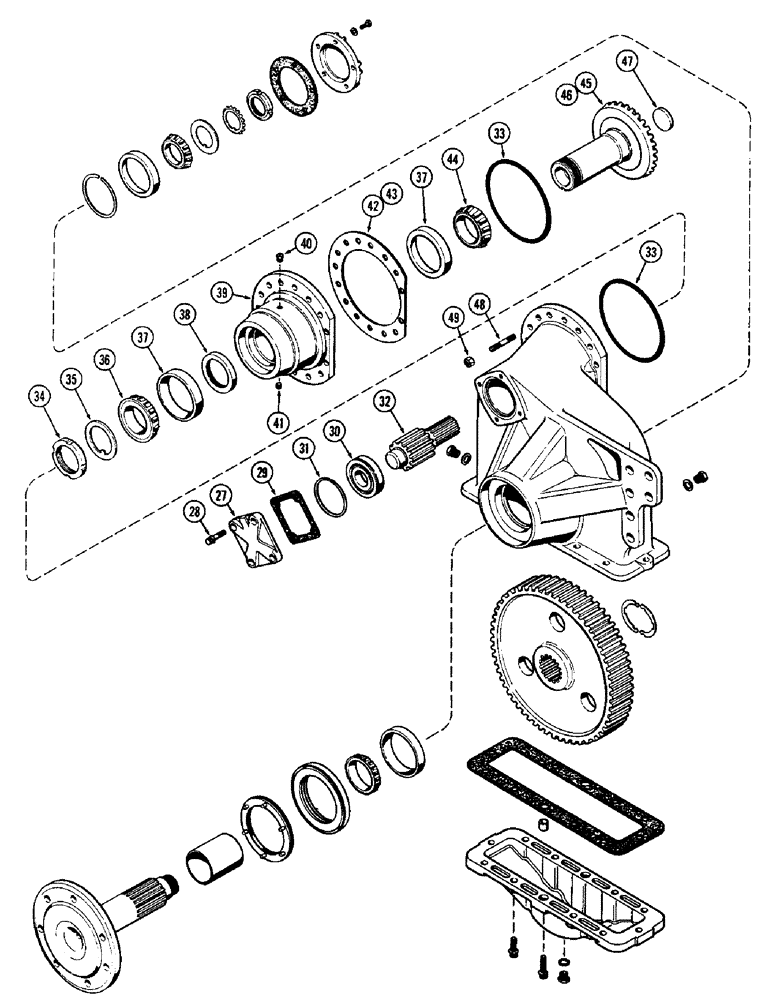

Запчасти Case 750 (089A) - FINAL DRIVE ASSY. (04) - UNDERCARRIAGE

A50305

TRANSMISSION & FINAL DRIVE ASSY. - complete (1st used trans. ser. no. 2129206)

1шт.

A50015

TRANSMISSION & FINAL DRIVE ASSY. - complete (Used prior to trans. ser. no. 2129206) (Order A50305)

1шт.

27

A50147

COVER

- bevel shaft

2шт.

28

166-44

12 PT SCREW,Flg, 3/8" - 16 x 7/8", Gr 8

BOLT - cover, 3/8 x 7/8" NC, 12 pt. hd.

8шт.

29

A50146

GASKET

- cover

2шт.

30

A50145

BEARING, ROLLER, CYL,45mm ID x 100mm OD x 25.01mm W

BEARING ASSY. - roller, outer ring & rollers

2шт.

REF# 30 & 31 ARE REVERSED. # 31 SHOULD BE ON THE OTHER SIDE OF # 30. #31 IS THE RACE FOR THE BEARING. 05.13.98 TWW

1шт.

31

A50144

ROLLER BEARING,44.99mm ID x 25mm W

RING - roller bearing, inner single rib

2шт.

32

A50143

SHAFT

- inner, bevel gear

2шт.

33

A50108

SEALING RING

RING - seal, carrier & housing

4шт.

34

A50167

NUT

- lock, bevel gear

2шт.

35

A50103

WASHER

- thrust, bearing

2шт.

36

A50102

ROLLER BEARING,3" ID x 1"

CONE - bearing (Timken #27684)

2шт.

37

A27146

BEARING, CUP,125.41mm OD x 19.84mm W

CUP - bearing (Timken #27620)

2шт.

38

A50419

OIL SEAL

- oil, bevel gear carrier (Replaces A50097)

2шт.

39

A50095

CARRIER

- bevel gear

2шт.

40

A50096

VALVE

- vacuum relief

2шт.

41

221-1840

PLUG

- (1/8" PT, sckt. hd.)

2шт.

42

A50106

SHIM,.005" Thk

Bevel gear carrier .005" Thk

1шт.

43

A50107

SHIM,.003" Thk

Bevel gear carrier .003" Thk

1шт.

44

A50100

ROLLER BEARING,82.55mm ID x 25.4mm W

CONE - bearing (Timken #27687)

2шт.

45

A50338

GEAR, BEVEL

GEAR & PINION SET - transmission (Matched set) (See note) (1st used trans. ser. no. 2129206)

2шт.

46

A50277

SHAFT

GEAR & PINION SET - transmission (Matched set) (See note) (Used prior to trans. ser. no. 2129206)

2шт.

47

A50099

PLUG

- cup, bevel gear

2шт.

48

A50021

STUD

- mounting, final drive

30шт.

49

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

30шт.
