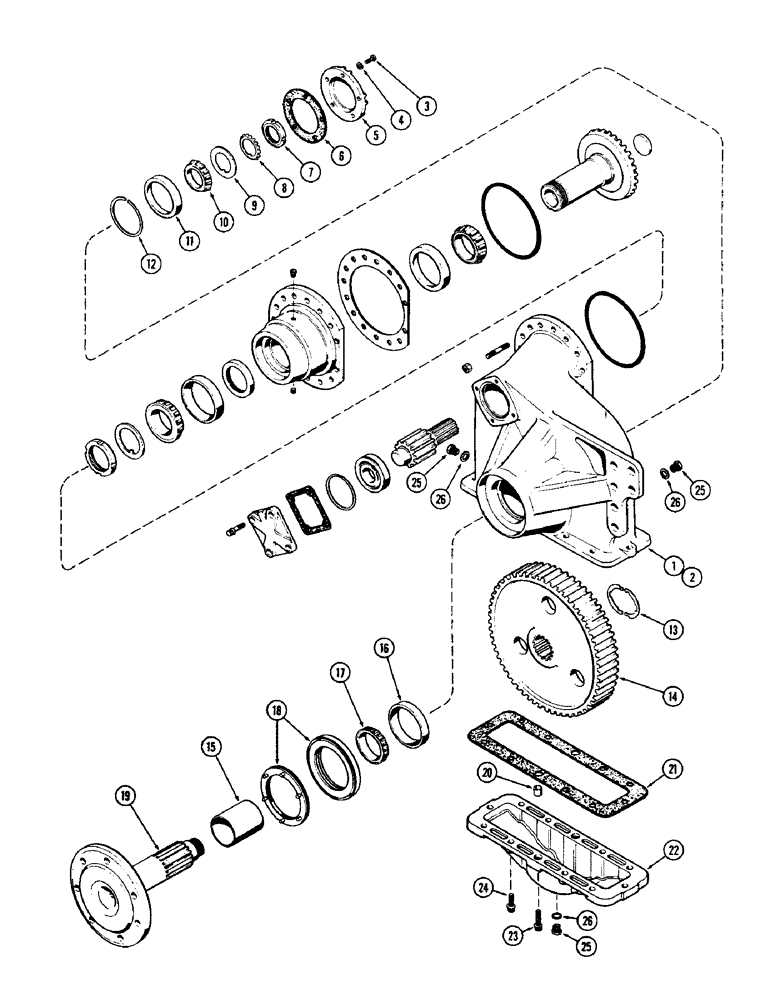

Запчасти Case 750 (088) - FINAL DRIVE ASSY. (04) - UNDERCARRIAGE

A50305

TRANSMISSION & FINAL DRIVE ASSY. - complete (1st used trans. ser. no. 2129206)

1шт.

A50015

TRANSMISSION & FINAL DRIVE ASSY. - complete (Used prior to trans. ser. no. 2129206) (Order A50305)

1шт.

A50130

DRIVE ASSY.

- final, right hand

1шт.

A50131

DRIVE

ASSY. - final, left hand

1шт.

1

A50298

HOUSING

- final drive, right hand (1st used trans. ser. no. 2600903)

1шт.

1

A50128

SPARE PART

HOUSING - final drive, right hand (Used prior to trans. ser. no. 2600903)

1шт.

2

A50299

HOUSING

- final drive, left hand (1st used trans. ser. no. 2600903)

1шт.

2

A50129

SPARE PART

HOUSING - final drive, left hand (Used prior to trans. ser. no. 2600903)

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

5шт.

4

92-6

LOCK WASHER,3/8"

5шт.

5

A50140

COVER

- final drive shaft

1шт.

6

A50139

GASKET

- cover

1шт.

7

54-1012

NUT

- lock, final drive shaft

1шт.

8

192-363

LOCK WASHER,Type TW-112

WASHER - lock, final drive shaft nut

1шт.

9

A50136

WASHER

- thrust, bearing

1шт.

10

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE - bearing (Timken #395)

1шт.

11

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing (Timken #394A)

1шт.

12

A50132

RING

- snap, bearing retaining

1шт.

13

CASA50163

RING

Snap, #325, Ext, final drive inter-locking

2шт.

14

A50134

GEAR

- final drive

1шт.

15

NLS

NO LONGER SERVICED

SPACER - sleeve (3-1/4 x 3-1/2 x 3-27/32") (1st used trans. ser. no. 2600903), Bushing

1шт.

15

A50162

BOLT

SLEEVE - spacer (3-1/4 x 3-1/2 x 3-63/64") (Used prior to trans. ser. no. 2600903)

1шт.

16

A15434

CUP

- bearing (Timken #47620) (1st used trans. ser. no. 2600903)

1шт.

16

A28134

BEARING CUP

CUP - bearing (Timken #492A) (Used prior to trans. ser. no. 2600903)

1шт.

17

T30649

ROLLER BEARING,3.25" ID x 1.3125"

CONE - bearing (Timken #47687) (1st used trans. ser. no. 2600903)

1шт.

17

40442

ROLLER BEARING,3.25" ID x 1.172"

CONE - bearing (Timken #495) (Used prior to trans. ser. no. 2600903)

1шт.

18

A50244

SEAL

- oil, final drive (See note page 89A)

1шт.

19

A50300

SHAFT

- sprocket, final drive (1st used trans. ser. no. 2600903)

1шт.

19

A50133

SHAFT - sprocket, final drive (Used prior to trans. ser. no. 2600903)

1шт.

20

A50011

SLEEVE

DOWEL - gear cover locating

1шт.

21

A50141

GASKET

- drive gear cover

1шт.

22

A50142

COVER

- drive gear

1шт.

23

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- cover, 1/2 x 1-1/2" NC, 12 pt. hd.

10шт.

24

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

BOLT - cover, 1/2 x 1-3/4" NC, 12 pt. hd.

2шт.

25

A50014

PLUG

- housing, fill & drain

2шт.

26

A27927

OIL PAN GASKET SET

- fill & drain plug

2шт.
