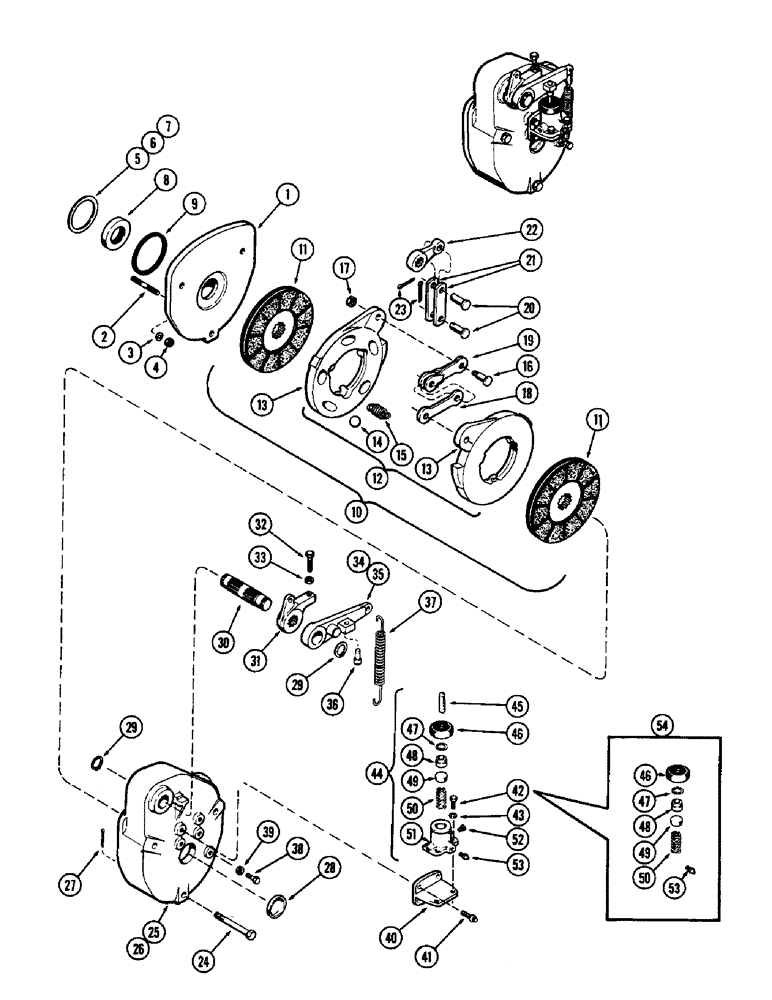

Запчасти Case 750 (086) - HYDRAULIC BRAKES (04) - UNDERCARRIAGE

A50305

TRANSMISSION & FINAL DRIVE ASSY. - complete (Transmission S/N 2129206 and after)

1шт.

A50015

TRANSMISSION & FINAL DRIVE ASSY. - complete (Prior transmission S/N 2129206) (Order A50305)

1шт.

1

A50184

FLANGE

PLATE - mtg., LH & RH brake

2шт.

2

A50241

STUD

- mtg., LH & RH brake plate

8шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

25-108

NUT,1/2"-13, G5

- hex., 1/2" NC

8шт.

5

A50061

SHIM,0.076mm Thk

(.003"), Pinion shaft bearing 0.076mm Thk

1шт.

6

A50062

SHIM,0.127mm Thk

(.005"), Pinion shaft bearing 0.127mm Thk

1шт.

7

A50063

SHIM,0.254mm Thk

(.010"), Pinion shaft bearing 0.254mm Thk

1шт.

8

A50418

OIL SEAL

- oil, LH & RH brake plate & pinion shaft (Replaces A50065)

2шт.

9

A50055

SEALING RING

RING - seal, LH & RH brake plate

2шт.

10

NSS

NOT SOLD SEPARAT

BRAKE ASSY. - double disc, LH & RH

2шт.

11

A50117

BRAKE DISC

DISC - double, brake (Bonded)

2шт.

12

R18531

DISC

ACTUATOR ASSY. - brake

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - actuator, brake (Order R18531)

2шт.

14

211-19

BALL,7/8" Dia

- actuator plate (7/8" dia. polished steel)

5шт.

15

A30897

SPRING

- actuator extension

3шт.

16

A30898

STEP BOLT

STUD - brake link

2шт.

17

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex. jam, 5/16" NF

2шт.

18

R18533

LINK

- single rib

1шт.

19

F77868

LINK

- yoke, actuating link

1шт.

20

R15370

PIN

- link, brake pull

4шт.

21

R15369

LINK

- brake pull

4шт.

22

R15372

LEVER

- brake link pull

2шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

24

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

6шт.

25

A50206

COVER

- brake, RH

1шт.

26

A50207

COVER

- brake, LH

1шт.

27

R14605

PIN

- cleaner, brake hsg. drain hole

4шт.

28

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, brake cover (Replaces A23654)

2шт.

29

B18208

SNAP RING,#100, Ext

brake actuating shaft #100, Ext

4шт.

30

R15373

SHAFT - brake actuating

2шт.

31

R17182

LEVER - adjusting, brake

2шт.

32

A50377

BOLT - 3/8 x 1-1/2" NC spec.

2шт.

33

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" NC hex.

2шт.

34

A50122

LEVER ASSY. - brake actuating, RH

1шт.

35

A50123

LEVER ASSY. - brake actuating, LH

1шт.

36

A24141

CUP - push rod, brake

1шт.

37

R15380

SPRING

- return, brake lever

2шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" NC hex.

2шт.

39

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

2шт.

40

A50119

BRACKET

- brake cylinder mounting

2шт.

41

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

BOLT - 3/8" x 2" 12 pt. head

8шт.

42

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

44

A50120

CYLINDER

ASSY. - hyd. brake, LH & RH

2шт.

45

R15269

ROD

- push, brake cylinder

1шт.

46

R16239

BOOT

- dust, cylinder

1шт.

47

A50172

RING

- snap, piston retaining

1шт.

48

A50174

PISTON - cylinder, brake

1шт.

49

A50175

RETAINER

CUP - piston

1шт.

50

A50173

COIL SPRING

SPRING - pressure, cylinder

1шт.

51

NSS

NOT SOLD SEPARAT

CYLINDER - brake (Order A50120)

1шт.

52

R15271

X

PLUG - port, cylinder

1шт.

53

R15262

SCREW

- bleeder, cylinder

1шт.

54

A50177

KIT

REPAIR KIT - brake cylinder

1шт.
