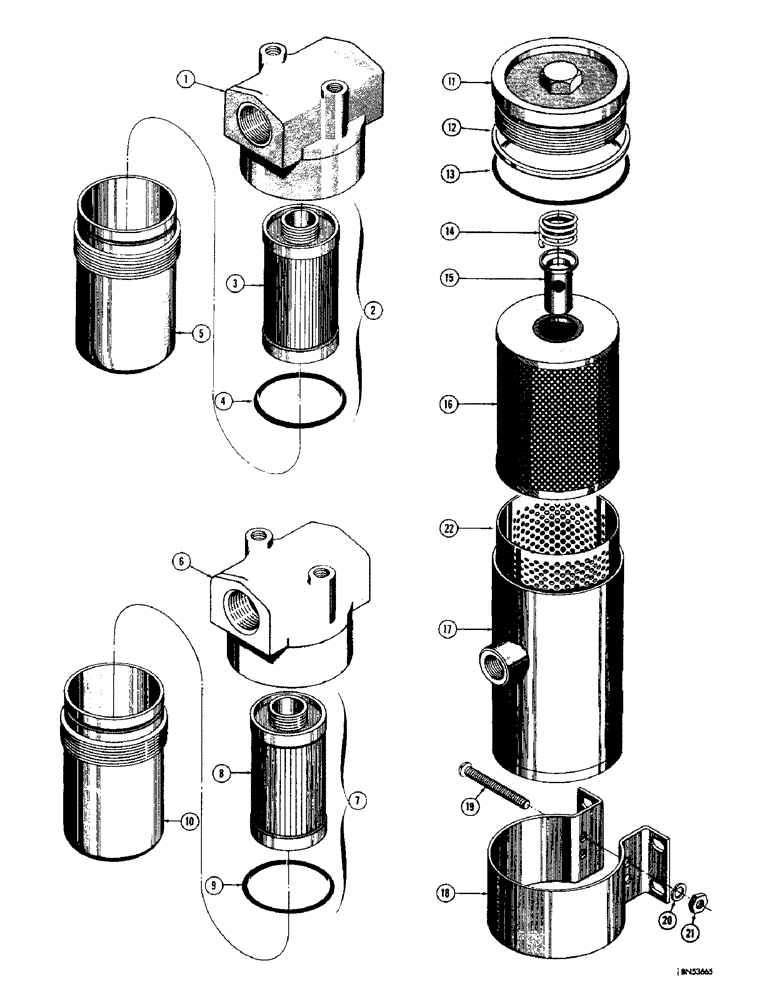

Запчасти Case 750 (108) - D30290 TRANSMISSION OIL FILTER (03) - TRANSMISSION

D30290

FILTER - transmission oil, transmission to torque converter (Used before tractor serial no. 7070557) Order D32618 filter for service

1шт.

1

D30291

HEAD - filter

1шт.

2

R4213

FILTER, ELEMENT

KIT - filter element

1шт.

3

NSS

NOT SOLD SEPARAT

SCREEN - filter

1шт.

4

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

5

D32618

X

HOUSING - filter

1шт.

D32618

X

FILTER - transmission oil, transmission to torque converter (Used on tractor serial no. 7070557 and after), D32618

1шт.

6

D33756

HEAD - filter, built in relief, D32618 trans. oil

1шт.

7

D32211

FILTER, ELEMENT

KIT - filter element, D32618 trans. oil

1шт.

8

NSS

NOT SOLD SEPARAT

SCREEN - D32618 trans. oil filter

1шт.

9

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "o" ring, D32618 trans. oil filter

1шт.

10

R20645

HOUSING

- D32618 trans. oil filter

1шт.

D31210

FILTER

- transmission oil

1шт.

11

D31214

CAP

- D31210 trans. oil filter

1шт.

12

D36095

BACK-UP RING

WASHER - backup, D31210 trans. oil filter

1шт.

13

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "o" ring, D31210 trans. oil filter

1шт.

14

D31212

SPRING

- valve retaining, D31210 trans. oil filter

1шт.

15

D37207

VALVE

- relief, D31210 trans. oil filter

1шт.

16

D31213

FILTER, ENGINE OIL

ELEMENT - D31210 trans. oil filter

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - D31210 trans. oil filter

1шт.

18

D31217

BRACKET

- filter mounting, D31210 trans. oil filter

1шт.

19

75-544

RHMS - 5/16" - 18 NC x 2-3/4", D31210 trans. oil filter

2шт.

20

92-5

LOCK WASHER,5/16"

D31210 trans. oil filter 5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), D31210 trans. oil filter

2шт.

22

D36643

SCREEN - deflector, D31210 trans. oil filter

1шт.
