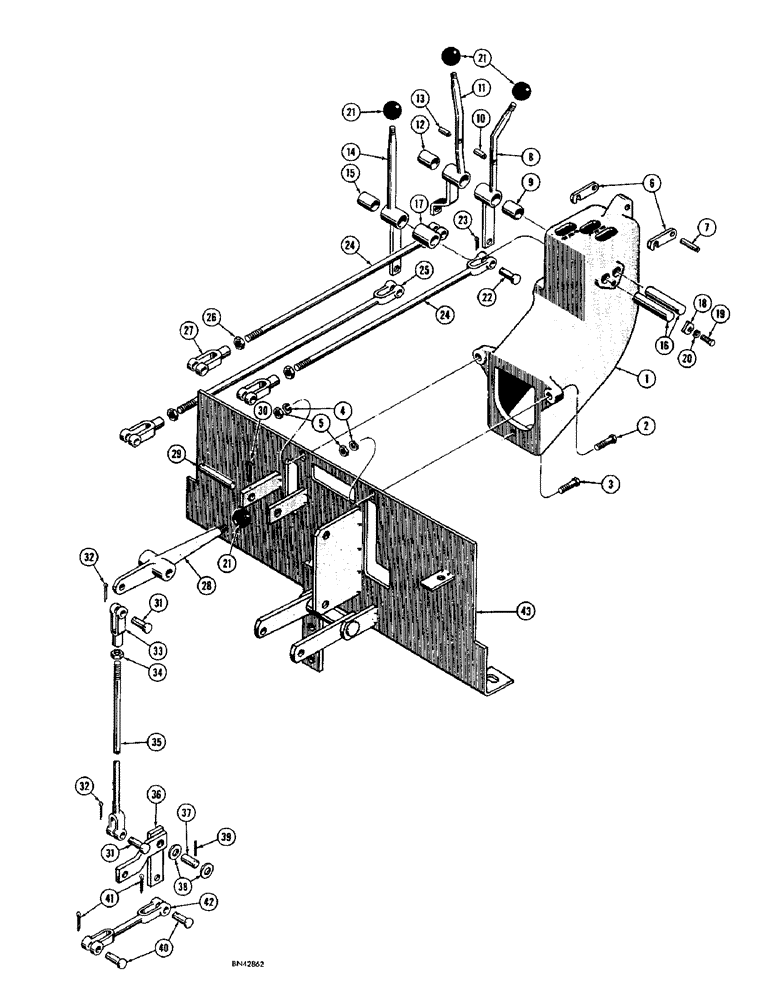

Запчасти Case 750 (098) - TRANSMISSION CONTROL TOWER (03) - TRANSMISSION

1

D30292

TOWER - control

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

6

D29979

LOCK - safety

2шт.

7

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

8

D30297

LEVER

- control, track speed (RH)

1шт.

9

D30299

BUSHING

- lever (Used before tractor serial no. 7107603) When stock is exhausted, order D40391 bushing for service

1шт.

D40391

BUSHING

- lever (Used on tractor serial no. 7107603 and after)

1шт.

10

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

11

D30304

LEVER - control, track speed (LH)

1шт.

12

D30299

BUSHING

- lever (Used before tractor serial no. 7107603) When stock is exhausted, order D40391 bushing for service

1шт.

D40391

BUSHING

- lever (Used on tractor serial no. 7107603 and after)

1шт.

13

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

14

D30307

LEVER - control, track forward and reverse

1шт.

15

D30299

BUSHING

- lever (Used before tractor serial no. 7107603) When stock is exhausted, order D40391 bushing for service

1шт.

D40391

BUSHING

- lever (Used on tractor serial no. 7107603 and after)

1шт.

16

D30311

SHAFT - lever pivot

2шт.

17

D30302

SLEEVE - rear pivot shaft

1шт.

18

D30312

LOCK - shaft

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

70213

KNOB

- control

4шт.

22

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

6шт.

23

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

24

D30313

ROD - control, track speed control levers to transmission control valve

2шт.

25

D30314

ROD - control, track forward and reverse control lever to transmission control valve

1шт.

26

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

3шт.

27

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - end, adjustable (5/16" - 24 NF)

3шт.

28

R13377

LEVER

- range control, two speed

1шт.

29

D29768

SHAFT

- range lever

1шт.

30

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

31

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

32

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

33

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end, adjustable (3/8" - 24 NF)

1шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

1шт.

35

D30315

ROD - range control

1шт.

36

D30316

LEVER - range, two speed

1шт.

37

D30320

SHAFT - range lever

1шт.

38

195-41

WASHER,5/8"

2шт.

39

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

40

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

41

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

42

D30319

ROD

- two speed shift

1шт.

43

D30293

PLATE - heel

1шт.
