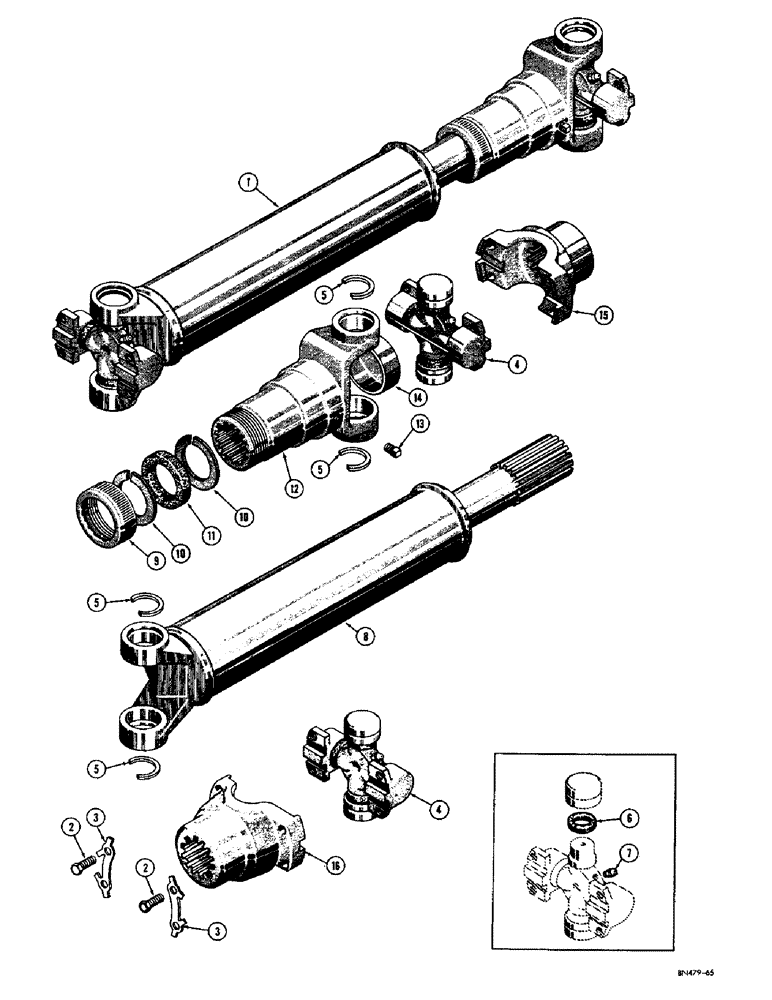

Запчасти Case 750 (094) - DRIVESHAFT (03) - TRANSMISSION

1

D31272

SHAFT

DRIVESHAFT -, Serial Range: engine-transmission

1шт.

D31437

U-JOINT SPIDER

SPIDER AND BEARING ASSEMBLY - driveshaft

2шт.

2

D31988

BOLT - special

4шт.

3

A17297

PLATE

- lock

2шт.

4

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING

1шт.

5

D31440

RING

- snap

2шт.

6

D32206

WASHER

- cork

4шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - straight grease, 1/4" NPT

1шт.

8

D31436

PIPE

TUBE - driveshaft

1шт.

9

A18388

CAP

- felt retaining

1шт.

10

D31438

X

WASHER - felt retaining

2шт.

11

A18390

WASHER

- felt

1шт.

D31435

LINKAGE YOKE

YOKE ASSEMBLY - driveshaft

1шт.

12

NSS

NOT SOLD SEPARAT

YOKE - driveshaft

1шт.

13

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT)

1шт.

14

D32594

CYLINDER END CAP

CAP - dust

1шт.

15

D31315

YOKE

- driveshaft, torque converter end

1шт.

16

A50090

FORK

YOKE - driveshaft, transmission end

1шт.
