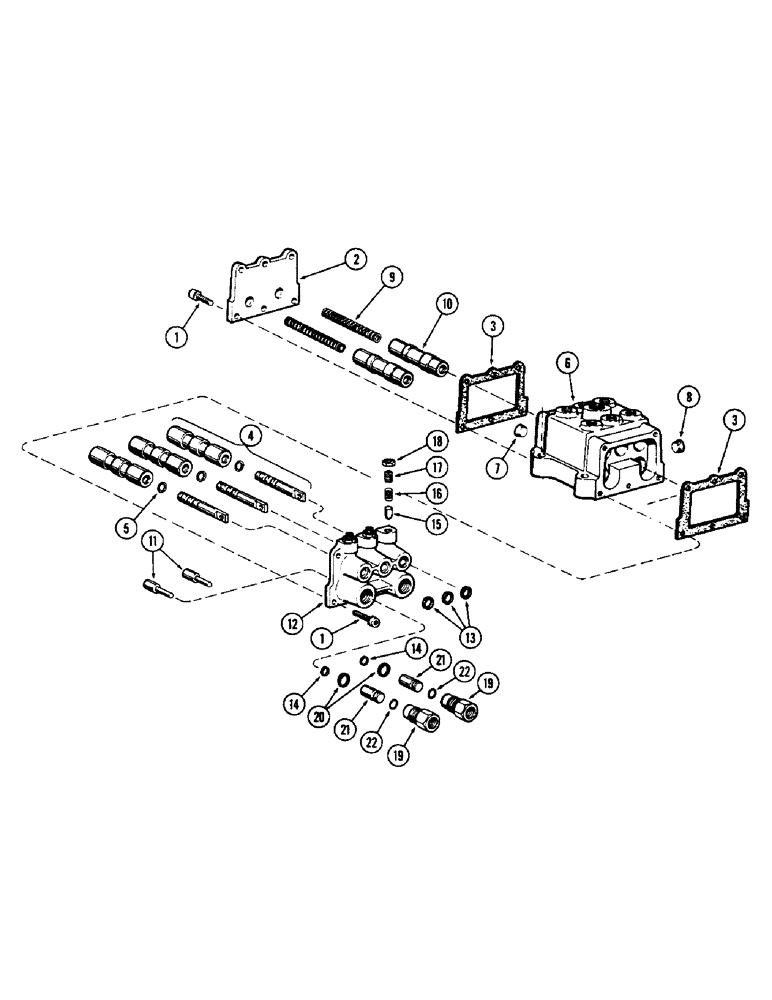

Запчасти Case 750 (092) - TRANSMISSION CONTROL VALVE (03) - TRANSMISSION

R20724

VALVE

ASSY. - control, transmission

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW - 1/4 x 2-5/8" NF Sems

11шт.

2

R21384

COVER

- valve, rear

1шт.

3

35665

GASKET

- cover, frt. & rear

2шт.

4

71146

HOSE

ASSY. - valve shift

3шт.

5

71144

RING

- snap, spool and rod

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

7

221-42

X,Sltd, 1/4" NPT

PLUG - pipe, slotted hd. less, 1/4" NPT

1шт.

8

221-1849

PLUG

- pipe, hex. socket head, 1/8" NPT

2шт.

9

71125

SPRING

- brake valve

2шт.

10

74916

SPOOL

ASSY. - brake valve

2шт.

11

71141

ROD

- push, brake valve

2шт.

12

R13941

COVER ASSY

. - valve front

1шт.

13

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- shaft (Replaces 35105)

3шт.

14

71133

PIN

- shaft

2шт.

15

71120

VALVE

DETENT - valve shift

3шт.

16

71119

SPRING

- detent

3шт.

17

178-655

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, 3/8" x 1/2" NC hex. socket hdless.

3шт.

18

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

19

72989

X

HOUSING ASSY. - brake valve piston

2шт.

20

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- housing (Replaces 35015)

2шт.

21

71129

X

PISTON - brake valve

2шт.

22

NLS

NO LONGER SERVICED

- quad

2шт.
