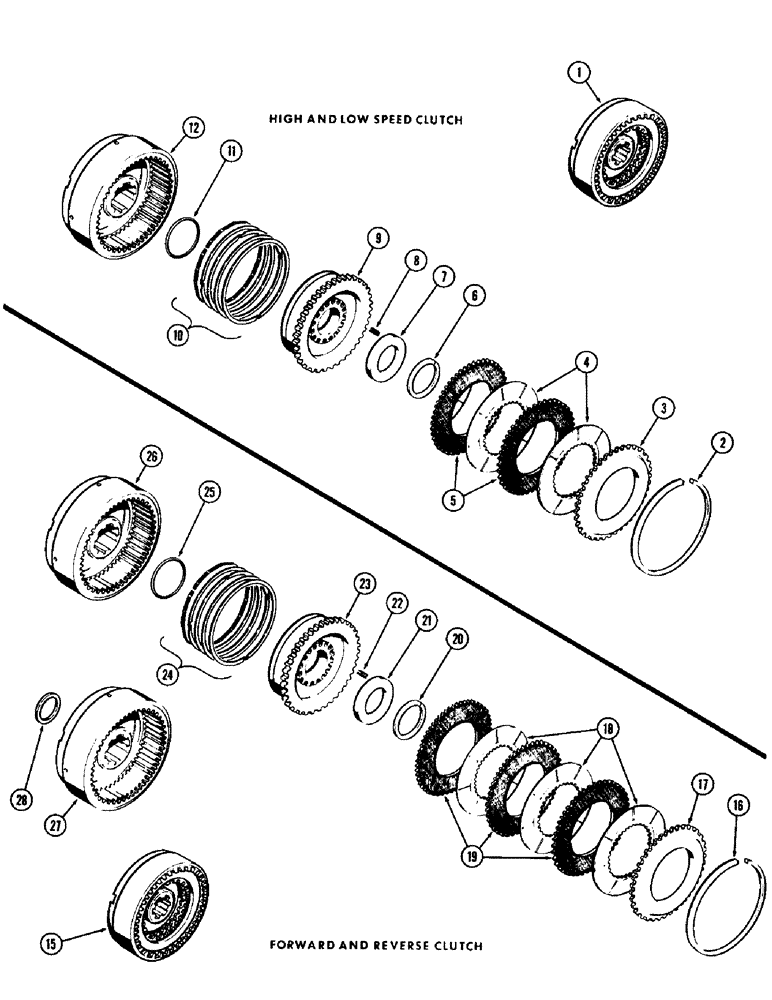

Запчасти Case 750 (084) - A50023 HIGH AND LOW SPEED CLUTCH, USED PRIOR TO TRANS. S/N 2129206 (03) - TRANSMISSION

1

A50023

SPARE PART

CLUTCH ASSY. - high and low speed

4шт.

2

30785

RING

- snap, backing plate

1шт.

3

A50030

PLATE

- backing

1шт.

4

A50029

PLATE

DISC - clutch (Sintered; inner tooth)

2шт.

5

A50028

PLATE

DISC - clutch (Steel; outer tooth)

2шт.

6

A27233

RING

- snap, spring retainer

1шт.

7

R11016

RETAINER

- spring

1шт.

8

R11015

SPRING

- clutch

18шт.

9

A50186

PISTON

- clutch

1шт.

10

A50027

RING

KIT - piston (Set of 4 rings & 1 expander)

1шт.

11

A50025

SEAL

"O" RING - sealing

1шт.

12

A50024

DRUM - clutch

1шт.

15

A50042

CLUTCH ASSY. - A50042 forward-revese clutch used prior trans /n 2129206

2шт.

16

30785

RING

- snap, backing plate, A50042 forward-revese clutch used prior trans /n 2129206

1шт.

17

A50030

PLATE

- backing, A50042 forward-revese clutch used prior trans /n 2129206

1шт.

18

A50029

PLATE

DISC - clutch (Sintered; inner tooth), A50042 forward-revese used prior trans /n 2129206

3шт.

19

A50028

PLATE

DISC - clutch (Steel; outer tooth), A50042 forward-revese used prior trans /n 2129206

3шт.

20

A27233

RING

- snap, retainer, A50042 forward-revese clutch used prior trans /n 2129206

1шт.

21

R11016

RETAINER

- spring, A50042 forward-revese clutch used prior trans /n 2129206

1шт.

22

R11015

SPRING

- A50042 forward-revese clutch used prior trans /n 2129206

18шт.

23

A50186

PISTON

- A50042 forward-revese clutch used prior trans /n 2129206

1шт.

24

A50027

RING

KIT - piston (Set of 4 rings & 1 expander), A50042 forward-revese clutch used prior trans /n 2129206

1шт.

25

A50025

SEAL

"O" RING - drum seal, A50042 forward-revese clutch used prior trans /n 2129206

1шт.

26

A50043

DRUM - clutch (Used transmission ser. no. 2009851 to S/N 2129206), A50042 forward-revese used prior trans /n 2129206

1шт.

27

A50149

DRUM HUB

DRUM - clutch (Used prior trans. serial no. 2009851), A50042 forward-revese used prior trans /n 2129206

1шт.

28

A50168

SPACER - clutch drum (Used w/A50149), A50042 forward-revese used prior trans /n 2129206

1шт.
