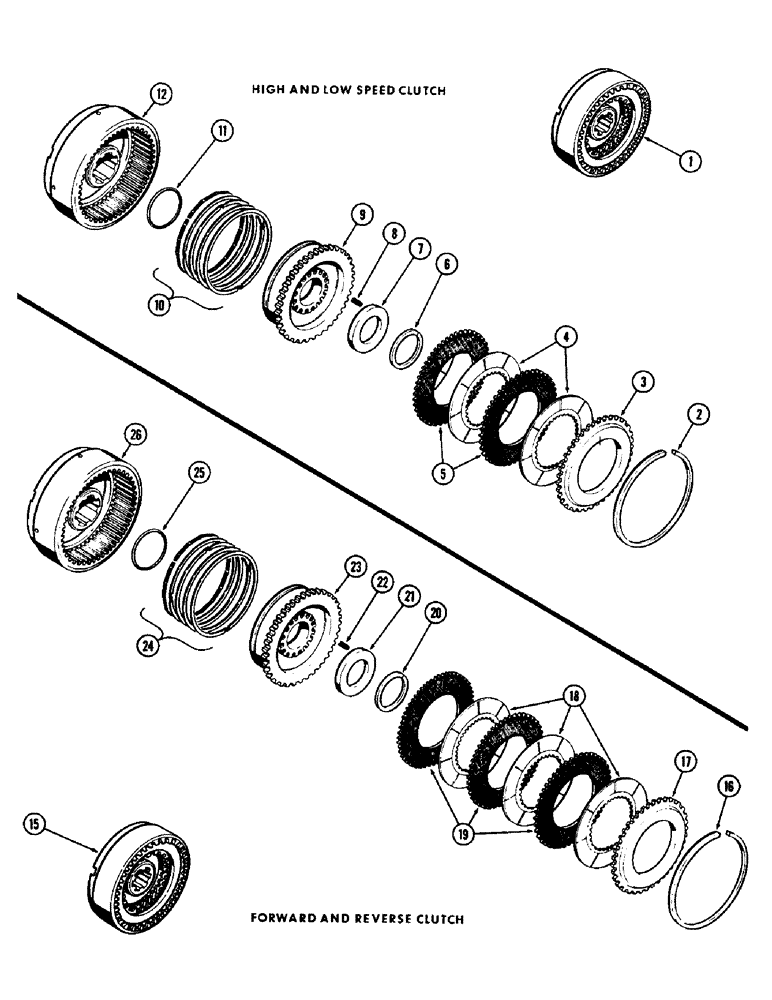

Запчасти Case 750 (082) - A50287 HIGH AND LOW SPEED CLUTCH, 1ST USED TRANS. SER. NO.2129206 (03) - TRANSMISSION

1

A50287

X

CLUTCH ASSY. - high and low speed

4шт.

2

30785

RING

- snap, backing plate

1шт.

3

A50030

PLATE

- backing, clutch

1шт.

4

A50029

PLATE

DISC - clutch (Sintered; inner tooth)

2шт.

5

A50028

PLATE

DISC - clutch (Steel; outer tooth)

2шт.

6

A27233

RING

- snap, spring retainer

1шт.

7

R11016

RETAINER

- spring

1шт.

8

R11015

SPRING

- clutch

18шт.

9

A50186

PISTON

- clutch

1шт.

10

A50027

RING

KIT - piston (Set of 4 rings & 1 expander)

1шт.

11

A50025

SEAL

"O" RING - piston sealing

1шт.

12

A50288

DRUM

- clutch

1шт.

15

A50289

CLUTCH ASSY. - forward and reverse range, 1st used trans. s/n 2129206

2шт.

16

30785

RING

- snap, backing plate, A50289 forward-revese clutch 1st used trans /n 2129206

1шт.

17

A50030

PLATE

- clutch backing, A50289 forward-revese 1st used trans /n 2129206

1шт.

18

A50029

PLATE

DISC - clutch (Sintered; inner tooth), A50289 forward-revese 1st used trans /n 2129206

3шт.

19

A50028

PLATE

DISC - clutch (Steel; outer tooth), A50289 forward-revese 1st used trans /n 2129206

3шт.

20

A27233

RING

- snap, retainer, A50289 forward-revese clutch 1st used trans /n 2129206

1шт.

21

R11016

RETAINER

- spring, A50289 forward-revese clutch 1st used trans /n 2129206

1шт.

22

R11015

SPRING

- A50289 forward-revese clutch 1st used trans /n 2129206

18шт.

23

A50186

PISTON

- A50289 forward-revese clutch 1st used trans /n 2129206

1шт.

24

A50027

RING

KIT - piston (Set of 4 rings & 1 expander), A50289 forward-revese clutch 1st used trans /n 2129206

1шт.

25

A50025

SEAL

"O" RING - piston seal, A50289 forward-revese clutch 1st used trans /n 2129206

1шт.

26

A50290

DRUM

- A50289 forward-revese clutch 1st used trans /n 2129206

1шт.
