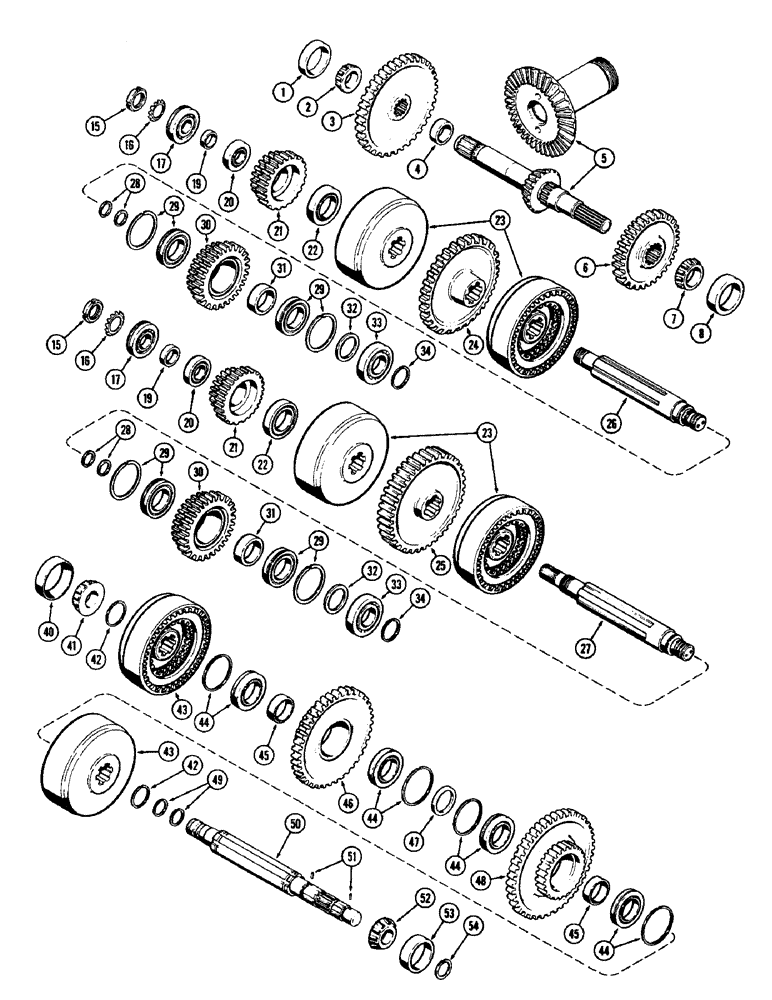

Запчасти Case 750 (080) - TRANSMISSION SHAFTS - CLUTCHES AND GEARS, USED PRIOR TO ENG. S/N 2129206 (03) - TRANSMISSION

A50015

TRANSMISSION & FINAL DRIVE ASSY. - complete (Order A50305)

1шт.

1

40427

BEARING CUP

- cone brg., LH & RH pinion shaft rear

2шт.

2

148723C91

ROLLER BEARING,1.3775" ID x 2.8351" OD x 0.6704"

CONE - brg., LH & RH pinion shaft rear

2шт.

3

32513

GEAR - driven, LH & RH low range

2шт.

4

A50178

SPACER - gear, LH & RH pinion shaft rear

2шт.

5

A50277

SHAFT

PINION & GEAR SET - trans. (Matched set of 1 pinion shaft and 1 bevel gear)

1шт.

6

31952

GEAR - driven, LH & RH high range

2шт.

7

R17219

ROLLER BEARING

CONE - brg., LH & RH pinion shaft front

2шт.

8

F62007

CUP

- cone brg., LH & RH pinion shaft front

2шт.

15

A50038

LOCK NUT

NUT - lock, LH & RH high low clutch shaft brg.

2шт.

16

G10949

LOCK WASHER

WASHER - lock, rear bearing nut

2шт.

17

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSY. - high-low LH & RH shaft rear

2шт.

18

A28153

RING

- snap, high-low clutch shaft brg.

1шт.

19

A50036

RING

SPACER - brg., LH & RH high-low clutch shaft rear

2шт.

20

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, outer LH & RH low driver gear

2шт.

21

R12495

GEAR - driver, LH & RH low clutch

2шт.

22

G10418

BEARING, BALL

BEARING - ball, inner LH & RH low driver gear

2шт.

23

A50023

SPARE PART

CLUTCH ASSY. - high & low (Repairs, Fig. 84)

4шт.

24

31938

GEAR - narrow driver, LH high-low clutch shaft

1шт.

25

31939

GEAR WHEEL

GEAR - wide driver, RH high-low clutch shaft

1шт.

26

A50040

SHAFT ASSY. - high & low clutch LH

1шт.

27

A50031

SHAFT

ASSY. - high & low clutch RH

1шт.

28

A50039

SEAL

RING - seal, LH & RH high-low clutch shaft

4шт.

29

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - high clutch driver gear

4шт.

30

R12436

GEAR - driver, LH & RH high clutch

2шт.

31

A50035

BUSHING

SPACER - brg., high clutch driver gear

2шт.

32

A50034

SPACER

- brg., LH & RH high-low shaft front

2шт.

33

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, LH & RH high-low shaft front

2шт.

34

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, high-low shaft front bearing

2шт.

40

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - brg. cone, frwd.-rev. clutch shaft rear

1шт.

41

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - brg., frwd.-rev. clutch shaft rear

1шт.

42

A50046

RING

- snap, forward & reverse clutch retaining

2шт.

43

A50042

CLUTCH ASSY. - forward & reverse (Repairs, Fig. 84)

2шт.

44

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - forward & reverse clutch

4шт.

45

A50047

SPACER

- brg., frwd. & rev. clutch

2шт.

46

R12343

GEAR WHEEL

GEAR - driver, forward clutch

1шт.

47

A50034

SPACER

- brg., frwd.-rev. clutch gear

1шт.

48

R12410

GEAR - driver, reverse clutch

1шт.

49

A50039

SEAL

RING - seal, frwd. rev. clutch shaft oil collector

2шт.

50

A50044

SHAFT ASSY. - forward & reverse clutch

1шт.

51

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, 5/32" x 7/16", Slotted

2шт.

52

R17219

ROLLER BEARING

CONE - brg., frwd.-rev. clutch shaft front

1шт.

53

F62007

CUP

- brg. cone, frwd.-rev. clutch shaft front

1шт.

54

A26946

RING

- snap, frwd.-rev. clutch sft. frt. brg.

1шт.
