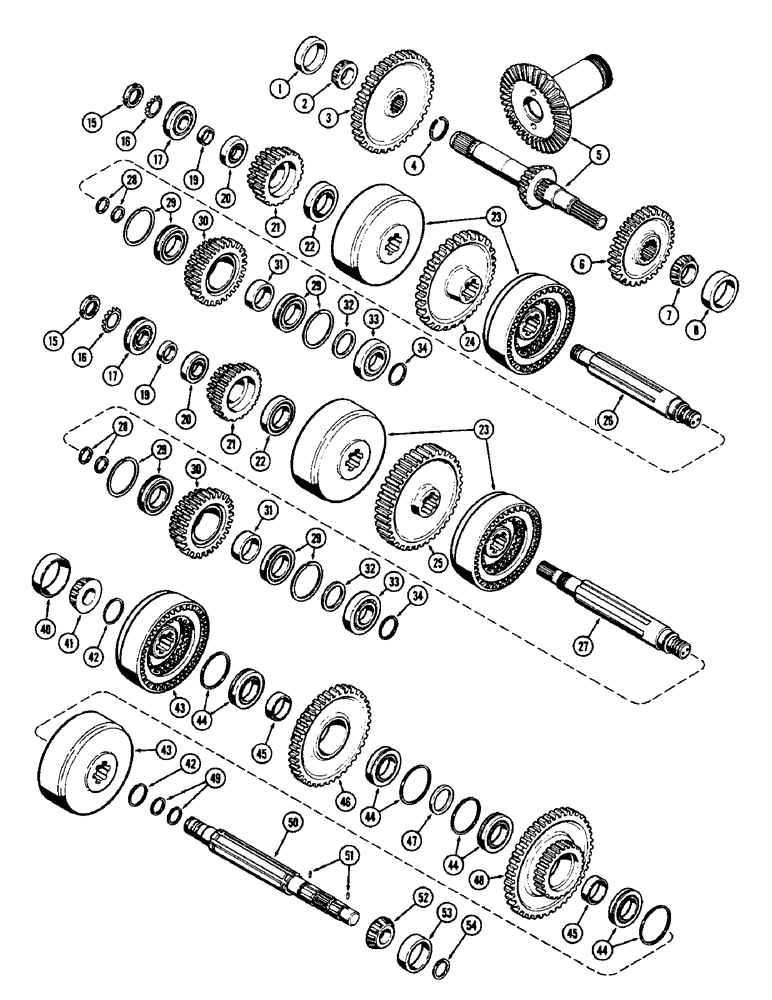

Запчасти Case 750 (078) - TRANSMISSION SHAFTS - CLUTCHES AND GEARS, 1ST USED TRANS. S/N 2129206 (03) - TRANSMISSION

A50305

TRANSMISSION & FINAL DRIVE ASSY. - complete

1шт.

1

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - brg. cone, LH & RH high-low clutch sft. rear

2шт.

2

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

CONE - brg., LH & RH high-low clutch sft. rear

2шт.

3

A50263

GEAR

- driven, LH & RH low clutch

2шт.

4

A27085

RING

- snap, low clutch driven gear

2шт.

5

A50338

GEAR, BEVEL

PINION & GEAR SET - trans. LH & RH (Matched set of 1 pinion shaft and 1 bevel gear)

2шт.

6

31952

GEAR - driven, high clutch LH & RH

2шт.

7

R17219

ROLLER BEARING

CONE - bearing, LH & RH pinion shaft frt.

2шт.

8

F62007

CUP

- brg. cone, LH & RH pinion shaft front

2шт.

15

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - lock, rear bearing

2шт.

16

G10949

LOCK WASHER

WASHER - lock, rear bearing

2шт.

17

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSY. - high-low clutch shaft rear

2шт.

18

A28153

RING

- snap, high-low clutch shaft brg. race

1шт.

19

A50036

RING

SPACER - brg., low clutch driver gear

2шт.

20

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch driver gear outer

2шт.

21

R12495

GEAR - driver, low clutch

2шт.

22

G10418

BEARING, BALL

BEARING - ball, low clutch gear inner

2шт.

23

A50287

X

CLUTCH ASSY. - high-low (Repairs, Fig. 82)

4шт.

24

31938

GEAR - narrow driver, LH high-low clutch shaft

1шт.

25

31939

GEAR WHEEL

GEAR - wide driver, RH high-low clutch shaft

1шт.

26

A50285

SHAFT

ASSY. - high-low clutch LH

1шт.

27

A50283

SHAFT ASSY. - high-low clutch RH

1шт.

28

A50039

SEAL

RING - seal, high-low clutch shaft oil collector

4шт.

29

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - high clutch gear

4шт.

30

R12436

GEAR - high clutch

2шт.

31

A50035

BUSHING

SPACER - brg., high clutch gear

2шт.

32

A50034

SPACER

- brg., high-low clutch shaft front

2шт.

33

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, high-low clutch shaft front

2шт.

34

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, high-low clutch shaft frt. brg.

2шт.

40

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - brg. cone, frwd. & rev. clutch shaft rear

1шт.

41

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - brg., frwd. & rev. clutch shaft rear

1шт.

42

A50046

RING

- snap, frwd. & rev. clutch retaining

2шт.

43

A50289

CLUTCH ASSY. - frwd. & rev. (Repairs, Fig. 82)

2шт.

44

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - frwd. & reverse clutch

4шт.

45

A50293

SPACER

- bearing, frwd. & reverse clutch

2шт.

46

A50291

X

GEAR - driver, forward clutch

1шт.

47

A50034

SPACER

- brg., frwd. & rev. clutch gear

1шт.

48

A50292

X

GEAR - driver, reverse clutch

1шт.

49

A50039

SEAL

RING - seal, clutch shaft oil collector

2шт.

50

A50256

SHAFT

ASSY. - frwd. & rev. clutch

1шт.

51

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, 5/32" x 7/16", Slotted

2шт.

52

A30076

ROLLER BEARING,1.625" ID x 0.963"

CONE - bearing, frwd. & rev. clutch shaft

1шт.

53

G15202

CUP

- bearing cone, clutch shaft

1шт.

54

R20786

RING

- snap, frwd. & rev. clutch shaft int.

1шт.
