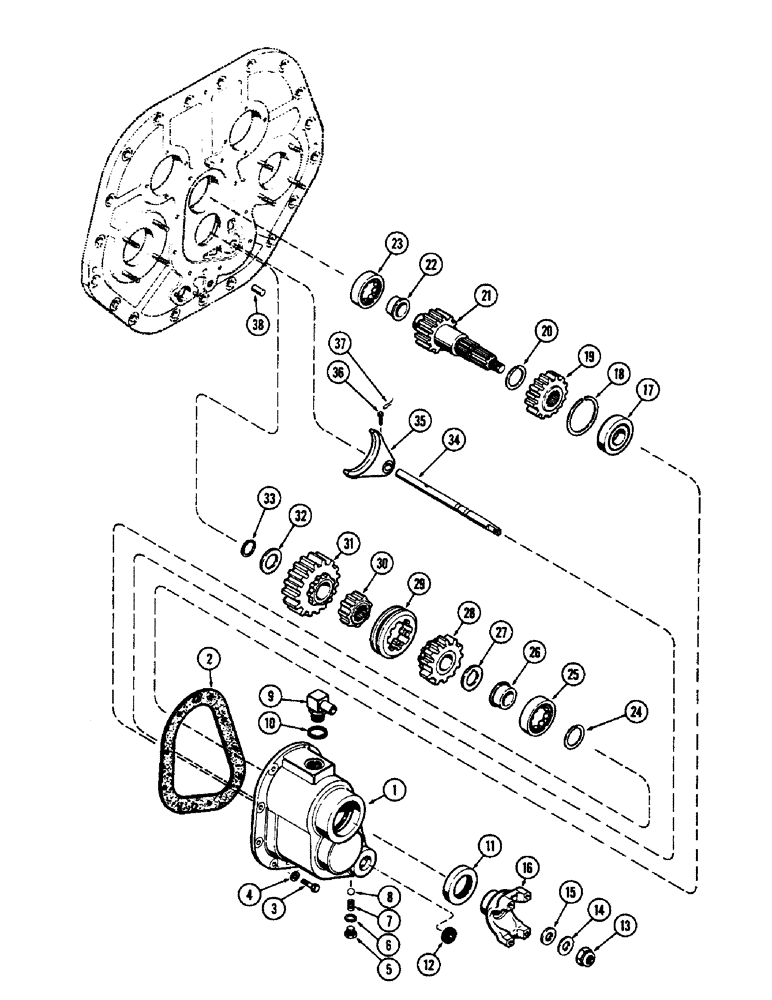

Запчасти Case 750 (076) - MECHANICAL RANGE SHIFT, USED PRIOR TO TRANS. SER. NO. 2129206 (03) - TRANSMISSION

A50015

TRANSMISSION & FINAL DRIVE ASSY. - complete (Order A50305)

1шт.

1

A50083

HOUSING - mechanical two speed shift

1шт.

2

A50091

GASKET

- shift housing

1шт.

3

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - cap, 3/8 x 1-1/4" NC, 12 pt. hd. sckt.

9шт.

4

A22317

WASHER

- hsg. bolt (Copper)

9шт.

5

A50094

PLUG,Screw, 5/8" - 18 x 0.377"

BOLT - range shaft detent

1шт.

6

A50093

SEALING WASHER

WASHER - detent bolt

1шт.

7

A50092

SPRING

- range detent

1шт.

8

211-13

BALL,1/2" Dia

- detent, steel chrome 1/2" Dia

1шт.

9

R20916

FITTING

ELBOW ASSY. - oil return, 90 degrees

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow, 5/8" OD x 15/32" ID x 5/64"

1шт.

11

A50085

OIL RESERVOIR

SEAL - oil, hsg. input shaft

1шт.

12

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, hsg. range selector shaft (Replaces G13827)

1шт.

13

131-37

LOCK NUT,3/4"-16

NUT - lock, 3/4" NF hex

1шт.

14

32601

WASHER

- flange retaining

1шт.

15

34395

SEALING WASHER

WASHER - flange seal

1шт.

16

A50090

FORK

FLANGE - universal shaft

1шт.

17

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

BEARING - ball, input shaft

1шт.

18

R13804

RING

- snap, ball brg. retainer

1шт.

19

A50089

GEAR WHEEL

GEAR - driver, input shaft

1шт.

20

R15364

SNAP RING,#152, 1.527", Ext

RING - snap, driver gear

1шт.

21

A50087

SHAFT - range drive gear

1шт.

22

A50088

BEARING CONE,1.378" ID x 0.8268"

RING - inner rib, roller bearing

1шт.

23

A50050

BEARING ASSY

. - roller, outer ring & rollers

1шт.

24

A50078

SNAP RING,#118, 1.121", Ext

RING - snap, roller bearing retainer

1шт.

25

A50084

ROLLER BEARING,2.8346" OD x 0.748"

BEARING ASSY. - roller, outer ring & rollers

1шт.

26

A50077

BEARING CONE,1.1811" ID x 0.748"

RING - inner rib, roller bearing

1шт.

27

A50076

WASHER

- thrust, range gear

1шт.

28

A50363

GEAR

- front driven range

1шт.

29

A50074

SLEEVE

- range selector

1шт.

30

A50073

X

COLLAR - range selector

1шт.

31

A50072

X

GEAR - driven, shift range

1шт.

32

A50071

WASHER

- thrust, range driven gear

1шт.

33

A26946

RING

- snap, thrust washer retainer

1шт.

34

A50079

SHAFT

- range selector

1шт.

35

A50080

SHAFT

FORK - range selector shaft

1шт.

36

A7044

SET SCREW,3/8" - 16 x 7/8"

- retainer, range selector fork

1шт.

37

391-701

ELECTRICAL WIRE

WIRE - tie, selector fork screw

1шт.

38

A50017

AXLE PIN

PIN - dowel, range hsg. locating

2шт.
