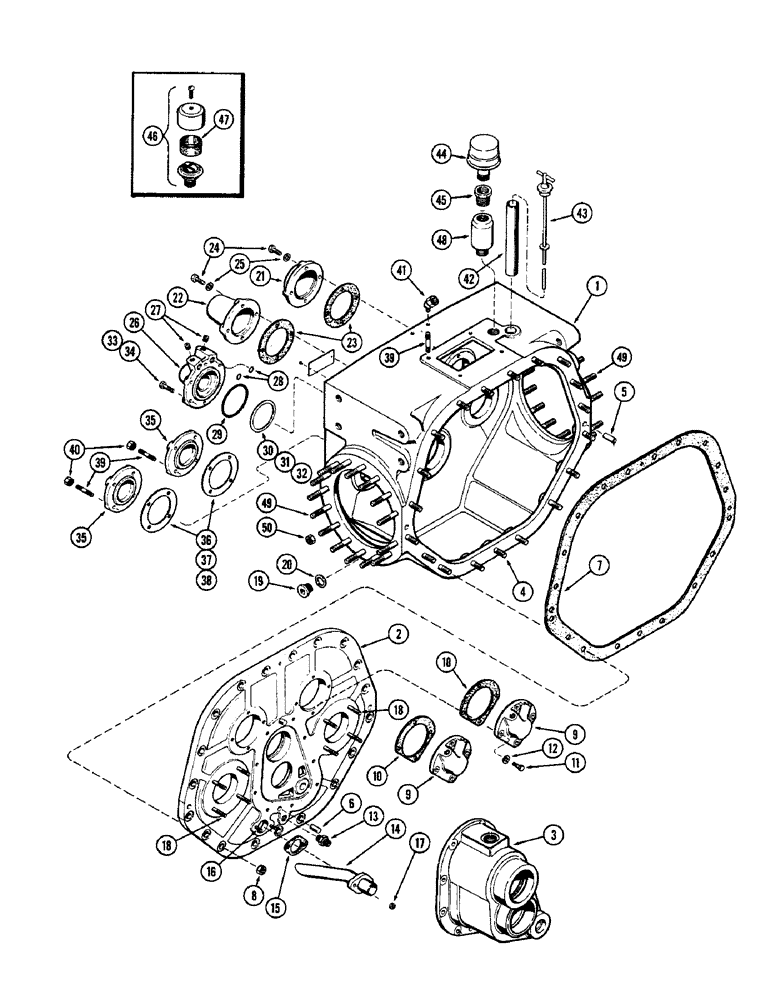

Запчасти Case 750 (070) - TRANSMISSION HOUSING AND COVERS, 1ST USED TRANS. SER. NO. 2129206 (03) - TRANSMISSION

A50305

TRANSMISSION & FINAL DRIVE ASSY. - complete

1шт.

1

A50303

HOUSING ASSY. - transmission

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - front housing (Order A50303)

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - two speed shift (Order A50303)

1шт.

4

A50249

STUD

- mtg., front cover

19шт.

5

A50247

DOWEL

PIN - dowel, front cover locating

2шт.

6

A50017

AXLE PIN

PIN - dowel, two speed shift hsg. locating

2шт.

7

A50246

GASKET

- front, Serial Range: cover-housing

1шт.

8

131-12

LOCK NUT,9/16"-12, GB

NUT, LOCK, 9/16"-12, GB

19шт.

9

A50057

COVER

- oil inlet, front

2шт.

10

A50056

GASKET

- front inlet cover

2шт.

11

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

8шт.

12

A22317

WASHER

- mtg. bolt, copper

8шт.

13

R20711

CONNECTOR, ELEC

CONNECTOR - oil return tube

1шт.

14

A50110

TUBE

SNORKEL - trans. oil suction

1шт.

15

A50109

GASKET

- snorkel tube

1шт.

16

A50362

STUD

- mtg., oil suction snorkel

2шт.

17

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

2шт.

18

A50241

STUD

- mounting, brake plate

8шт.

19

R14777

PLUG

- drain, transmission

1шт.

20

A27947

X

WASHER - drain plug

1шт.

21

A50060

COVER

- trans. LH rear high-low clutch

1шт.

22

A50059

COVER

- tran. RH rear high-low clutch

1шт.

23

A50058

GASKET

- rear LH & RH clutch cover

2шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex.

8шт.

25

A22317

WASHER

- cover mtg. bolt, copper

8шт.

26

A50054

COVER

- trans. rear frwd.-reverse clutch

1шт.

27

221-1840

PLUG

- pipe, 1/8" NPT hex. socket hd.

2шт.

28

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - rear cover bolt sealing

2шт.

29

A50055

SEALING RING

RING - rect., cover sealing

1шт.

30

A50053

SHIM,.003" Thk

Rear, Forward-reverse cover .003" Thk

1шт.

31

40590

SHIM

- rear frwd.-reverse cover (.005")

1шт.

32

40591

SHIM

- rear frwd. reverse cover (.010")

1шт.

33

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

35

A50271

COVER

- rear LH & RH pinion shaft

2шт.

36

A50272

SHIM,.005" Thk

Rear pinion shaft cover .005" Thk

1шт.

37

A50348

SHIM,.003" Thk

Rear pinion shaft cover .003" Thk

1шт.

38

CASA50347

SHIM

- rear pinion shaft cover (.010")

1шт.

39

A50019

NO LONGER SERVICED

STUD - rear pinion cover and valve mtg.

12шт.

40

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

8шт.

41

R22368

ELBOW

- valve hose, 45 degree street

2шт.

42

A50018

TUBE

- oil level gauge

1шт.

43

A50225

DIPSTICK

- oil level gauge

1шт.

44

A27173

BREATHER

ASSY. - transmission

1шт.

45

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

- pipe, reducer, 3/4 x 1/4"

1шт.

46

A9238

BREATHER

ASSY. - transmission (When stock on hand is exhausted order ref. 44 & 45)

1шт.

47

A10059

FILTER, ELEMENT

ELEMENT - breather

1шт.

48

A50116

BAFFLE

- transmission breather

1шт.

49

A50021

STUD

- mtg., LH & RH final drive

30шт.

50

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

30шт.
