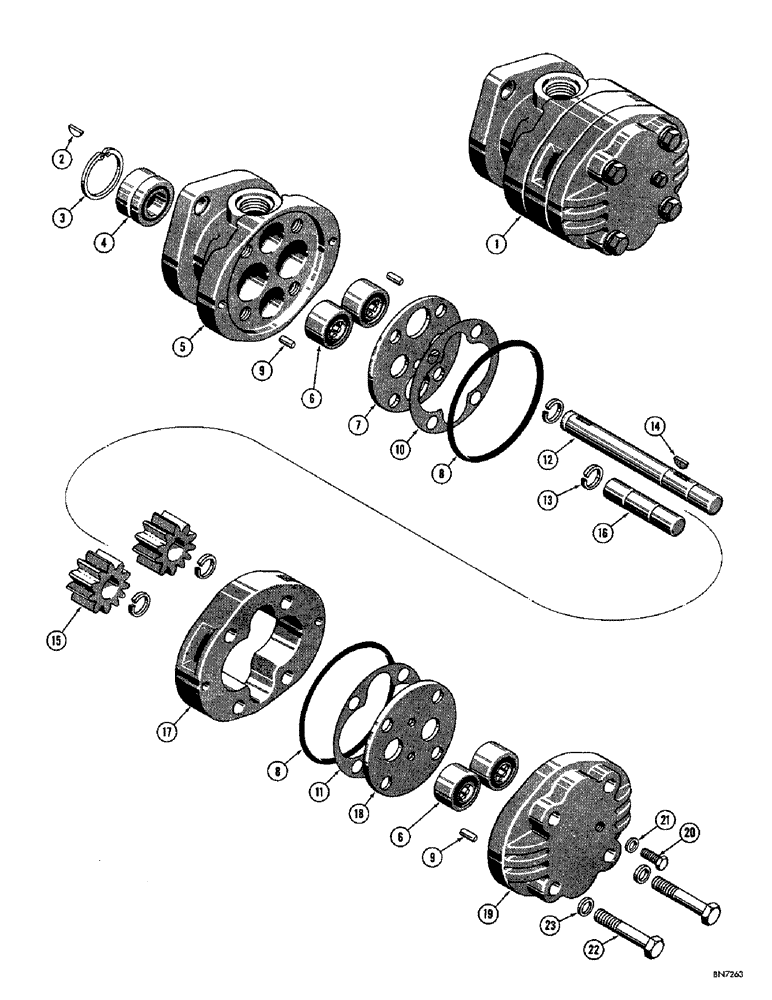

Запчасти Case 750 (068) - TORQUE CONVERTER PUMP (03) - TRANSMISSION

1

D32011

PUMP

- hydraulic, torque converter charging (Hydreco no. 1510L5B1)

1шт.

2

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

1шт.

3

D32085

RING

- snap

1шт.

4

D32084

BEARING

- cover, port end

1шт.

5

D32083

COVER - port end

1шт.

When ordering Ref, 5 and 19, the two bearings, P/N 17252, used with each, should be replaced.

1шт.

6

17252

BEARING

- driveshaft

4шт.

7

D32078

PLATE

- wear, port end

1шт.

8

17254

O-RING

SEAL - "o" ring

2шт.

9

17258

AXLE PIN

PIN - dowel

4шт.

10

17248

SHIM

- .001" thick (Amber)

1шт.

11

D32079

SHIM,.002" Thk

(Red) .002" Thk

1шт.

12

D32081

SHAFT

- drive

1шт.

13

17249

RING, SNAP

RING - snap, gear retaining

4шт.

14

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

15

D32077

GEAR WHEEL

GEAR - drive and driven

2шт.

16

D32080

SHAFT

- driven

1шт.

17

D32082

HOUSING - gear

1шт.

18

17245

PLATE

- wear, rear cover

1шт.

19

D32075

COVER - rear

1шт.

When ordering Ref, 5 and 19, the two bearings, P/N 17252, used with each, should be replaced.

1шт.

20

D32073

BOLT

- special, end play adjustment

1шт.

21

D32074

WASHER

- special

1шт.

22

114-311

BOLT

HHCS - 7/16" - 20 NF x 3"

4шт.

23

17260

LEVER

WASHER - special

4шт.
