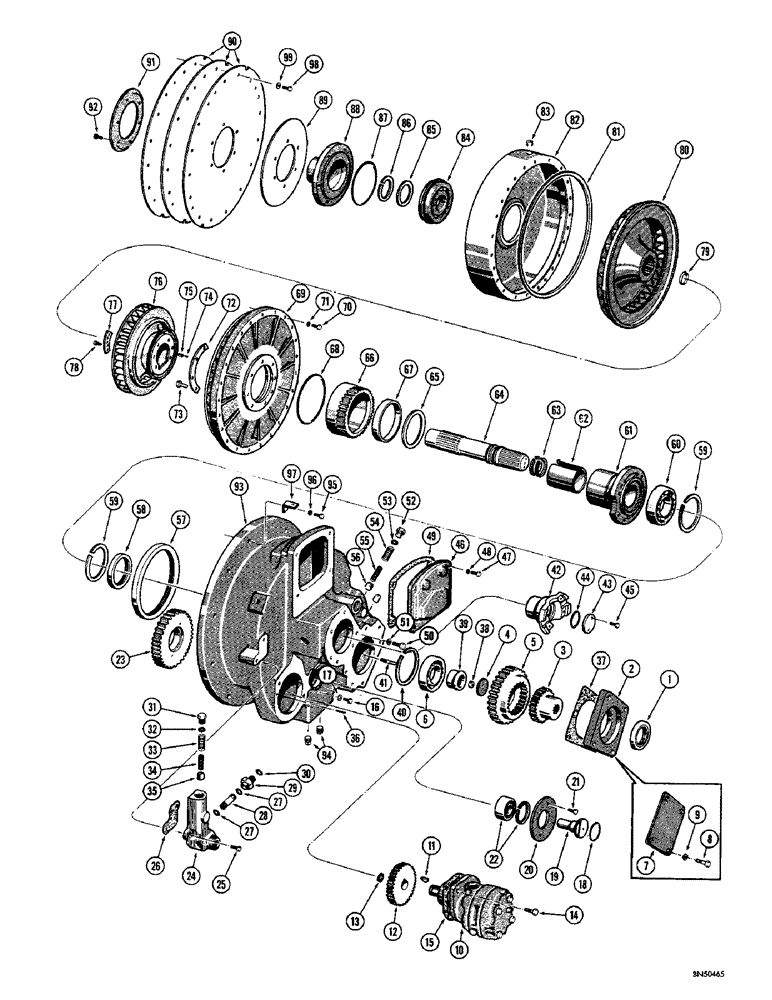

Запчасти Case 750 (062) - TORQUE CONVERTER (03) - TRANSMISSION

D30324

TORQUE CONVERTER - complete (Used on all models with allied equipment)

1шт.

D32766

TORQUE CONVERTER - complete (Used on drawbar models only)

1шт.

1

D32107

SEAL

- oil, (the following items are used in D30324 torque conveter only)

1шт.

2

D31938

CARRIER

- oil seal, pump mounting, (the following items are used in D30324 torque conveter only)

1шт.

D37030

HUB

ASSEMBLY - splined, (the following items are used in D30324 torque conveter only)

1шт.

3

NSS

NOT SOLD SEPARAT

HUB - splined, (the following items are used in D30324 torque conveter only)

1шт.

4

41-24

PLUG

- expansion, (the following items are used in D30324 torque conveter only)

1шт.

5

D32003

GEAR

- driven, (the following items are used in D30324 torque conveter only)

1шт.

6

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING - ball, (the following items are used in D30324 torque conveter only)

1шт.

7

D33874

PLATE - cover, hydraulic pump, (the following items are used in D32766 torque conveter only)

1шт.

8

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4", (the following items are used in D32766 torque conveter only)

4шт.

9

92-8

LOCK WASHER,1/2"

(The following items are used in D32766 torque conveter only) 1/2"

4шт.

10

D32011

PUMP

- hydraulic, torque converter charging (Hydreco no. 1510L5B1) See Fig. 68 for breakdown, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

11

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

(The following items are used in D30324 & D32766 torque conveter only) #5, 1/8" x 5/8", HT

1шт.

12

D32020

GEAR

- driven, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

13

D32101

SNAP RING,#62, Ext

Ring, Snap, (the following items are used in D30324 & D32766 torque conveter only) #62, Ext

1шт.

14

15-616

BOLT (MACHINE)

HHCS - 3/8" - 16 NC x 1", (the following items are used in d30324 & D32766 torque conveter only)

2шт.

15

D32000

GASKET

- pump to torque converter, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

16

15-612

BOLT (SPREADER)

HHCS - 3/8" - 16 NC x 3/4", (the following items are used in d30324 & D32766 torque conveter only)

1шт.

17

D32118

WASHER

- idler gear shaft, special, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

18

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "o" ring, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

19

D32029

SHAFT

- idler gear, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

20

D32019

PLATE

- retaining, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

21

16-612

SCREW,3/8" - 24 x 3/4"

HHCS - 3/8" - 24 NF x 3/4", (the following items are used in d30324 & D32766 torque conveter only)

2шт.

22

D32106

BALL BEARING,0.787" ID x 1.8504" OD x 0.8125"

BEARING - ball, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

23

D32001

GEAR

- idler, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

24

D32071

BODY - relief valve, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

25

15-616

BOLT (MACHINE)

HHCS - 3/8" - 16 NC x 1", (the following items are used in d30324 & D32766 torque conveter only)

2шт.

26

D32002

GASKET

- relief valve body, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

27

D32114

O-RING,0.75" ID x 0.875" OD

SEAL - "o" ring, (the following items are used in d30324 & D32766 torque conveter only)

2шт.

28

D32024

TUBE

- relief valve to torque converter, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

29

D32072

CONNECTOR - straight, special, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

30

D32110

O-RING

SEAL - "o" ring, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

31

D32013

PLUG

- relief valve, special, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

32

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

- relief valve, special, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

33

D32023

SPRING

- outer, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

34

D32022

SPRING

- inner, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

35

D32014

PISTON

- relief valve, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

36

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, (The following items are used in d30324 & D32766 torque conveter only) 3/16" x 1/2", Slotted

1шт.

37

D32004

GASKET

- seal carrier, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

38

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF), (the following items are used in d30324 & D32766 torque conveter only)

1шт.

39

D32032

BEARING,1.3782" OD x 1.03

RETAINER - bearing, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

40

D32069

RING

- snap, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

41

D32067

STUD

- 3/8" - 24 NF x 1-1/2", (the following items are used in d30324 & D32766 torque conveter only)

1шт.

42

D31315

YOKE

- driveshaft, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

43

D32018

PLATE

- yoke mounting, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

44

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "o" ring, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

45

16-612

SCREW,3/8" - 24 x 3/4"

HHCS - 3/8" - 24 NF x 3/4", (the following items are used in d30324 & D32766 torque conveter only)

2шт.

46

D32009

COVER ASSY

PLATE - cover, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

47

15-616

BOLT (MACHINE)

HHCS - 3/8" - 16 NC x 1", (the following items are used in d30324 & D32766 torque conveter only)

4шт.

48

D32117

COPPER WASHER

WASHER, COPPER (If used) (The following items are used in d30324 & D32766 torque converter only)

4шт.

49

D32005

GASKET

- cover plate, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

50

15-640

SCREW,Hex, 3/8" - 16 x 2 1/2"

HHCS - 3/8" - 16 NC x 2-1/2", (the following items are used in d30324 & D32766 torque conveter only)

6шт.

51

D32117

COPPER WASHER

WASHER, COPPER, Special (The following items are used in d30324 & D32766 torque converter only)

6шт.

52

D32013

PLUG

- relief valve, special, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

53

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

- relief valve, special, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

54

D32031

SPRING

- outer, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

55

D32021

SPRING

- inner, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

56

D32014

PISTON

- relief valve, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

57

D32109

SEAL,133.35mm ID x 165.35mm OD x 13.74mm Thk

- oil, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

58

D32108

SEAL

- oil, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

59

D32070

RING

- snap, (the following items are used in d30324 & D32766 torque conveter only)

2шт.

60

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

61

D31937

CARRIER

- guide, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

62

D32027

SLEEVE

- split, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

63

A20229

RING

- piston, (the following items are used in d30324 & D32766 torque conveter only)

2шт.

64

D32026

SHAFT

- output, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

65

D32034

RING

- piston, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

D38207

GEAR

ASSEMBLY - pump drive, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

66

D31999

X

GEAR - pump drive (When stock is exhausted, use D38207 for service), (the following items are used in d30324 & D32766 torque conveter only)

1шт.

67

D32068

BUSHING

- gear, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

68

R12802

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

SEAL - "o" ring, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

69

D31934

IMPELLER

- converter, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

70

15-514

BOLT

HHCS - 5/16" - 18 NC x 7/8", (the following items are used in d30324 & D32766 torque conveter only)

24шт.

71

A40877

WASHER

- flat, special, (the following items are used in d30324 & D32766 torque conveter only)

24шт.

72

D32016

PLATE

- clamp, (the following items are used in d30324 & D32766 torque conveter only)

2шт.

73

16-512

X

HHCS - 5/16" - 24 NF x 3/4", (the following items are used in d30324 & D32766 torque conveter only)

8шт.

74

138-108

LOCK PIN,7/32" x 5/8", Slotted

(The following items are used in D30324 & D32766 torque conveter only) 7/32" x 5/8", Slotted

4шт.

75

138-221

LOCK PIN,3/8" x 5/8", Slotted

(The following items are used in D30324 & D32766 torque converter only) 3/8" x 5/8", Slotted

4шт.

76

D31936

GUIDE

WHEEL - converter, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

77

D32010

PLATE

- clamp, (the following items are used in d30324 & D32766 torque conveter only)

2шт.

78

D32115

X

SCREW - special, (the following items are used in d30324 & D32766 torque conveter only)

6шт.

79

A22889

RING

- snap, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

80

D31935

TURBINE

- converter, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

81

D31998

GASKET

- ring, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

82

D32007

HOUSING

- rotating, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

83

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT), (the following items are used in d30324 & D32766 torque conveter only)

2шт.

84

D32105

BEARING

- ball, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

85

D32030

BALL BEARING,1.585" ID x 1.94" OD x 0.114"

SPACER - bearing, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

86

A26946

RING

- snap, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

87

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

SEAL - "o" ring, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

88

D32015

WHEEL

PILOT - flywheel, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

89

D32025

SHIM

- flex plate, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

90

D32017

PLATE

FLEX PLATE - converter, (the following items are used in d30324 & D32766 torque conveter only)

3шт.

91

D32028

WASHER

- support, special, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

92

15-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

HHCS - 1/2" - 13 NC x 1-1/4", (the following items are used in d30324 & D32766 torque conveter only)

6шт.

93

D32008

HOUSING - converter, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

94

221-6

X,Sq Hd, 1"-11 1/2 NPTF

PLUG - pipe, square head (1" NPT), (the following items are used in d30324 & D32766 torque conveter only)

3шт.

95

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(The following items are used in D30324 & D32766 torque conveter only) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

96

92-6

LOCK WASHER,3/8"

(the following items are used in d30324 & D32766 torque conveter only) 3/8"

12шт.

97

74939

SCREW

CLIP, (the following items are used in d30324 & D32766 torque conveter only)

1шт.

98

R14979

SCREW

BOLT - flex plate to flywheel, (the following items are used in d30324 & D32766 torque conveter only)

16шт.

99

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- drive plate, special, (the following items are used in d30324 & D32766 torque conveter only)

16шт.
