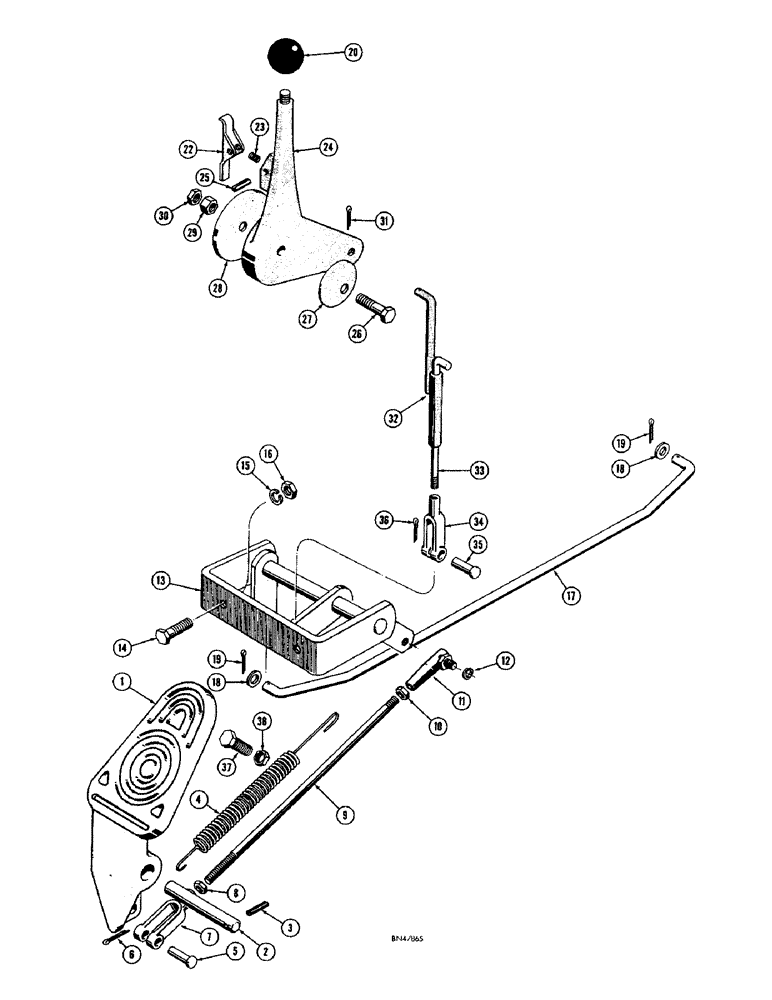

Запчасти Case 750 (096) - THROTTLE CONTROL LINKAGE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
34828
PEDAL - accelerator
1шт.
2
R17364
SHAFT
- accelerator pedal
1шт.
3
49871
X
PIN - lock
1шт.
4
11469
SPRING
- accelerator return
1шт.
5
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Yoke 5/16" x .940"
1шт.
6
132-24
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), 3/32" x 1/2"
1шт.
7
213-3
ADJUSTABLE CLEVIS,5/16"-24
YOKE - end, adjustable (5/16" - 24 NF)
1шт.
8
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
1шт.
9
D30270
ROD - acceleration pedal
1шт.
10
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
1шт.
11
D25758
BALL
JOINT - ball
1шт.
12
92-5
LOCK WASHER,5/16"
1шт.
13
R23254
BRACKET - accelerator linkage
1шт.
14
14-614
SCREW,Hex, 3/8" - 24 x 7/8", Gr 5
HHCS - 3/8" - 24 NF x 7/8"
2шт.
15
92-6
LOCK WASHER,3/8"
2шт.
16
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8" - 24 NF)
2шт.
17
R23211
ROD - fuel pump
1шт.
18
95-4
WASHER,1/4"
- standard wrot (5/16")
2шт.
19
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
2шт.
20
70213
KNOB
- control
1шт.
21
R18721
LEVER - hand throttle (Not illustrated)
1шт.
23
A8012
SPRING
- hand throttle
1шт.
24
R18706
LEVER - hand throttle
1шт.
25
138-91
LOCK PIN,3/16" x 11/16", Slotted
PIN, 3/16" x 11/16", Slotted
1шт.
26
14-832
BOLT,Hex, 1/2" - 20 x 2", Gr 5
HHCS - 1/2" - 20 NF x 2"
1шт.
27
R14771
WASHER
- Belleville (17/32")
1шт.
28
R15071
DISC
- friction
1шт.
29
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
1шт.
30
25-158
JAM NUT,Jam, 1/2"-20, G5
- lock (1/2" - 20 NF)
1шт.
31
132-24
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), 3/32" x 1/2"
1шт.
32
R22741
ROD - hand throttle
1шт.
33
R22740
ROD - hand throttle
1шт.
34
213-2
ADJUSTABLE CLEVIS,1/4"-28 x 2"
YOKE - end, adjustable (1/4" - 28 NF)
1шт.
35
141-2
CLEVIS PIN,1/4" x .770"
PIN - yoke
1шт.
36
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
1шт.
37
114-402
HHCS - 1/2" - 20 NF x 2"
1шт.
38
25-158
JAM NUT,Jam, 1/2"-20, G5
- lock (1/2" - 20 NF)
1шт.
Выбрано товаров: 38
