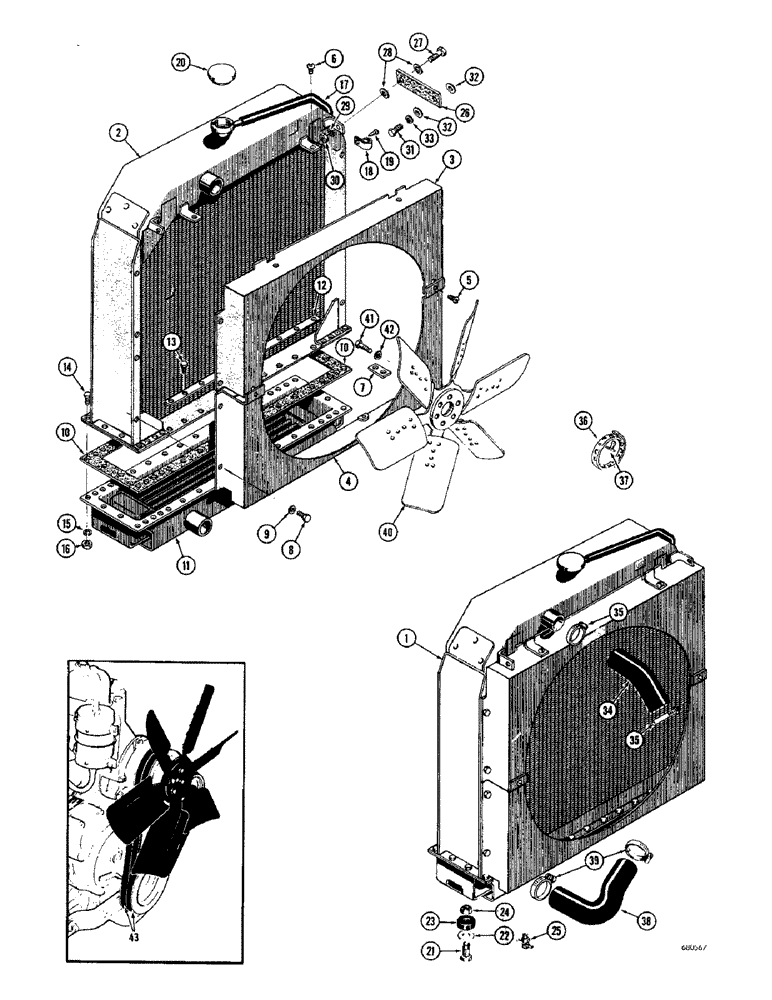

Запчасти Case 750 (040) - RADIATOR, FAN AND HOSES (01) - ENGINE

1

D30256

RADIATOR

- when stock is exhausted, use D36922 radiator for service

1шт.

D36922

RADIATOR

1шт.

2

D31414

TOP TANK AND CORE - radiator

1шт.

NSS

NOT SOLD SEPARAT

SHROUD - radiator

1шт.

3

R22025

SHROUD - radiator, top

1шт.

4

R22026

SHROUD - radiator, bottom

1шт.

5

75-46

SCREW

RHMS - 1/4" - 20 NC x 3/8"

2шт.

6

75-46

SCREW

RHMS - 1/4" - 20 NC x 3/8"

4шт.

7

R22013

CLIP - shroud

2шт.

8

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

8шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

10

N6649

STRIP-GASKET

- core

2шт.

11

D30259

BOTTOM TANK AND COOLER - radiator

1шт.

12

R22015

HEADER BAR - radiator

2шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

32шт.

14

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

15

92-5

LOCK WASHER,5/16"

40шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

40шт.

17

D30260

HOSE - overflow

1шт.

18

R22017

CLAMP - overflow hose

2шт.

19

R18946

SCREW - drive, no. 20 x 3/8"

2шт.

20

D25826

CAP

- pressure, 7 PSI

1шт.

21

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NF x 2"

2шт.

22

51200247

WASHER

- spacer (1/2"), Cap

2шт.

23

70198

WASHER

- vibration (1/2")

2шт.

24

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF)

2шт.

25

217-92

COCK

DRAIN COCK - radiator (1/4" NPT)

1шт.

26

R22325

STRAP

- radiator support (When stock is exhausted, order D35108)

2шт.

D35108

STRAP

- radiator support

2шт.

27

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8" - 24 NF x 1-1/4"

2шт.

28

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- plain, special

4шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

2шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(R22325 mounting) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

32

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- plain, special

4шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

R17765

HOSE,2.50" ID x 2.63", SAE 20R4 CLASS SC

- iinlet, radiator 2.50" ID x 2.63", SAE 20R4 CLASS SC

1шт.

35

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

36

D41077

STRAP

- wiring

1шт.

37

D41075

STUD

- strap

1шт.

38

R17766

HOSE,2.00" ID x 10.69", SAE 20R4 Class C D1 Or D2

Outlet, Radiator 2.00" ID x 10.69", SAE 20R4 Class C D1 Or D2

1шт.

39

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

40

R19599

FAN - pusher type

1шт.

An anti-sandblast screen must be used with a pusher type fan and reversible type fan, see Figure 160.

1шт.

R19600

FAN - suction type

1шт.

D42282

FAN

- reversible, push or pull

1шт.

An anti-sandblast screen must be used with a pusher type fan and reversible type fan, see Figure 160.

1шт.

41

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Use with D42282 fan only Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

R19920

BELT,0.69" W x 50.38" L

Fan, Matched set 0.69" W x 50.38" L

1шт.
