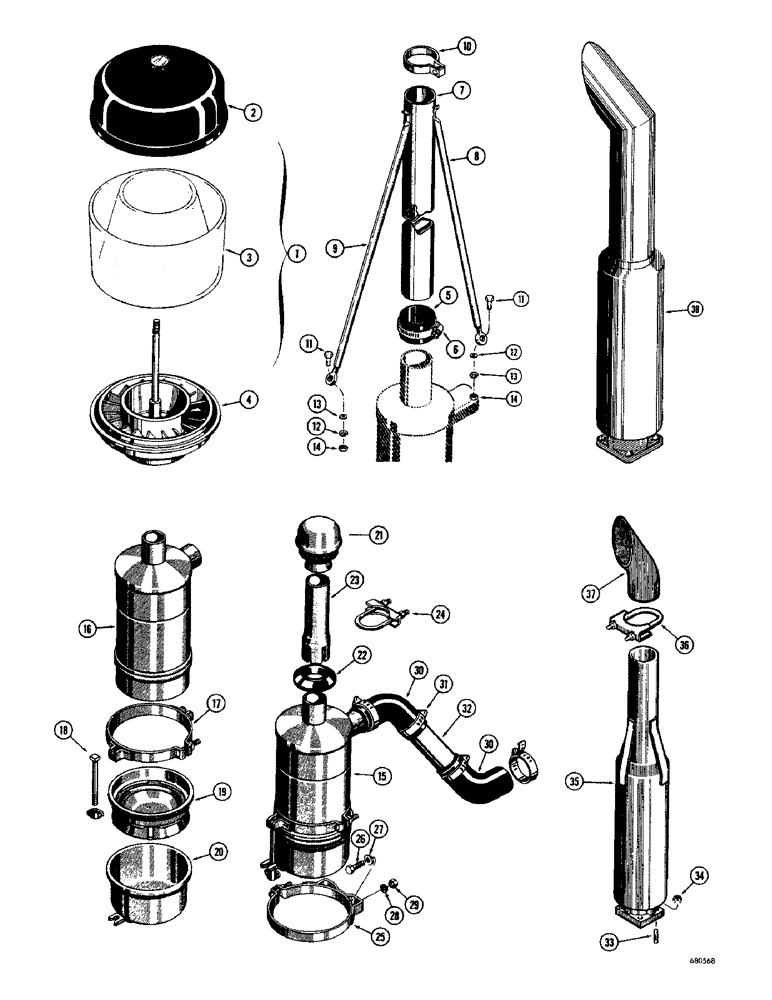

Запчасти Case 750 (038) - AIR CLEANER, MUFFLER AND EXTENSIONS, PRE CLEANER (01) - ENGINE

1

A64589

PRECLEANER

PRE CLEANER - air

1шт.

2

73187

COVER

- pre cleaner

1шт.

3

NLS

NO LONGER SERVICED

BODY - pre cleaner

1шт.

4

73185

SLEEVE

- pre cleaner

1шт.

5

NLS

NO LONGER SERVICED

HOSE - extension, air inlet

1шт.

6

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, air inlet extensions

2шт.

7

73157

RING,2.50" OD, 36" Length

TUBE - extension (36"), air inlet

1шт.

R19706

TUBE - extension (60"), air inlet

1шт.

8

R19699

BRACE - RH, air inlet extensions

1шт.

9

R19698

BRACE - LH, air inlet extensions

1шт.

10

R19705

CLAMP - brace, air inlet extensions

1шт.

11

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8" - 24 NF x 1-1/4", air inlet extensions

2шт.

12

195-25

WASHER,3/8"

- plain (), air inlet extensions 3/8"

2шт.

13

92-6

LOCK WASHER,3/8"

air inlet extensions 3/8"

2шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF), air inlet extensions

2шт.

15

R22268

CLEANER

AIR CLEANER - engine, mounting parts

1шт.

16

R21390

BODY - air cleaner, mounting parts

1шт.

17

R22419

BAND - air cleaner, mounting parts

1шт.

18

R22421

BOLT - air cleaner, mounting parts

2шт.

19

R21392

CUP - inner, air cleaner, mounting parts

1шт.

20

R22420

CUP

- outer, air cleaner, mounting parts

1шт.

21

70974

CAP - air cleaner, mounting parts

1шт.

22

R14780

GROMMET

- air cleaner stack, mounting parts

1шт.

23

74767

ARTICULATION

STACK - air cleaner, mounting parts

1шт.

24

A13240

CLAMP,2-5/8" ID

- stack, air cleaner & mounting parts

1шт.

25

70973

BRACKET

- air cleaner mounting parts

2шт.

26

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Air cleaner & mounting parts Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

27

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16"), air cleaner & mounting parts

4шт.

28

92-5

LOCK WASHER,5/16"

air cleaner & mounting parts 5/16"

4шт.

29

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), air cleaner & mounting parts

4шт.

30

R19215

HOSE

ELBOW - special, air cleaner & mounting parts

2шт.

31

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, air cleaner & mounting parts

4шт.

32

R20445

TUBE - air cleaner, mounting parts

1шт.

33

A26852

STUD

- exhaust manifold to muffler, related parts

4шт.

34

131-906

NUT

- hex., lock (1/2" - 13 NC), muffler & related parts

4шт.

R14386

NUT

- special, fine thread (If used), muffler & related parts

4шт.

35

D29460

MUFFLER

- exhaust (When stock is exhausted, order D35766 for service), muffler & related parts

1шт.

36

74768

X,2-1/2" ID

CLAMP - stock, use with D29460 muffler, related parts

1шт.

37

R20143

PIPE CLAMP

STACK - exhaust, use with D29460 muffler, related parts

1шт.

38

D35766

MUFFLER

- exhaust, related parts

1шт.
