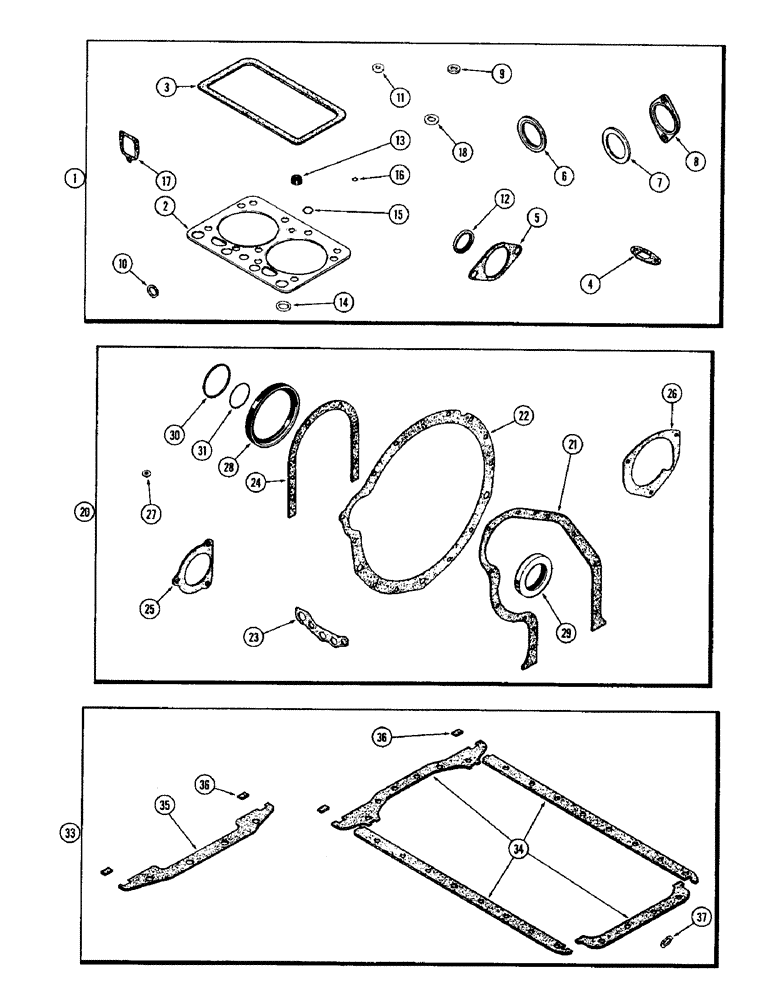

Запчасти Case 750 (032) - ENGINE GASKET KITS, (267) DIESEL ENGINE (01) - ENGINE

1

A40575

KIT

VALVE GRIND GASKET KIT (See note)

1шт.

2

A23118

GASKET

- cylinder head

2шт.

3

A57595

CYLINDER HEAD GASKET

- cyl. head cover

2шт.

4

A27905

GASKET

- water manifold

4шт.

5

A21035

GASKET

- thermostat housing

1шт.

6

A11889

GASKET

- exhaust manifold

4шт.

7

A11888

MANIFOLD GASKET

- intake manifold

2шт.

8

A21055

MANIFOLD GASKET

- intake manifold elbow

1шт.

9

A23685

GASKET

- breather, Serial Range: tube-cover

2шт.

10

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - injector nozzle

4шт.

11

A23684

GASKET

GASKET - cyl. head cover stud

4шт.

12

A21034

SEAL

SEAL - thermostat

1шт.

13

A10726

SEAL

SHIELD - intake valve stem (Rubber)

4шт.

14

A7669

RING

"O" RING - cyl. head gasket (Rubber)

4шт.

15

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage, cyl. head

2шт.

16

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

17

A22939

GASKET

- decompressor hsg. (Used only on early model engines)

2шт.

18

A34133

GASKET

- breather tube, 9/32 x 1/2 x 3/64" fiber

2шт.

20

A40348

KIT

CYLINDER BLOCK GASKET KIT (See note)

1шт.

21

A33018

GASKET

- timing gear cover

1шт.

22

A11649

GASKET

- converter housing (Not applicable)

1шт.

23

A21084

GASKET

- oil filter base

1шт.

24

A32830

GASKET

- rear seal retainer

1шт.

25

A27933

GASKET

- starter motor mounting

1шт.

26

1342741C1

GASKET

- water pump adapter

1шт.

27

A22670

SHIM,.005" Thk

Balancer mounting (UAR) .005" Thk

4шт.

27

A22671

SHIM,.010" Thk

Balancer mounting (UAR) .010" Thk

4шт.

28

A23085

OIL SEAL

- oil, rear crankshaft

1шт.

29

A57342

SEAL

- oil, front crankshaft

1шт.

30

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - drive hsg., fuel pump

1шт.

31

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (Not applicable)

1шт.

33

A20171

GASKET

OIL PAN GASKET KIT (See note)

1шт.

34

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A20171)

4шт.

35

A11603

OIL PAN GASKET SET

- seal plate

1шт.

36

A11604

OIL PAN GASKET SET

- end, seal plate gasket

2шт.

37

A22317

WASHER

- seal plate to pan bolt

2шт.
