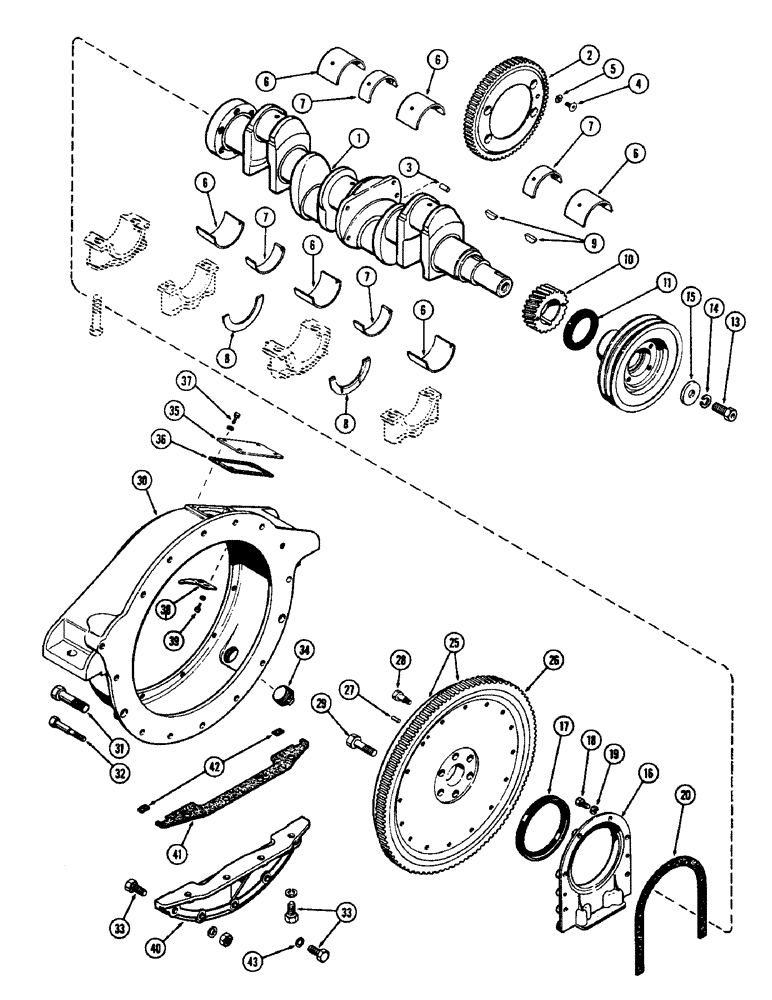

Запчасти Case 750 (028) - CRANKSHAFT, (267) DIESEL ENGINE (01) - ENGINE

1

A22578

CRANKSHAFT - engine

1шт.

2

A22576

GEAR

ASSY. - drive, balancer

1шт.

3

A8134

PIN

- dowel, drive gear locating

1шт.

4

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - mtg., gear, 3/8 x 3/4" NF flat sckt. hd.

4шт.

5

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

6

A28687

LINING

LINER KIT - crankshaft brg. (Wide) (Std.)

3шт.

6

A7182

KIT

LINER KIT - crankshaft brg. (Wide) (-.002")

3шт.

6

A7188

BEARING LINER

LINER KIT - crankshaft brg. (Wide) (-.010")

3шт.

6

A7194

KIT

LINER KIT - crankshaft brg. (Wide) (-.020")

3шт.

6

A7200

KIT

LINER KIT - crankshaft brg. (Wide) (-.030")

3шт.

7

A20394

LINING

LINER KIT - crankshaft brg. (Narrow) (Std.)

2шт.

7

A20579

LINING

LINER KIT - crankshaft brg. (Narrow) (-.002")

2шт.

7

A20582

LINING

LINER KIT - crankshaft brg. (Narrow) (-.010")

2шт.

7

A20585

KIT

LINER KIT - crankshaft brg. (Narrow) (-.020")

2шт.

7

A20588

KIT

LINER KIT - crankshaft brg. (Narrow) (-.030")

2шт.

8

A27835

WASHER

- thrust, crankshaft brg. (Std.)

2шт.

8

A7204

WASHER

- thrust, crankshaft brg. (.006")

2шт.

9

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear & fan drive pulley #C, 5/16" x 1 1/8", HT

2шт.

10

A27837

GEAR

- crankshaft

1шт.

11

A57342

SEAL

- oil, crankshaft front (Replaces A23433)

1шт.

12

A24500

PULLEY

- fan drive, crankshaft

1шт.

13

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Fan drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

A23229

WASHER

- fan drive pulley

1шт.

16

A32182

RETAINER

ASSY. - rear crankshaft

1шт.

17

A23085

OIL SEAL

- rear retainer

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

19

92-6

LOCK WASHER,3/8"

6шт.

20

A32830

GASKET

- rear seal retainer

1шт.

25

A34210

FLYWHEEL ASSY. - engine, housing

1шт.

26

A27920

GEAR

- ring, flywheel, housing

1шт.

27

A27840

PIN

- dowel, flywheel, housing

1шт.

28

A11549

STEP BOLT

BOLT - dowel, flywheel mounting, housing

2шт.

29

A11550

BOLT (SPREADER)

BOLT - flywheel mounting, housing

4шт.

30

A21040

HOUSING

- flywheel

1шт.

31

A20108

BOLT - housing to cyl. block, flywheel

2шт.

31

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Flywheel & housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

5шт.

32

A32607

STEP BOLT

- dowel, housing to cyl. block (Long), flywheel

1шт.

32

A32608

STEP BOLT

BOLT - dowel, housing to cyl. block (Short), flywheel

1шт.

33

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NF hex., flywheel & housing

6шт.

34

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe, 1-1/4" square head, flywheel & housing

1шт.

35

A22584

COVER

- housing inspection & timing, flywheel

1шт.

36

A22585

GASKET

- timing cover, flywheel & housing

1шт.

37

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Flywheel & housing Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

38

A22586

INDICATOR

POINTER - timing, flywheel, flywheel & hosuing

1шт.

39

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Flywheel & housing Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

40

A22688

PLATE - seal clutch housing, flywheel

1шт.

41

A11603

OIL PAN GASKET SET

- seal plate, flywheel & housing

1шт.

42

A11604

OIL PAN GASKET SET

- end, seal plate, flywheel & housing

2шт.

43

A22317

WASHER

- seal plate bolt (Copper), flywheel & housing

2шт.
