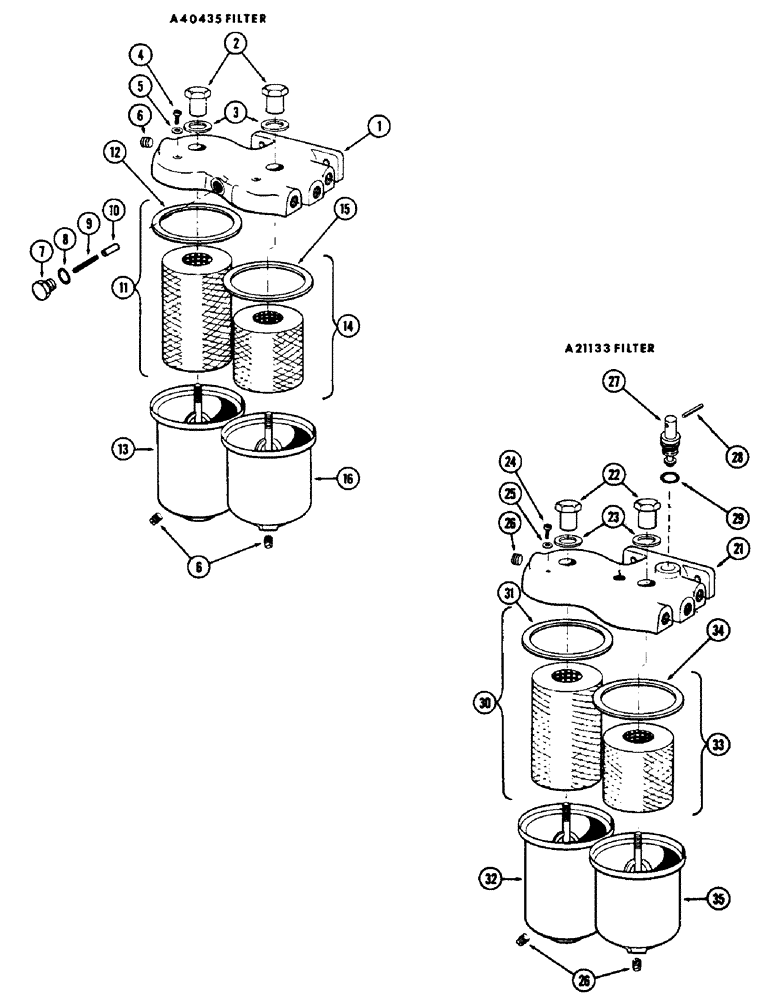

Запчасти Case 750 (024) - A40435 PRIMARY FUEL FILTER, (267) DIESEL ENGINE, (USED ON LATE MODELS) (01) - ENGINE

A40435

FILTER

ASSY. - primary fuel, 1st & 2nd stage

1шт.

1

A24915

HEAD - filter, 1st & 2nd stage

1шт.

2

A21131

NUT

- body retainer

2шт.

3

A28055

GASKET

- retainer nut

2шт.

4

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleeder

2шт.

5

A20662

GASKET

WASHER - bleeder screw

2шт.

6

221-1849

PLUG

- (1/8" PT, ctsk. sckt. hd.)

3шт.

7

A24916

PLUG

- relief valve

1шт.

8

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - valve plug (1/2 x 11/16 x 3/32")

1шт.

9

A24918

SPRING

- relief valve

1шт.

10

A24917

PLUNGER

- relief valve

1шт.

11

A21141

FILTER, ELEMENT

ELEMENT KIT - first stage (4-13/16" lg.)

1шт.

12

A28056

GASKET

- first stage body

1шт.

13

A21129

BODY

- filter element 1st stage

1шт.

14

A7627

FILTER, ELEMENT

ELEMENT KIT - second stage (3-7/8" lg.)

1шт.

15

A28056

GASKET

- second stage body

1шт.

16

A21132

BODY

- filter element, 2nd stage

1шт.

A21133

FILTER

ASSY. - primary fuel (1st & 2nd stage)

1шт.

21

A21077

FILTER HEAD

HEAD - filter, 1st & 2nd stage, A21133 primary fuel filter ( used on early models)

1шт.

22

A21131

NUT

- body retainer, A21133 primary fuel filter ( used on early models)

2шт.

23

A28055

GASKET

- retainer nut, A21133 primary fuel filter ( used on early models)

2шт.

24

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleeder, A21133 primary fuel filter ( used on early models)

2шт.

25

A20662

GASKET

- bleeder screw, A21133 primary fuel filter ( used on early models)

2шт.

26

221-1849

PLUG

- (1/8" PT, ctsk. sckt. hd.), A21133 primary fuel filter ( used on early models)

3шт.

27

A21097

VALVE - relief filter, A21133 primary fuel filter ( used on early models)

1шт.

28

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , A21133 primary fuel filter (used on early models) 1/8" x 1", Slotted

1шт.

29

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - sealing, A21133 primary fuel filter ( used on early models)

1шт.

30

A21141

FILTER, ELEMENT

ELEMENT KIT - first stage fitting (4-13/16" lg.), A21133 primary fuel filter ( used on early models)

1шт.

31

A28056

GASKET

- first stage body, A21133 primary fuel filter ( used on early models)

1шт.

32

A21129

BODY

- filter element, 1st stage, A21133 primary fuel filter ( used on early models)

1шт.

33

A7627

FILTER, ELEMENT

ELEMENT KIT - 2nd stage filtering (3-7/8" lg.), A21133 primary fuel filter ( used on early models)

1шт.

34

A28056

GASKET

- 2nd stage body to head, A21133 primary fuel filter ( used on early models)

1шт.

35

A21132

BODY

- filter element, 2nd stage, A21133 primary fuel filter ( used on early models)

1шт.
