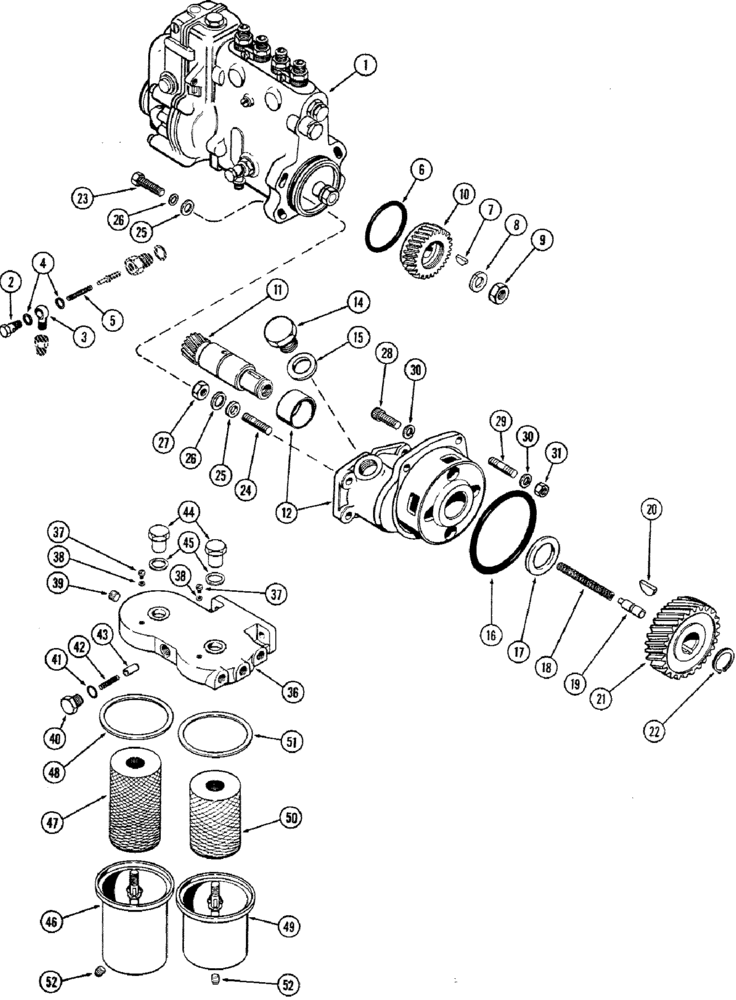

Запчасти Case 750 (022) - FUEL INJECTION PUMP AND DRIVE, (267) DIESEL ENGINE (01) - ENGINE

1

A22635

PUMP

ASSY. - fuel transfer (1900 RPM)

1шт.

2

A25192

BANJO BOLT

BOLT - lube oil fitting

1шт.

3

A25191

FITTING

- oil lube line (Banjo type)

1шт.

4

A22381

WASHER

- banjo fitting

2шт.

5

A25190

SPRING

- oil lube port

1шт.

6

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - pump to housing

1шт.

7

A20933

KEY

- drive gear

1шт.

8

A25188

WASHER

- lock, gear retaining

1шт.

9

A25189

NUT - gear retaining

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex.

2шт.

11

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

12

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

4шт.

13

A21139

GEAR

- drive, fuel pump

1шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" NF hex.

2шт.

15

A20664

STUD - mtg., fuel pump

2шт.

16

A20622

GEAR

PINION - pump gear drive

1шт.

17

A21136

HOUSING ASSY. - drive pinion & gear (w/bsg.)

1шт.

18

A21140

PLUG

- timing window

1шт.

19

A27947

X

GASKET - timing plug

1шт.

20

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

SCREW - 3/8 x 1-1/4" NC hex. sckt., 12 pt. hd.

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

3шт.

23

A26554

STUD - mtg., pinion & gear housing

1шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" NF hex.

1шт.

25

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - mtg., drive housing

1шт.

26

A27864

WASHER

- thrust drive

1шт.

27

CASA27853

SPRING

- tension, plunger

1шт.

28

A27852

PLUNGER

- thrust, pinion

1шт.

29

126-66

WOODRUFF KEY

KEY - drive gear (#141 Woodruff)

1шт.

30

A20899

GEAR WHEEL

GEAR - drive, fuel pump

1шт.

31

A27576

SNAP RING,#98, Ext

Ring, Snap, , drive gear #98, Ext

1шт.
