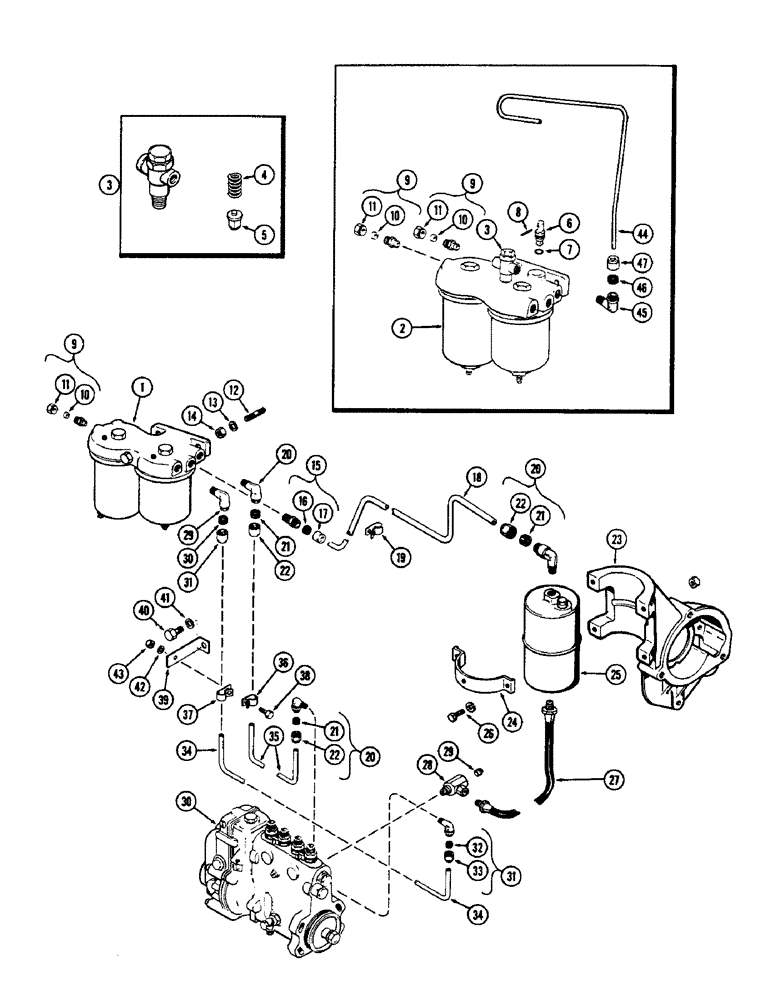

Запчасти Case 750 (020) - FUEL INJECTION FILTER SYSTEM, (267) DIESEL ENGINE (01) - ENGINE

1

A40435

FILTER

ASSY. - primary fuel (1st & 2nd stage) (Repairs, Fig. 24) (Used late models)

1шт.

2

A21133

FILTER

ASSY. - primary fuel (1st & 2nd stage) (Repairs, Fig. 24) (Used early models)

1шт.

3

A20637

LOCK VALVE

VALVE ASSY. - fuel filter (Used early model)

1шт.

4

A41003

SPRING - overflow valve

1шт.

5

A41321

INSULATOR

VALVE - overflow

1шт.

6

A21097

VALVE - fuel by-pass (Used early model)

1шт.

7

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

SEAL - by-pass valve (Used w/A21097)

1шт.

8

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Used w/A21097 1/8" x 1", Slotted

1шт.

9

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - 3/8" tube x 1/4" PT

2шт.

10

222-104

SLEEVE,3/8" Tube

- connector, 3/8" Tube

1шт.

11

222-114

NUT,5/8"-24

NUT - connector, 3/8" tube

1шт.

12

A26554

STUD - mtg., primary filter

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" NF hex.

2шт.

15

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 5/16" tube x 1/4" PT

1шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

18

A20655

TUBE - primary filter to 3rd stage filter

1шт.

19

A7922

CLIP

- tube retainer

1шт.

20

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube x 1/4" PT

3шт.

21

222-103

SLEEVE,5/16" Tube

1шт.

22

222-113

TUBE NUT,9/16"-24

NUT - hex., 5/16" tube

1шт.

23

A22583

ADAPTER

- mtg., water pump & 3rd stage filter

1шт.

24

A21144

CLAMP

- third stage filter

2шт.

25

A57228

FILTER

- third stage (Replaces A27983)

1шт.

26

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

27

A20538

FUEL HOSE,0.38" ID x 8.50"

Third stage filter to fuel pump 0.38" ID x 8.50"

1шт.

28

A20539

FITTING

UNION - fuel, Serial Range: hose-pump

1шт.

29

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" NPT sq. hd.

1шт.

30

A22635

PUMP

ASSY. - fuel transfer (Repairs, P. 22)

1шт.

31

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube x 1/4" PT

2шт.

32

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

33

222-114

NUT,5/8"-24

NUT - hex. 3/8" tube

1шт.

34

A20650

TUBE

- first stage, Serial Range: filter-pump

1шт.

35

A20651

TUBE

- pump to second stage filter

1шт.

36

A27814

X

CLIP - second stage tube

1шт.

37

A20688

CLIP

- first stage tube

1шт.

38

75-412

SCREW,Rd, 1/4" x 3/4"

- mach., 1/4 x 3/4" NC, rd. hd.

1шт.

39

A20656

BRACKET - first & second stage tube

1шт.

40

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

41

92-5

LOCK WASHER,5/16"

1шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

43

25-104

NUT,1/4"-20, G5

1шт.

44

A20638

TUBE - primary filter to #4 nozzle (Used on early models w/A21133 filter)

1шт.

45

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/4" tube x 1/8" PT

1шт.

46

222-104

SLEEVE,3/8" Tube

- 1/4" tube

1шт.

47

87017024

TUBE NUT,1/2"-24

NUT - hex., 1/4" tube

1шт.
