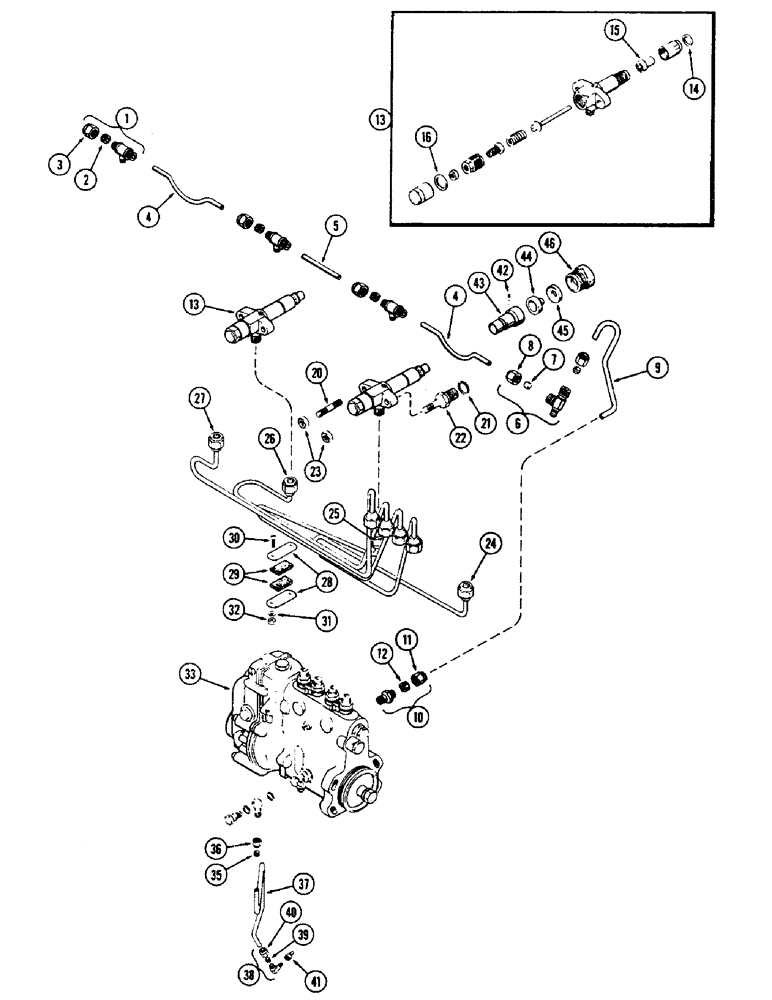

Запчасти Case 750 (018) - FUEL INJECTION SYSTEM, (267) DIESEL ENGINE (01) - ENGINE

1

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - leak-off, 1/4" tube x 1/8" PT

3шт.

2

222-102

SLEEVE,1/4" Tube

2шт.

3

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

2шт.

4

A27981

TUBE

- fuel leak-off, lower

2шт.

5

A20162

TUBE

- fuel leak-off, upper

1шт.

6

222-62

TEE,1/2"-24 Fem Run x 1/2"-24 Male x 1/8" NPT Br

ASSY. - leak-off 1/4" tube x 1/8" PT

1шт.

7

222-102

SLEEVE,1/4" Tube

2шт.

8

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

2шт.

9

A20647

TUBE - leak-off, #1, Serial Range: injector-pump

1шт.

10

A28098

VALVE

CONNECTOR ASSY. - check valve

1шт.

11

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

12

222-102

SLEEVE,1/4" Tube

1шт.

13

A8013

NOZZLE INJECTION

INJECTOR ASSY. - fuel injection

4шт.

14

A31062

GASKET

- nozzle mounting

1шт.

15

A31159

NOZZLE INJECTION

NOZZLE ASSY. - injector

1шт.

16

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle seat

1шт.

20

A27929

STUD

- short, nozzle mounting

4шт.

21

A10679

GASKET

- nozzle stud

4шт.

22

A10678

STUD

- large, nozzle mounting

4шт.

23

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" NF, hex.

8шт.

24

A20501

TUBE

ASSY. - fuel injection (#1 cyl.)

1шт.

25

A20502

TUBE

ASSY. - fuel injection (#2 cyl.)

1шт.

26

A20503

TUBE

ASSY. - fuel injection (#3 cyl.)

1шт.

27

A20504

TUBE

ASSY. - fuel injection (#4 cyl.)

1шт.

28

A28046

CLAMP

- injection tubes (4 tubes)

2шт.

29

A28047

CUSHION

- tube clamp (4 tubes)

2шт.

28

A27977

CLAMP

- injection tube (3 tubes)

2шт.

29

A27979

CUSHION

- tube clamp (3 tubes)

2шт.

30

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach., #10 x 1" NC, rd. hd.

4шт.

31

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

32

129-7

NUT,Hex, #10 - 24

- #10 NC, hex.

4шт.

33

A22635

PUMP

ASSY. - fuel transfer (Repairs, Fig. 22)

1шт.

35

222-102

SLEEVE,1/4" Tube

1шт.

36

87017024

TUBE NUT,1/2"-24

NUT - tube fitting, 1/4" tube

1шт.

37

A21786

TUBE - oil, pump to block oil gallery

1шт.

38

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - oil tube, 1/4" tube

1шт.

39

222-102

SLEEVE,1/4" Tube

1шт.

40

87017024

TUBE NUT,1/2"-24

NUT - elbow assy., 1/4" tube

1шт.

41

221-1052

PLUG

BUSHING - reducer, 3/8" to 1/8", Serial Range: tube-block

1шт.

42

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel body

4шт.

43

A22978

BODY

- powrcel

4шт.

44

A22975

CAP

- powrcel

4шт.

45

A11812

CLAMP

- powrcel

4шт.

46

A11813

PLUG

SCREW - powrcel retainer

4шт.
