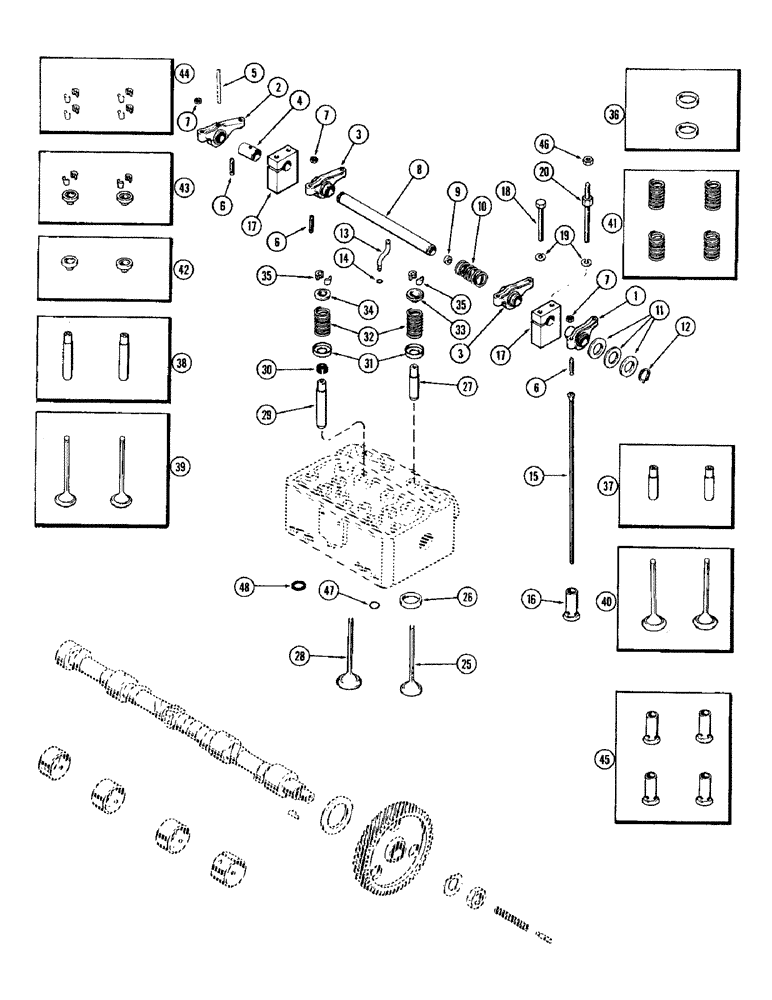

Запчасти Case 750 (015C) - VALVES AND VALVE MECHANISM, (267) DIESEL ENGINE, W/ STAMPED ROCKER ARMS (01) - ENGINE

1

A28660

ARM

ASSY. - rocker, exhaust (1st & 3rd cylinders) (Incl. item 4)

2шт.

2

A28661

X

ARM ASSY. - rocker, exhaust (2nd & 4th cylinders) (Incl. item 4)

2шт.

3

A28659

X

ARM ASSY. - rocker, intake (Incl. item 4)

4шт.

4

A27876

BUSHING

- rocker arm, intake & exhaust

1шт.

5

A27938

WICK

- lube, exhaust rocker arm

4шт.

6

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

8шт.

7

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" NF hex.

8шт.

8

A21100

SHAFT

ASSY. - rocker arm

2шт.

9

A26667

PLUG - end, rocker shaft, 9/16" cup type

2шт.

10

A27877

SPRING

- rocker arm shaft

2шт.

11

A27878

WASHER

- rocker shaft ends, 29/32 x 1-5/16 x .028"

14шт.

12

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

4шт.

13

A27879

TUBE

- oil, rocker shaft

2шт.

14

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, 3/16 x 5/16 x 1/16"

2шт.

15

A21060

ROD

- push

8шт.

16

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 45)

8шт.

17

A27881

BRACKET

- rocker arm & shaft

4шт.

18

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

Bracket Hex, 7/16"-14 x 3 3/4", G5

4шт.

19

92-7

LOCK WASHER,7/16"

8шт.

20

A28124

STUD - bracket & cylinder head cover

4шт.

25

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 39)

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 36)

4шт.

27

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 37)

4шт.

28

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 40)

4шт.

29

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 38)

4шт.

30

A10726

SEAL

SHIELD - intake valve stem (Rubber)

4шт.

31

A27866

SEAT

- intake & exhaust valve springs

8шт.

32

NSS

NOT SOLD SEPARAT

SPRING - intake & exhaust valve (Order ref. 41)

8шт.

33

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 42)

4шт.

34

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order ref. 43)

4шт.

35

NSS

NOT SOLD SEPARAT

KEEPER - valve springs (Order ref. 44)

16шт.

36

A57484

INSERT

KIT - exhaust valve (Set of 2)

2шт.

37

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

38

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

39

A24770

VALVE

KIT - exhaust (Set of 2)

2шт.

40

A40351

KIT

VALVE KIT - intake (Set of 2)

2шт.

41

A21694

SPRING

KIT - intake & exhaust (Set of 4)

2шт.

42

A24993

CAP

ROTO-CAP KIT - exhaust valve (Set of 2)

2шт.

43

A21657

LOCK

RETAINER KIT - intake valve (Incl. 4 keepers & 2 retainers)

2шт.

44

A40352

LOCK

KEEPER KIT - valve spring (Set of 8)

2шт.

45

A21653

KIT

LIFTER KIT - push rod (Set of 4) (Std.)

2шт.

45

A22463

KIT

LIFTER KIT - push rod (Set of 4) (.010")

2шт.

46

25-117

NUT,7/16"-20, G5

- 7/16" NF hex.

4шт.

47

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - gasket oil passage seal

2шт.

48

A7669

RING

GASKET - cylinder gasket water seal

4шт.
