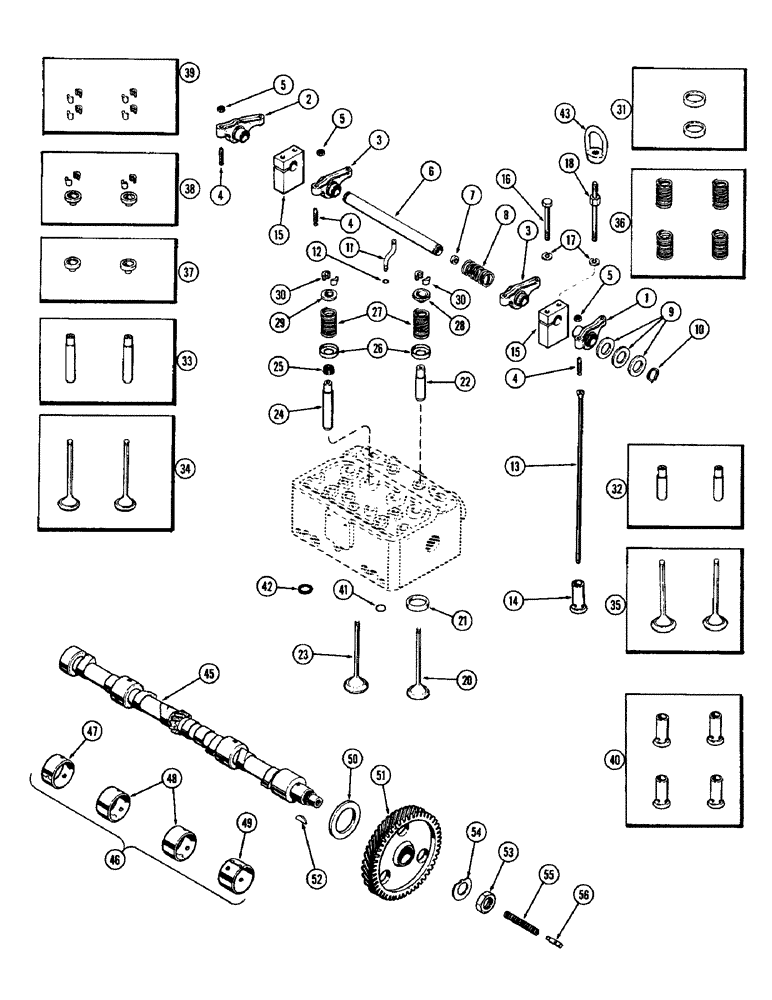

Запчасти Case 750 (015A) - VALVE MECHANISM AND CAMSHAFT, (267) DIESEL ENGINE, W/CAST IRON ROCKER ARMS (01) - ENGINE

1

A22324

ROCKER

ARM ASSY. - rocker, exhaust (1st & 3rd cylinders) (Incl. items 4 & 5)

2шт.

2

A22326

ROCKER

ARM ASSY. - rocker, exhaust (2nd & 4th cylinders) (Incl. items 4 & 5)

2шт.

3

A22322

ROCKER

ARM ASSY. - rocker, intake (Incl. items 4 & 5)

4шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

1шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock, adjusting screw, 3/8" NC jam

1шт.

6

A21100

SHAFT

ASSY. - rocker arm

2шт.

7

A26667

PLUG - end, rocker shaft, 9/16" cup type

2шт.

8

A27877

SPRING

- rocker arm shaft

2шт.

9

A27878

WASHER

- rocker shaft ends, 29/32 x 1-5/16 x .028"

14шт.

10

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

4шт.

11

A27879

TUBE

- oil, rocker shaft

2шт.

12

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, 3/16 x 5/16 x 1/16"

2шт.

13

A21060

ROD

- push

8шт.

14

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 40)

8шт.

15

A27881

BRACKET

- rocker shaft

4шт.

16

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

Bracket Hex, 7/16"-14 x 3 3/4", G5

4шт.

17

92-7

LOCK WASHER,7/16"

8шт.

18

A28124

STUD - bracket & cylinder head cover

4шт.

20

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 34)

4шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 31)

4шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 32)

4шт.

23

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 35)

4шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 33)

4шт.

25

A10726

SEAL

SHIELD - intake valve stem (Rubber)

4шт.

26

A27866

SEAT

- intake & exhaust valve springs

8шт.

27

NSS

NOT SOLD SEPARAT

SPRING - intake & exhaust valve (Order ref. 36)

8шт.

28

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 37)

4шт.

29

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order ref. 38)

4шт.

30

NSS

NOT SOLD SEPARAT

KEEPER - valve springs (Order ref. 39)

16шт.

31

A57484

INSERT

KIT - exhaust valve (Set of 2)

2шт.

32

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

33

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

34

A24770

VALVE

KIT - exhaust (Set of 2)

2шт.

35

A40351

KIT

VALVE KIT - intake (Set of 2)

2шт.

36

A21694

SPRING

KIT - intake & exhaust (Set of 4)

2шт.

37

A24993

CAP

ROTO-CAP KIT - exhaust valve (Set of 2)

2шт.

38

A21657

LOCK

RETAINER KIT - intake valve (4 keepers & 2 retainers)

2шт.

39

A40352

LOCK

KEEPER KIT - valve spring (Set of 8)

2шт.

40

A21653

KIT

LIFTER KIT - push rod (Set of 4) Std.)

2шт.

40

A22463

KIT

LIFTER KIT - push rod (Set of 4) (.010")

2шт.

41

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - gasket oil passage seal

2шт.

42

A7669

RING

SEAL - gasket water passage seal

4шт.

43

A22689

NUT

- lifting eye, 1/2"

2шт.

45

A23495

CAMSHAFT

- engine

1шт.

46

A23577

KIT

BUSHING KIT - camshaft (Set of 4)

1шт.

47

NSS

NOT SOLD SEPARAT

BUSHING - rear, 1-5/32" wide

1шт.

48

NSS

NOT SOLD SEPARAT

BUSHING - intermediate, 1-7/16" wide

2шт.

49

NSS

NOT SOLD SEPARAT

BUSHING - front, 1-21/32" wide

1шт.

50

A21017

WASHER

- thrust, camshaft

1шт.

51

A22604

GEAR

- camshaft

1шт.

52

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Camshaft gear #18, 1/4" x 1 1/8"

1шт.

53

A26445

NUT

- retaining, cam gear

1шт.

54

A26444

LOCK WASHER

LOCK - nut, cam gear (Tab washer)

1шт.

55

CASA27853

SPRING

- thrust plunger

1шт.

56

A27852

PLUNGER

- thrust, camshaft bumper

1шт.
