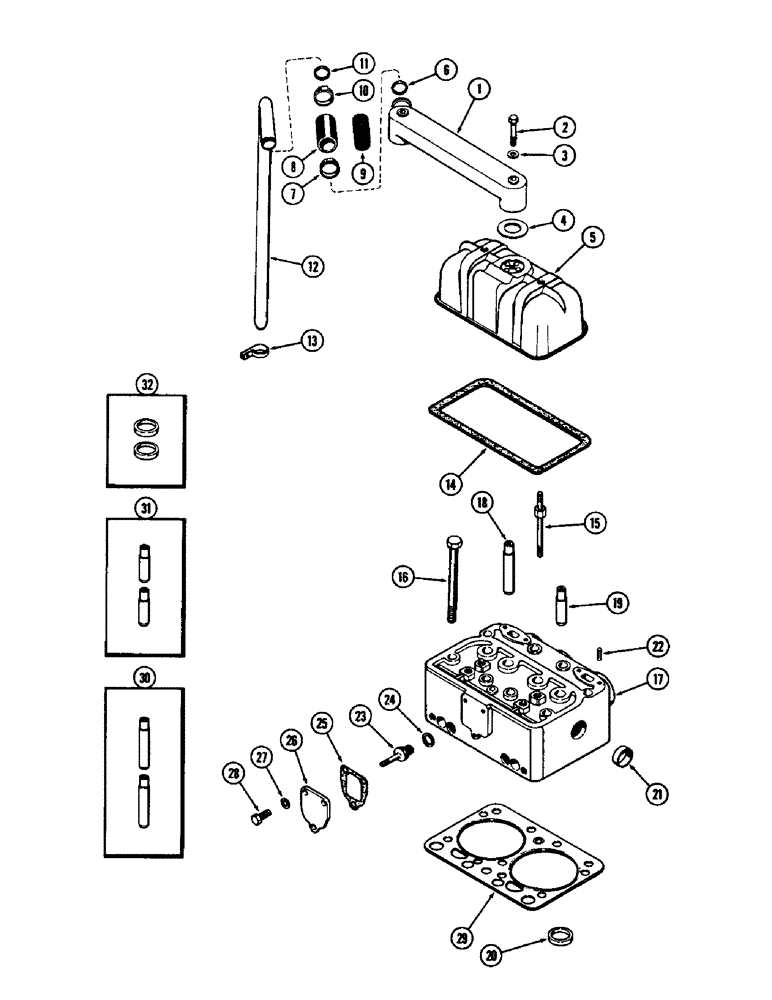

Запчасти Case 750 (014) - CYLINDER HEAD ASSEMBLY, (267) DIESEL ENGINE, (EARLY PRODUCTION) (01) - ENGINE

1

A22588

BRACKET

MANIFOLD - breather

1шт.

2

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16 x 3" NC, hex.

2шт.

3

A26413

GASKET

WASHER - hd. cover (Copper)

2шт.

4

A22587

GASKET - breather manifold

2шт.

5

A22567

COVER - cylinder hd.

2шт.

6

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

8

R20608

HOSE - breather tube

1шт.

9

R17265

ELEMENT - breather tube

1шт.

10

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

1шт.

11

95-5

WASHER,3/8" x 7/8" x .083"

- 13/32 x 13/16 x 5/64"

1шт.

12

R20609

TUBE - breather, valve cover (Early model)

1шт.

13

R21385

CLAMP

- breather tube

1шт.

14

A27972

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

15

A28124

STUD - rocker bracket & valve cover

4шт.

16

A23355

BOLT

- mtg., cylinder head

18шт.

17

NSS

NOT SOLD SEPARAT

HEAD ASSY. - cylinder (Order A33643)

2шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - int. valve (Order ref. 30)

2шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - exh. valve (Order ref. 31)

2шт.

20

NSS

NOT SOLD SEPARAT

INSERT - exh. valve (Order ref. 32)

2шт.

21

A34124

PLUG,Cup, 1 5/8", Stainless

- cup, cyl. head

2шт.

22

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel

2шт.

23

A10678

STUD

- large, nozzle holder

2шт.

24

A10679

GASKET

- nozzle holder stud

2шт.

25

A22939

GASKET

- cyl. hd. opening cover

2шт.

26

A22607

COVER ASSY

COVER - cyl. head opening

2шт.

27

92-5

LOCK WASHER,5/16"

6шт.

28

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

29

A23118

GASKET

- cylinder head

2шт.

30

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

31

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

32

A21681

KIT

INSERT KIT - exhaust valve (Set of 2)

2шт.
