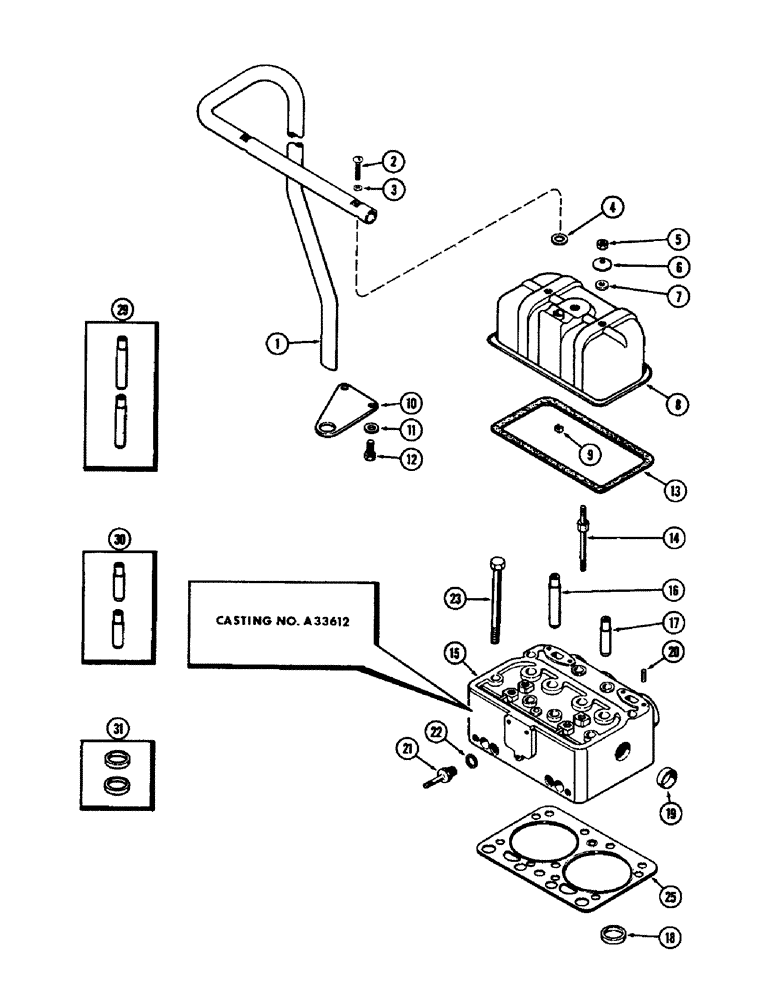

Запчасти Case 750 (012) - CYLINDER HEAD ASSEMBLY, (267) DIESEL ENGINE, (LATE PRODUCTION) (01) - ENGINE

1

A17486

TUBE - breather, oil

1шт.

2

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- mach., 1/4 x 2-1/4" NC, rd. hd.

2шт.

3

A34133

GASKET

- breather screw

2шт.

4

A23685

GASKET

- breather tube seat

2шт.

5

25-117

NUT,7/16"-20, G5

- 7/16" NF, hex.

4шт.

6

A23683

WASHER

- bevel, valve hd. cover stud

4шт.

7

A23684

GASKET

GASKET - valve hd. cover stud

4шт.

8

A23681

COVER ASSY

. - cylinder hd.

2шт.

9

131-2

NUT,1/4"-20, GB

NUT, , NC - Tinnerman 1/4"-20, GB

2шт.

10

A33414

BRACKET

- breather tube

1шт.

11

A9936

BOLT - mtg., bracket (Special)

2шт.

12

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

13

A27972

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

14

A28124

STUD - rocker bracket & head cover

4шт.

15

A33643

HEAD (CYLINDER)

HEAD ASSY. - cylinder (Casting no. A33612)

2шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - int. valve (Order ref. 29)

2шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - exh. valve (Order ref. 30)

2шт.

18

NSS

NOT SOLD SEPARAT

INSERT - valve seat, exhaust (Order ref. 31)

2шт.

19

A34124

PLUG,Cup, 1 5/8", Stainless

- cup, cyl. head, 1-21/32"

2шт.

20

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel

2шт.

21

A10678

STUD

- nozzle holder, large

2шт.

22

A10679

GASKET

- large nozzle holder stud

2шт.

23

A23355

BOLT

- mtg., cylinder head

18шт.

25

A23118

GASKET

- cylinder head

2шт.

29

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

30

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

31

A57484

INSERT

KIT - exh. valve (Set of 2)

2шт.
