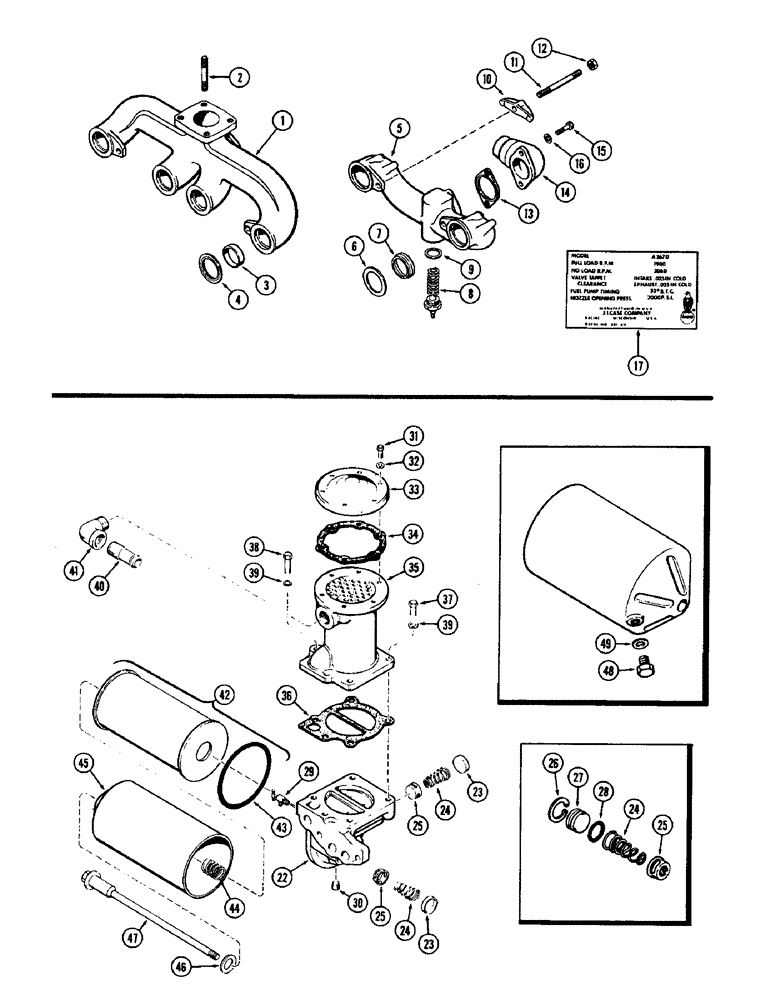

Запчасти Case 750 (010) - INTAKE AND EXHAUST MANIFOLD, (267) DIESEL ENGINE (01) - ENGINE

1

A21008

MANIFOLD

- exhaust

1шт.

2

A34821

STUD

- muffler mounting, 1/2" NC/NF x 1-7/8" (For exhaust manifold with coarse threads)

1шт.

2

A26852

STUD

- muffler mounting, 1/2" NF x 1-7/8" (For exhaust manifold with fine threads)

1шт.

3

A21648

CAP

FERRULE - exhaust manifold

4шт.

4

A11889

GASKET

- exhaust manifold

4шт.

5

A21005

MANIFOLD - intake

1шт.

6

A11888

MANIFOLD GASKET

- intake manifold

2шт.

7

A21383

CAP

FERRULE - intake manifold

2шт.

8

A34278

HEATER

ELEMENT - manifold heater (24 volt)

1шт.

9

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

10

A24368

CLAMP

- int. & exh. manifolds

4шт.

11

A27911

STUD

- mtg., int. & exh. manifolds

4шт.

12

25-117

NUT,7/16"-20, G5

- 7/16" NF, hex.

4шт.

13

A21055

MANIFOLD GASKET

- intake elbow

1шт.

14

A21007

ELBOW - intake manifold

1шт.

15

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

321-811

DECAL - cyl. head cover (Engine data)

1шт.

NSS

NOT SOLD SEPARAT

FILTER AND COOLER ASSY. - engine oil

1шт.

22

A23473

BASE

ASSY. - filter & cooler, oil

1шт.

23

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve (Late model), oil filter & cooler

2шт.

24

A21091

VALVE SPRING

SPRING - relief valve, oil filter & cooler

2шт.

25

A21090

VALVE

- oil relief, filter & cooler

2шт.

26

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, plug (early model), oil filter & cooler

2шт.

27

A21092

PLUG - relief valve (Early model), filter & cooler

2шт.

28

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - plug seal (Early model), oil filter & cooler

2шт.

29

A23655

VALVE

- drain, base, oil filter & cooler

1шт.

30

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/4" NPT sq. hd., oil filter & cooler

1шт.

31

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Oil filter & cooler Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

32

92-5

LOCK WASHER,5/16"

oil filter & cooler 5/16"

6шт.

33

A23030

CAP

- oil cooler, filter

1шт.

34

A21088

GASKET

- oil cooler cap, filter

1шт.

35

A21086

COOLER ASSY.

COOLER - oil, filter & cooler

1шт.

36

A21087

GASKET

- cooler to base, oil filter

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Oil filter & cooler Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

38

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Oil filter & cooler Hex, 3/8"-16 x 1 3/4", G5

1шт.

39

92-6

LOCK WASHER,3/8"

oil filter & cooler 3/8"

5шт.

40

A16529

NIPPLE, LUBE

NIPPLE - cooler water hose, oil filter

1шт.

41

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- 3/4 x 3/4" NPT x 90 degree street, oil filter & cooler

1шт.

NSS

NOT SOLD SEPARAT

FILTER ASSY. - oil, cooler

1шт.

42

A20822

ENGINE OIL FILTER

ELEMENT KIT - filter, oil cooler

1шт.

43

A20429

GASKET

"O" RING - filter seal, oil cooler

1шт.

44

A20427

VALVE SPRING

SPRING - tension, element, oil filter & cooler

1шт.

45

A20824

SHELL

- element, oil filter & cooler

1шт.

46

A20426

GASKET

- stand pipe, oil filter & cooler

1шт.

47

A20825

PIPE

STAND PIPE - shell mounting, oil filter & cooler

1шт.

48

A20826

PLUG

- shell drain (Early model), oil filter & cooler

1шт.

49

A20827

GASKET - drain plug (Early model), oil filter & cooler

1шт.
