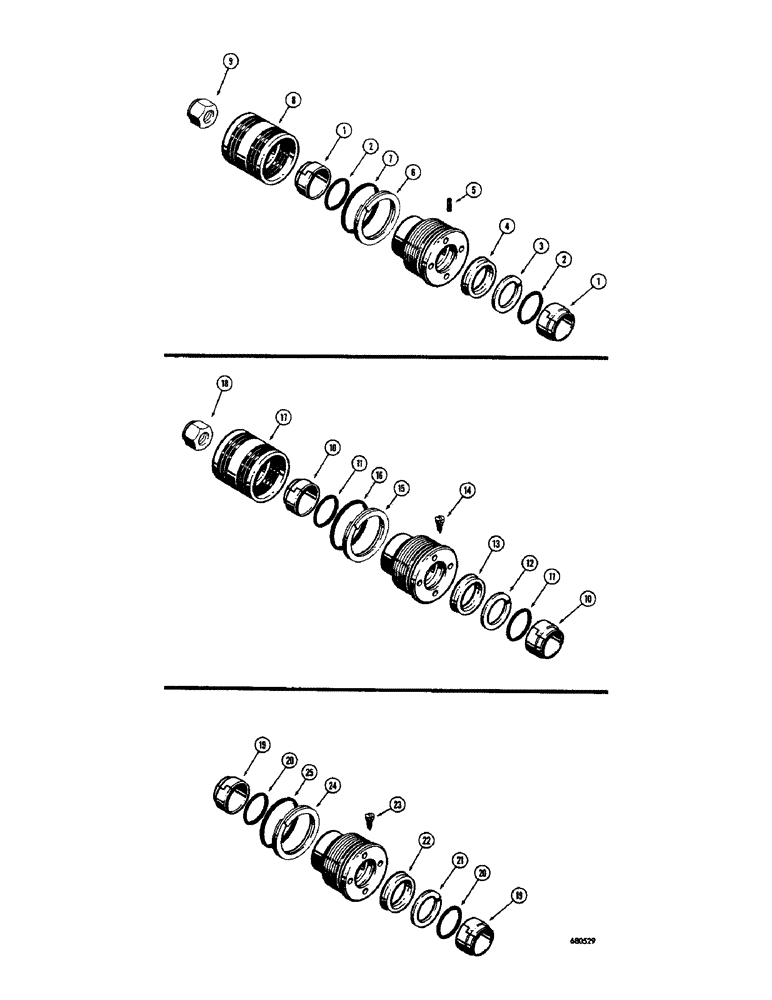

Запчасти Case 750 (280) - CYLINDER PACKING KITS, USED IN D31693 LOADER DUMP CYLINDER, D30134 CYLINDER PACKING KIT (07) - HYDRAULIC SYSTEM

D30134

X

KIT - complete cylinder packing, gland type (When dealer stock is exhausted, use D42876 kit for service)

1шт.

1

D27380

SCRAPER RING

WIPER - piston rod

2шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "o" ring, wiper

2шт.

3

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal

1шт.

4

D28496

PACKING - piston (When stock is exhausted, use D36971 seal for service)

1шт.

5

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , use 187-1031 screw for service 3/16" x 5/8", Slotted

1шт.

6

D27382

RING

- backup, gland seal

1шт.

7

D27507

SEAL - "o" ring, gland seal

1шт.

8

D28376

SEAL

PACKING - piston rod (When stock is exhausted, order D36964 packing for service)

1шт.

9

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

D37358

GLAND

KIT - complete cylinder packing, gland type (When dealer stock is exhausted, use D42876 kit for service)

1шт.

10

D27380

SCRAPER RING

WIPER - piston rod, D37358 cylinder packing kit

2шт.

11

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "o" ring, wiper, D37358 cylinder packing kit

2шт.

12

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod, D37358 cylinder packing kit

1шт.

13

D36971

RING

SEAL - piston rod, D37358 cylinder packing kit

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D37358 cylinder packing kit

1шт.

15

D36095

BACK-UP RING

- backup, gland seal, D37358 cylinder packing kit

1шт.

16

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "o" ring, gland seal, D37358 cylinder packing kit

1шт.

17

D36964

PACKING

- piston, D37358 cylinder packing kit

1шт.

18

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, , D37358 cylinder packing kit 1 1/4"-12, GB

1шт.

D42876

GLAND

KIT - gland packing

1шт.

NOTE: Complete cylinder packing kits are no longer furnished. If complete cylinder packing kit is required, order one D36964 piston packing with D42876 gland kit.

1шт.

19

D27380

SCRAPER RING

WIPER - piston rod, D42876 cylinder gland packing kit

2шт.

20

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "o" ring, wiper, D42876 cylinder gland packing kit

2шт.

21

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal, D42876 cylinder gland packing kit

1шт.

22

D36971

RING

SEAL - piston rod, D42876 cylinder gland packing kit

1шт.

23

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42876 cylinder gland packing kit

1шт.

24

D27382

RING

- backup, gland seal, D42876 cylinder packing kit

1шт.

25

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "o" ring, gland seal, D42876 cylinder packing kit

1шт.
