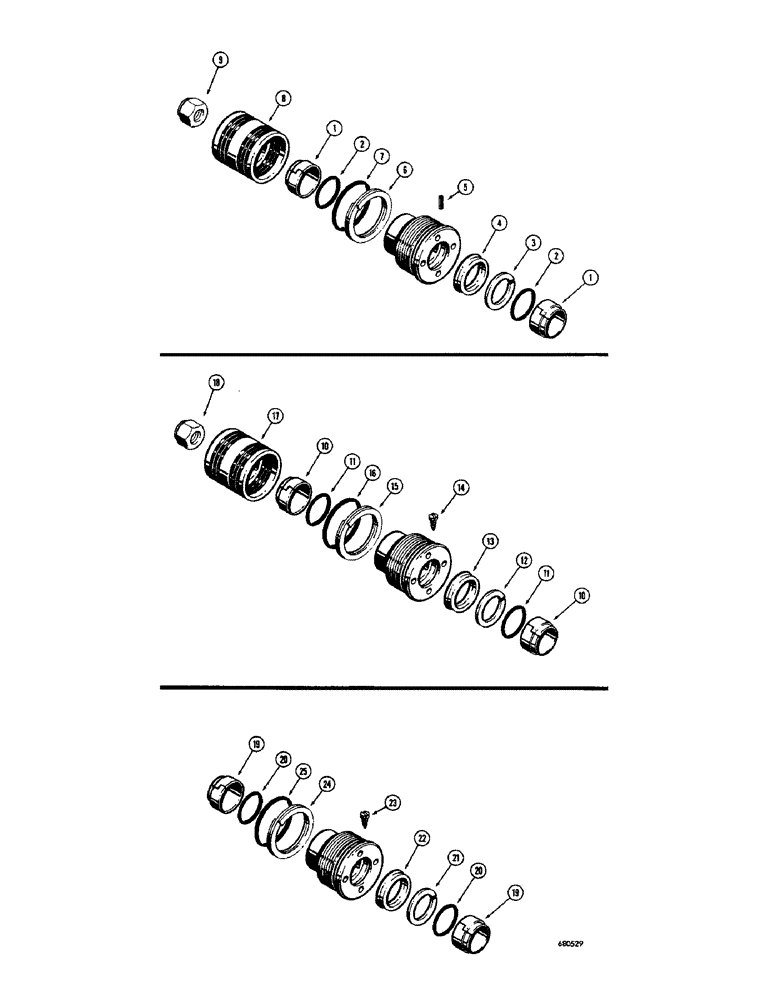

Запчасти Case 750 (278) - CYLINDER PACKING KITS, USED IN D32907 DOZER TILT CYL. & D28766 RIPPER CYL., D30132 CYL PACKING KIT (07) - HYDRAULIC SYSTEM

D30132

X

KIT - complete cylinder packing, gland type (When dealer stock is exhausted, use D42873 kit for service)

1шт.

1

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

WIPER - piston rod

2шт.

2

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "o" ring, wiper

2шт.

3

D28499

RING

- backup, rod seal

1шт.

4

D28495

PACKING

- piston rod (When stock is exhausted, use D36970 seal for service)

1шт.

5

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , use 187-1031 screw for service 3/16" x 5/8", Slotted

1шт.

6

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "o" ring, gland seal

1шт.

8

D28375

PACKING

- piston (When stock is exhausted, order D36963 packing for service)

1шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - lock, hex. (1" - 14 NF)

1шт.

D37356

GLAND

KIT - complete cylinder packing, gland type (When dealer stock is exhausted, use D42873 kit for service)

1шт.

10

D27432

SHIM

- piston rod, D37356 cylinder packing kit

2шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "o" ring, wiper, D37356 cylinder packing kit

2шт.

12

D28499

RING

- backup, piston rod seal, D37356 cylinder packing kit

2шт.

13

D36970

CUP

SEAL - piston rod, D37356 cylinder packing kit

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping #8 - 32 NC x 1/4", D37356 cylinder packing kit

1шт.

15

D36094

WASHER

RING - backup, gland seal, D37356 cylinder packing kit

1шт.

16

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "o" ring, gland seal, D37356 cylinder packing kit

1шт.

17

D36963

PACKING

- piston, D37356 cylinder kit

1шт.

18

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF), D37356 cylinder packing kit

1шт.

D42873

GASKET KIT

KIT - gland packing

1шт.

NOTE: Complete cylinder packing kits are no longer furnished. If complete cylinder packing kit is required, order 1 - D36963 packing with D42873 gland kit.

1шт.

19

D27432

SHIM

- piston rod, D42873 cylinder gland packing kit

2шт.

20

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "o" ring, wiper, D42873 cylinder gland packing kit

2шт.

21

D28499

RING

- backup, piston rod seal, D42873 cylinder gland packing kit

1шт.

22

D36970

CUP

SEAL - piston rod, D42873 cylinder gland packing kit

1шт.

23

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42873 cylinder gland packing kit

1шт.

24

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal, D42873 cylinder packing kit

1шт.

25

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "o" ring, gland seal, D42873 cylinder packing kit

1шт.
