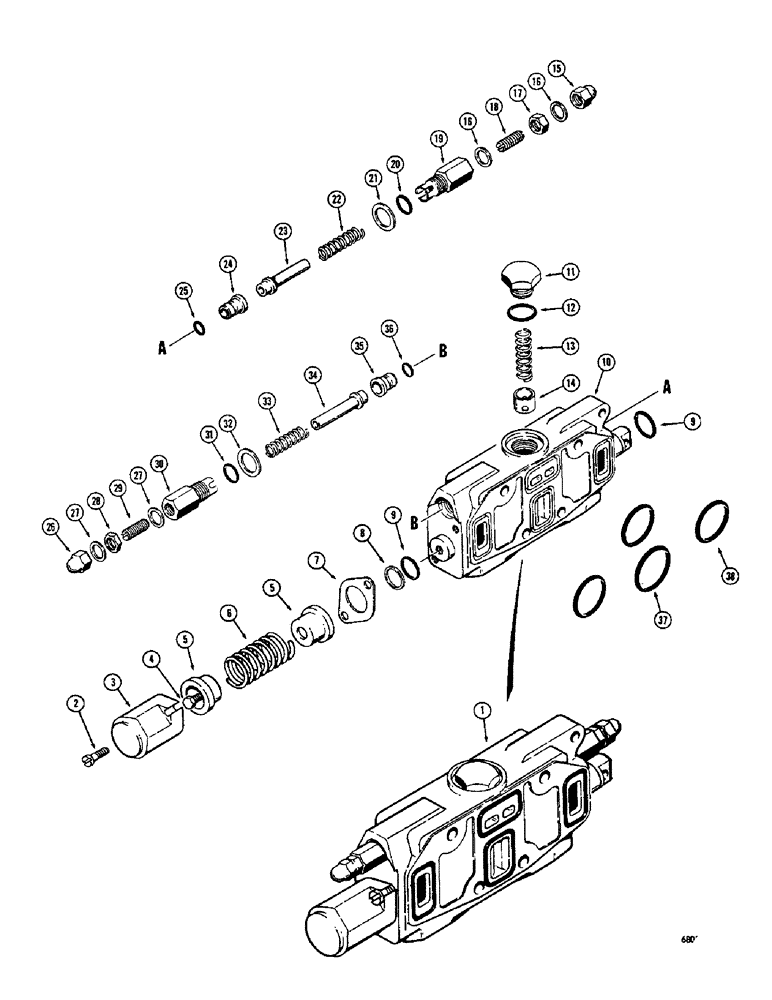

Запчасти Case 750 (272) - D42434 LOADER DUMP SECTION (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
2
71-412
SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"
FHCS - 1/4" - 20 NC x 3/4"
2шт.
3
D26823
CAP
- valve
1шт.
4
D26833
BOLT
- special
1шт.
5
D26831
GUIDE
- spring
2шт.
6
D40201
SPRING
- centering
1шт.
7
D26830
PLATE
- retaining
1шт.
8
D26829
RING
- backup
1шт.
9
D36830
RING
SEAL - "o" ring
2шт.
10
NSS
NOT SOLD SEPARAT
HOUSING AND SPOOL - dump section
1шт.
11
D30696
CYLINDER END CAP
CAP - check valve
1шт.
12
G46847
O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro
SEAL - "o" ring
1шт.
13
D26826
COMPRESSION SPRING
SPRING - check
1шт.
14
D26824
SPOOL
POPPET - relief, valve
1шт.
D38606
VALVE
CARTRIDGE - secondary relief (Must be set to correct pressure when installed on valve) When stock is exhausted, order D42866 cartridge for service
1шт.
D42866
VALVE
CARTRIDGE - secondary relief (Must be set to correct pressure when installed on valve)
1шт.
15
129-526
CROWN NUT,Low, 3/8" - 24
- acorn (3/8" - 24 NF)
1шт.
16
23150
WASHER
GASKET - copper
2шт.
17
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex, jam (3/8" - 24 NF)
1шт.
18
D38814
ADJUSTMENT SCREW,3/8" - 24
SCREW - special
1шт.
19
NSS
NOT SOLD SEPARAT
BODY - cartridge
1шт.
20
D26872
O-RING
SEAL - "o" ring
1шт.
21
D31450
WASHER
- gasket
1шт.
D42865
VALVE POPPET
KIT - spring, seat and poppet
1шт.
22
NSS
NOT SOLD SEPARAT
SPRING - relief valve
1шт.
23
NSS
NOT SOLD SEPARAT
POPPET - relief valve
1шт.
24
NSS
NOT SOLD SEPARAT
SEAT - relief valve
1шт.
25
D31411
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
-010, 90 Duro, .239" ID x .070" Thk, Seal
1шт.
D39454
CARTRIDGE
- secondary relief (Must be set to correct pressure when installed on valve)
1шт.
26
129-526
CROWN NUT,Low, 3/8" - 24
- acorn (3/8" - 24 NF)
1шт.
27
23150
WASHER
GASKET - copper
2шт.
28
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex., jam (3/8" - 24 NF)
1шт.
29
D38814
ADJUSTMENT SCREW,3/8" - 24
SCREW - special
1шт.
30
NSS
NOT SOLD SEPARAT
BODY - cartridge
1шт.
31
D26872
O-RING
SEAL - "o" ring
1шт.
32
D31450
WASHER
- gasket
1шт.
33
NSS
NOT SOLD SEPARAT
SPRING - relief valve
1шт.
D40189
PACKAGE
KIT - seat and poppet
1шт.
34
NSS
NOT SOLD SEPARAT
POPPET - relief valve
1шт.
35
NSS
NOT SOLD SEPARAT
SEAT - relief valve
1шт.
36
D31411
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
-010, 90 Duro, .239" ID x .070" Thk, Seal
1шт.
37
D26820
O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro
SEAL - "o" ring
1шт.
38
D26819
O-RING,1.299" ID x 1.505" OD
SEAL - "o" ring
3шт.
Выбрано товаров: 42
