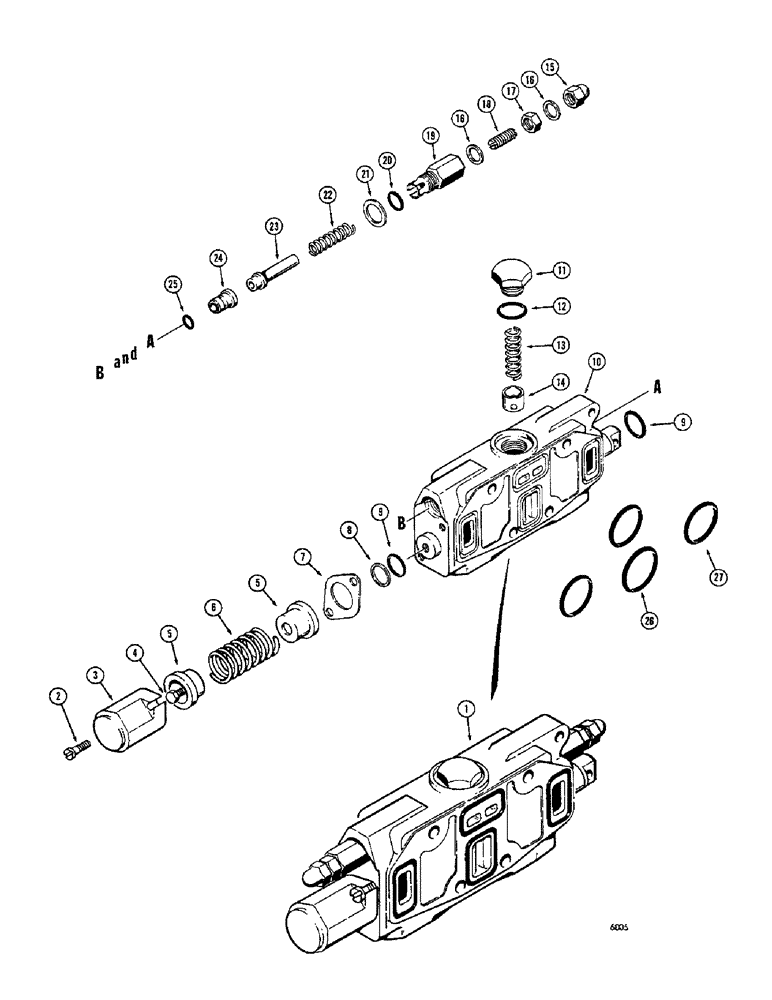

Запчасти Case 750 (270) - D42436 DOZER TILT OR ANGLING SECTION (07) - HYDRAULIC SYSTEM

1

D42436

ANGLE OR TILT SECTION - equipment control valve

1шт.

2

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

FHCS - 1/4" - 20 NC x 3/4"

2шт.

3

D26823

CAP

- valve

1шт.

4

D26833

BOLT

- special

1шт.

5

D26831

GUIDE

- spring

2шт.

6

D40201

SPRING

- centering

1шт.

7

D26830

PLATE

- retaining

1шт.

8

D26829

RING

- backup

1шт.

9

D36830

RING

SEAL - "o" ring

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - dump section

1шт.

11

D30696

CYLINDER END CAP

CAP - check valve

1шт.

12

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

13

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

14

D26824

SPOOL

POPPET - check valve

1шт.

D38606

VALVE

CARTRIDGE - secondary relief (Must be set to correct pressure when installed on valve) When stock is exhausted, order D42866 cartridge for service

2шт.

D42866

VALVE

CARTRIDGE - secondary relief (Must be set to correct pressure when installed on valve)

1шт.

15

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

16

23150

WASHER

GASKET - copper

2шт.

17

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

18

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - special

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

20

D26872

O-RING

SEAL - "o" ring

1шт.

21

D31450

WASHER

- gasket

1шт.

D42865

VALVE POPPET

KIT - spring, seat and poppet

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

25

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

26

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

27

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "o" ring

3шт.
