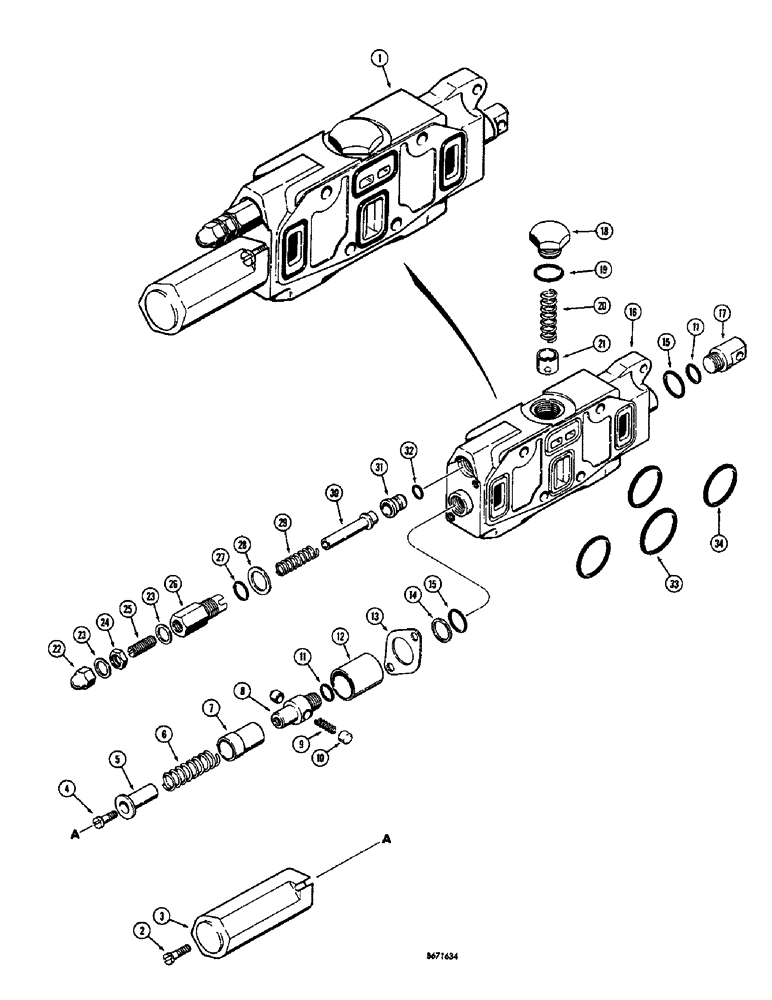

Запчасти Case 750 (268) - D42435 LOADER LIFT SECTION (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
D42435
KNIFE SECTION
LIFT SECTION - equipment control valve
1шт.
2
71-412
SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"
FHCS - 1/4" - 20 NC x 3/4"
2шт.
3
D32096
CYLINDER END CAP
CAP - valve
1шт.
4
D40818
SCREW - special
1шт.
5
D32095
RETAINER
- spring, inner
1шт.
6
D32094
SPRING - centering
1шт.
7
D32093
RETAINER - spring, outer
1шт.
8
D32090
RETAINER - poppet
1шт.
9
D32091
SPRING - poppet
1шт.
10
D32092
POPPET - relief
2шт.
11
D40816
O-RING
SEAL - "o" ring
2шт.
12
D32098
SLEEVE - poppet
1шт.
13
D40817
PLATE - retaining
1шт.
14
D32215
RING
- backup
1шт.
15
A27352
O-RING,0.859" ID x 1.137" OD x 0.139"
SEAL - "o" ring
2шт.
16
NSS
NOT SOLD SEPARAT
HOUSING AND SPOOL - lift section
1шт.
17
D32097
LUG
- spool
1шт.
18
D30696
CYLINDER END CAP
CAP - check valve
1шт.
19
G46847
O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro
SEAL - "o" ring
1шт.
20
D26826
COMPRESSION SPRING
SPRING - check valve
1шт.
21
D26824
SPOOL
POPPET - check valve
1шт.
D38606
VALVE
CARTRIDGE - secondary relief (Must be set to correct pressure when installed on valve) When stock is exhausted, order D42866 cartridge for service
1шт.
D42866
VALVE
CARTRIDGE - secondary relief (Must be set to correct pressure when installed on valve)
1шт.
22
129-526
CROWN NUT,Low, 3/8" - 24
- acorn (3/8" - 24 NF)
1шт.
23
23150
WASHER
GASKET - copper
2шт.
24
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex., jam (3/8" - 24 NF)
1шт.
25
D38814
ADJUSTMENT SCREW,3/8" - 24
SCREW - special
1шт.
26
NSS
NOT SOLD SEPARAT
BODY - cartridge
1шт.
27
D26872
O-RING
SEAL - "o" ring
1шт.
28
D31450
WASHER
- gasket
1шт.
D42865
VALVE POPPET
KIT - poppet and seat
1шт.
29
NSS
NOT SOLD SEPARAT
SPRING - relief valve
1шт.
30
NSS
NOT SOLD SEPARAT
POPPET - relief valve
1шт.
31
NSS
NOT SOLD SEPARAT
SEAT - relief valve
1шт.
32
D31411
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
-010, 90 Duro, .239" ID x .070" Thk, Seal
1шт.
33
D26820
O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro
SEAL - "o" ring
1шт.
34
D26819
O-RING,1.299" ID x 1.505" OD
SEAL - "o" ring
3шт.
Выбрано товаров: 37
