(264) - D31996 LOADER RIPPER, CLAM, PULL BEHIND, OR DOZER LIFT SECTION

Запчасти Case 750 (264) - D31996 LOADER RIPPER, CLAM, PULL BEHIND, OR DOZER LIFT SECTION (07) - HYDRAULIC SYSTEM

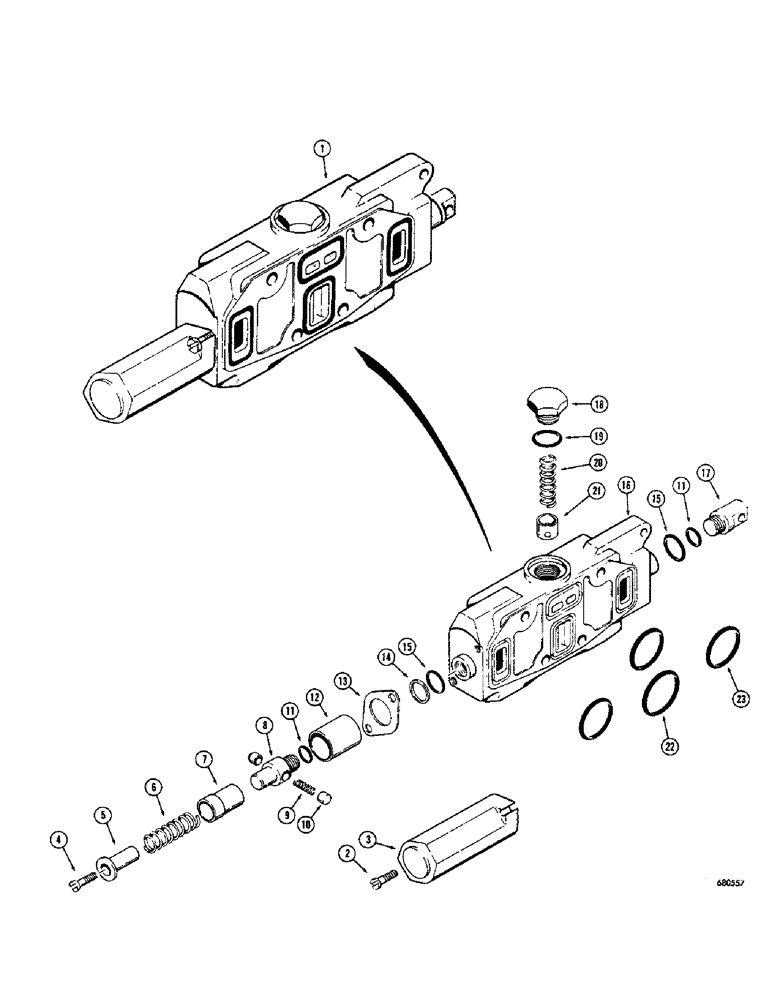

Схема запчастей Case 750 - (264) - D31996 LOADER RIPPER, CLAM, PULL BEHIND, OR DOZER LIFT SECTION (07) - HYDRAULIC SYSTEM
12
11
2
10
18
13
4
17
15
19
14
3
23
22
21
15
20
8
9
1
6
7
11
16
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D31996

HOSE

VALVE SECTION - equipment control valve, loader ripper, clam, pull behind or dozer lift (Order D42130 section when used as ripper, clam or pull behind section, parts list Fig. 266)

1шт.

2

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

FHCS - 1/4" - 20 NC x 3/4"

2шт.

3

D32096

CYLINDER END CAP

CAP - valve

1шт.

4

D40818

SCREW - special

1шт.

5

D32095

RETAINER

- spring, inner

1шт.

6

D32094

SPRING - centering

1шт.

7

D32093

RETAINER - spring, outer

1шт.

8

D32090

RETAINER - poppet

1шт.

9

D32091

SPRING - poppet

1шт.

10

D32092

POPPET - relief

2шт.

11

D40816

O-RING

SEAL - "o" ring

2шт.

12

D32098

SLEEVE - poppet

1шт.

13

D40817

PLATE - retaining

1шт.

14

D32215

RING

- backup

1шт.

15

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - "o" ring

2шт.

16

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - ripper section

1шт.

17

D32097

LUG

- spool

1шт.

18

D30696

CYLINDER END CAP

CAP - check valve

1шт.

19

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

20

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

21

D26824

SPOOL

POPPET - check valve

1шт.

22

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

23

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "o" ring

3шт.
