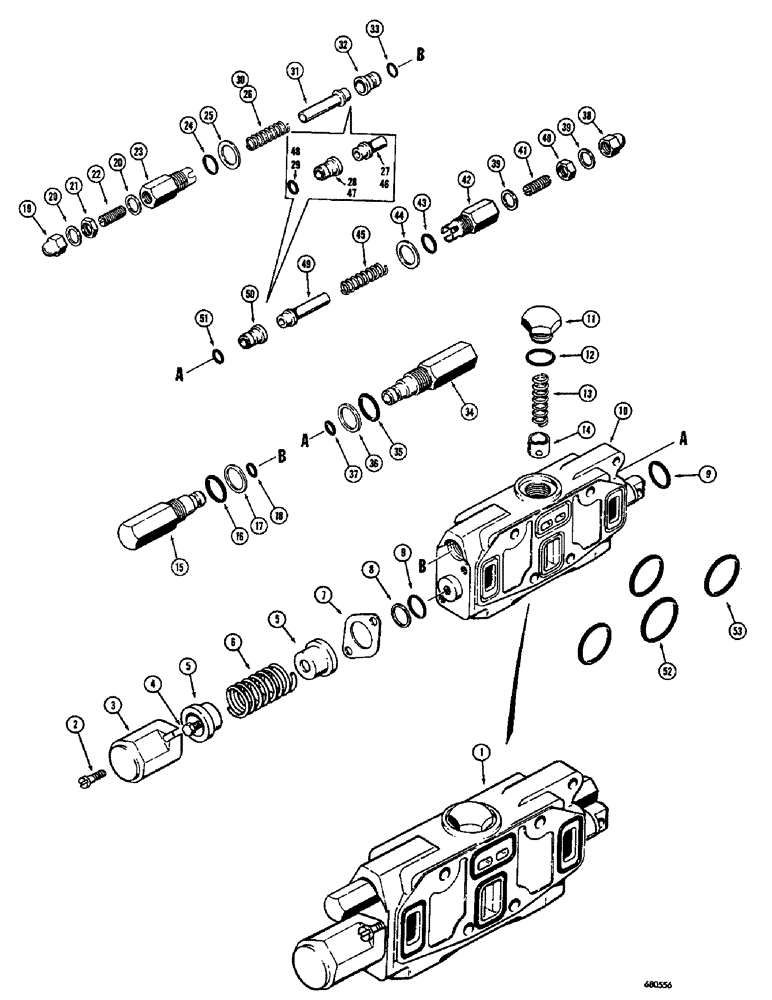

Запчасти Case 750 (260) - D31994 LOADER DUMP SECTION (07) - HYDRAULIC SYSTEM

1

D31994

KNIFE SECTION

DUMP SECTION - equipment control valve

1шт.

2

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

FHMS - 1/4" - 20 NC x 3/4"

2шт.

3

D26823

CAP

- valve

1шт.

4

D26833

BOLT

- special

1шт.

5

D26831

GUIDE

- spring

2шт.

6

D26832

SPRING

- centering

1шт.

7

D26830

PLATE

- retaining

1шт.

8

D26829

RING

- backup

1шт.

9

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "o" ring

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - dump section

1шт.

11

D30696

CYLINDER END CAP

CAP - check valve

1шт.

12

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

13

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

14

D26824

SPOOL

POPPET - check valve

1шт.

15

D32100

FILTER

CARTRIDGE - secondary relief (2400 PSI) When stock is exhausted, order D32577 relief valve for service

1шт.

16

D26872

O-RING

SEAL - "o" ring

1шт.

17

D31450

WASHER

- gasket

1шт.

18

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

D32557

CARTRIDGE

- secondary relief (Must be set to correct pressure when installed on valve) When stock is exhausted, order D42866 relief valve for service

1шт.

D42866

VALVE

CARTRIDGE - secondary relief (Must be set to correct pressure when installed on relief valve)

1шт.

19

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

20

23150

WASHER

GASKET - copper

2шт.

21

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

22

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set (D32557 cartridge only)

1шт.

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - special (D42866 cartridge only)

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

24

D26872

O-RING

SEAL - "o" ring

1шт.

25

D31450

WASHER

- gasket

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - relief valve (D32557 cartridge only)

1шт.

D39188

PACKAGE

KIT - seat and poppet (D32557 cartridge only)

1шт.

27

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

29

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

D42865

VALVE POPPET

KIT - seat, poppet and spring (D42866 cartridge only)

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

31

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

32

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

33

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

34

D32086

CARTRIDGE - secondary relief (1250 PSI) When stock is exhausted, order D32556 relief valve for service

1шт.

35

D26872

O-RING

SEAL - "o" ring

1шт.

36

D31450

WASHER

- gasket

1шт.

37

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

D32556

CARTRIDGE

- secondary relief (Must be set to correct pressure when installed on valve) When stock is exhausted, order D39454 relief valve for service

1шт.

D39454

CARTRIDGE

- secondary relief (Must be set to correct pressure when installed on valve)

1шт.

38

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

39

23150

WASHER

GASKET - copper

2шт.

40

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

41

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set (D32556 cartridge only)

1шт.

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - special (D39454 cartridge only)

1шт.

42

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

43

D26872

O-RING

SEAL - "o" ring

1шт.

44

D31450

WASHER

- gasket

1шт.

45

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

D40191

X

KIT - seat and poppet (D32556 cartridge only)

1шт.

46

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

47

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

48

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

D40189

PACKAGE

KIT - seat and poppet (D39454 cartridge only)

1шт.

49

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

50

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

51

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

52

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

53

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "o" ring

3шт.
