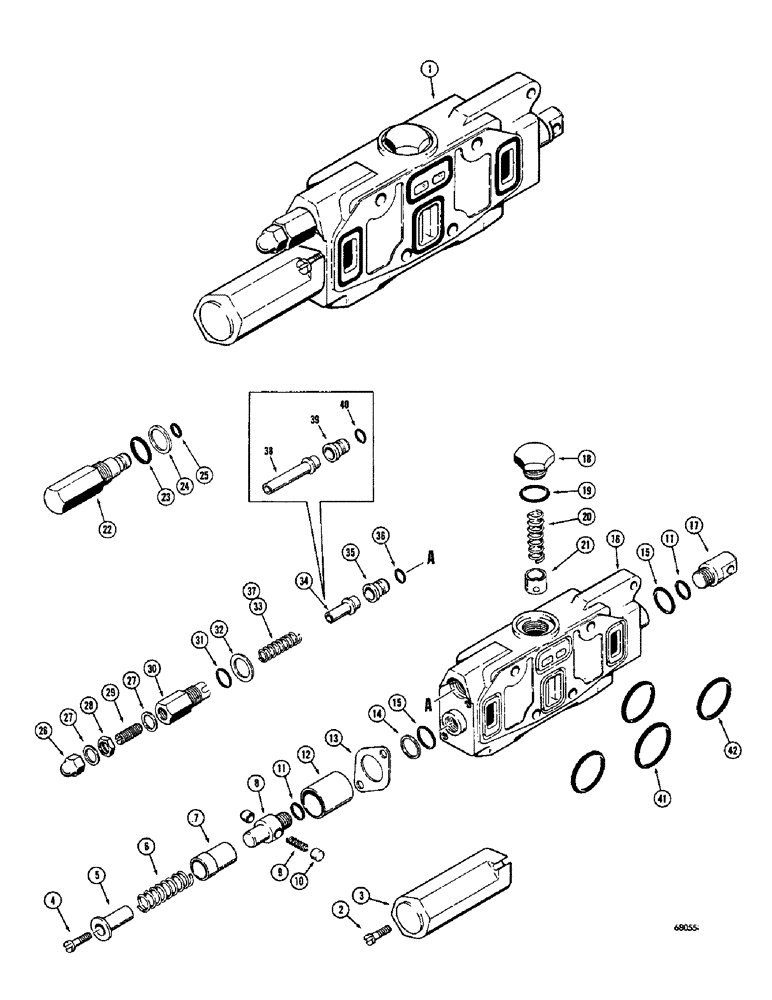

Запчасти Case 750 (258) - D31995 LOADER LIFT SECTION (07) - HYDRAULIC SYSTEM

1

D31995

X

LIFT SECTION - equipment control valve

1шт.

2

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

FHMS - 1/4" - 20 NC x 3/4"

2шт.

3

D32096

CYLINDER END CAP

CAP - valve

1шт.

4

D40818

SCREW - special

1шт.

5

D32095

RETAINER

- spring, inner

1шт.

6

D32094

SPRING - centering

1шт.

7

D32093

RETAINER - spring, outer

1шт.

8

D32090

RETAINER - poppet

1шт.

9

D32091

SPRING - poppet

1шт.

10

D32092

POPPET - relief valve

2шт.

11

D40816

O-RING

SEAL - "o" ring

2шт.

12

D32098

SLEEVE - poppet

1шт.

13

D40817

PLATE - retaining

1шт.

14

D32215

RING

- backup

1шт.

15

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - "o" ring

2шт.

16

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - lift section

1шт.

17

D32097

LUG

- spool

1шт.

18

D30696

CYLINDER END CAP

CAP - check valve

1шт.

19

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

20

R15308

VALVE SPRING

SPRING - check valve

1шт.

21

D26824

SPOOL

POPPET - check valve

1шт.

22

D32100

FILTER

CARTRIDGE - secondary relief (2400 PSI) When stock is exhausted, order D32557 relief valve for service

1шт.

23

D26872

O-RING

SEAL - "o" ring

1шт.

24

D31450

WASHER

- gasket

1шт.

25

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

D32557

CARTRIDGE

- secondary relief (Must be set to correct pressure when installed on valve) When stock is exhausted, order D42866 relief valve for service

1шт.

D42866

VALVE

CARTRIDGE - secondary relief (Must be set to correct pressure when installed on relief valve)

1шт.

26

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

27

23150

WASHER

GASKET - copper

2шт.

28

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

29

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set (D32557 cartridge only)

1шт.

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - special (D42866 cartridge only)

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

31

D26872

O-RING

SEAL - "o" ring

1шт.

32

D31450

WASHER

- gasket

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - relief valve (D32557 cartridge only)

1шт.

D39188

PACKAGE

KIT - seat and poppet (D32557 cartridge only)

1шт.

34

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

35

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

36

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

D42865

VALVE POPPET

KIT - seat, poppet and spring (D42866 cartridge only)

1шт.

37

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

38

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

39

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

40

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

41

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

42

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "o" ring

3шт.
