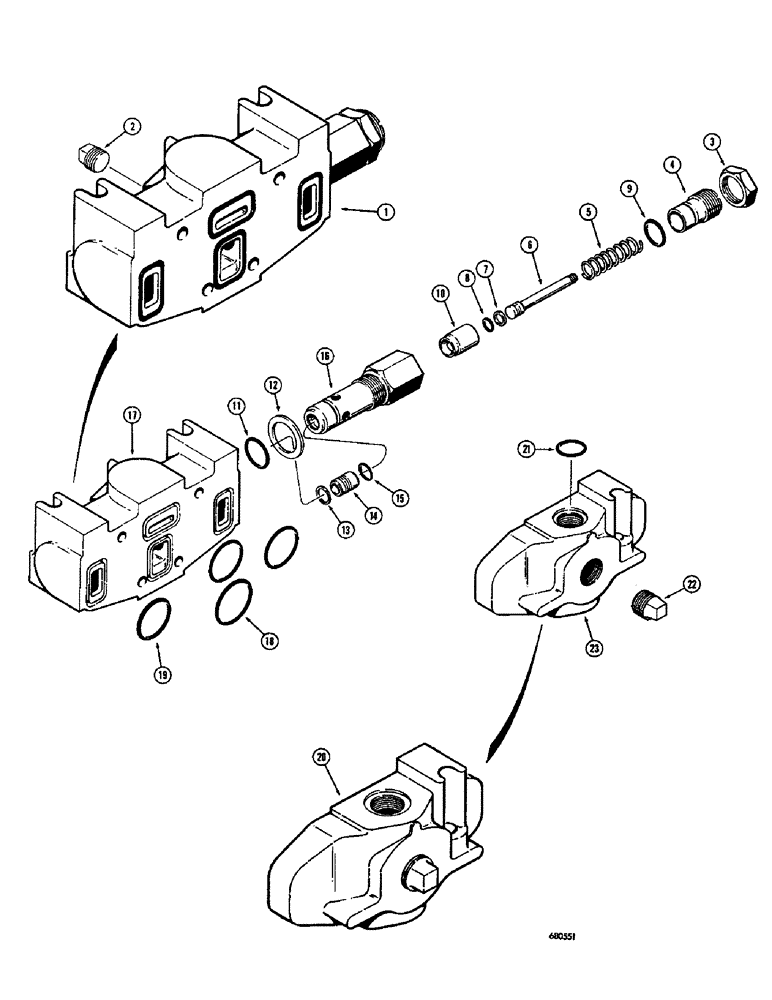

Запчасти Case 750 (256) - D31997 VALVE INLET SECTION (07) - HYDRAULIC SYSTEM

1

D31997

KNIFE SECTION

INLET SECTION - equipment control valve

1шт.

2

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

1шт.

D31989

CARTRIDGE

- relief

1шт.

3

D26850

NUT

- lock, adjusting screw

1шт.

4

D26849

SCREW - spring adjusting

1шт.

5

D32578

SPRING - compression

1шт.

6

D26852

PLUNGER - displacement

1шт.

7

D26853

BACK-UP RING

RING - backup

1шт.

8

A11026

GASKET

SEAL - "o" ring

1шт.

9

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

10

D31990

SEAT

SEAL - relief valve

1шт.

D32196

KIT

SHELL ASSEMBLY - cartridge

1шт.

11

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "o" ring

2шт.

12

D30681

GASKET

WASHER - gasket

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - poppet

1шт.

14

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - "o" ring

1шт.

16

NSS

NOT SOLD SEPARAT

SHELL - cartridge

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - inlet section

1шт.

18

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

19

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "o" ring

3шт.

20

D31993

SPARE PART

OUTLET SECTION - equipment control valve

1шт.

21

D32087

X

SEAL - "o" ring, D31993 valve outlet section

1шт.

22

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, square head (1-3/4" NPT), D31993 valve outlet section

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING - outlet section, D31993 valve

1шт.
