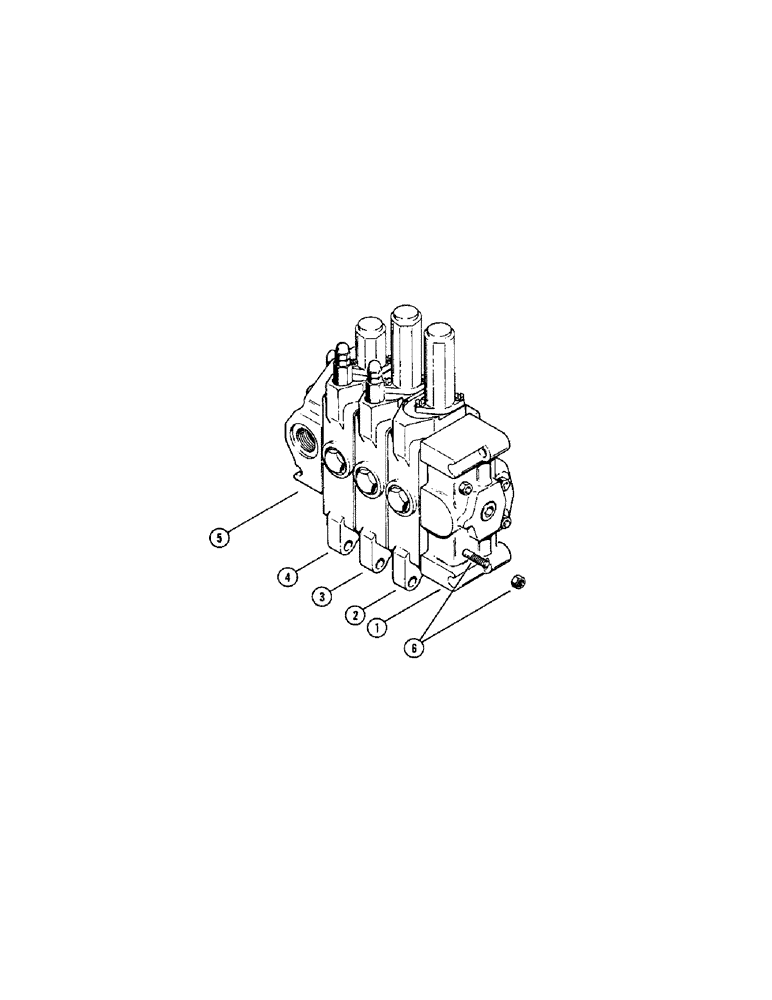

Запчасти Case 750 (254[1]) - D31287 DOZER CONTROL VALVE (3 SPOOL) INTERMEDIATE PRODUCTION (07) - HYDRAULIC SYSTEM

1

D31997

KNIFE SECTION

INLET SECTION - dozer control valve (Parts list Fig. 256)

1шт.

2

D31996

HOSE

RIPPER OR PULL BEHIND SECTION - dozer control valve, parts list Fig. 264 (For service use D42130 section) Parts list Fig. 266

1шт.

3

D31996

HOSE

LIFT SECTION - dozer control valve (Parts list Fig. 264)

1шт.

4

D33869

ANGLE OR TILT SECTION - dozer control valve (Parts list Fig. 274) When stock is exhausted, order D42436 valve sections for service (Parts list Fig. 270)

1шт.

5

D31993

SPARE PART

OUTLET SECTION - dozer control valve (Parts list Fig. 256)

1шт.

6

D32121

STUD

ASSEMBLY - valve

4шт.

D41492

VALVE - dozer control (3 spool)

1шт.
