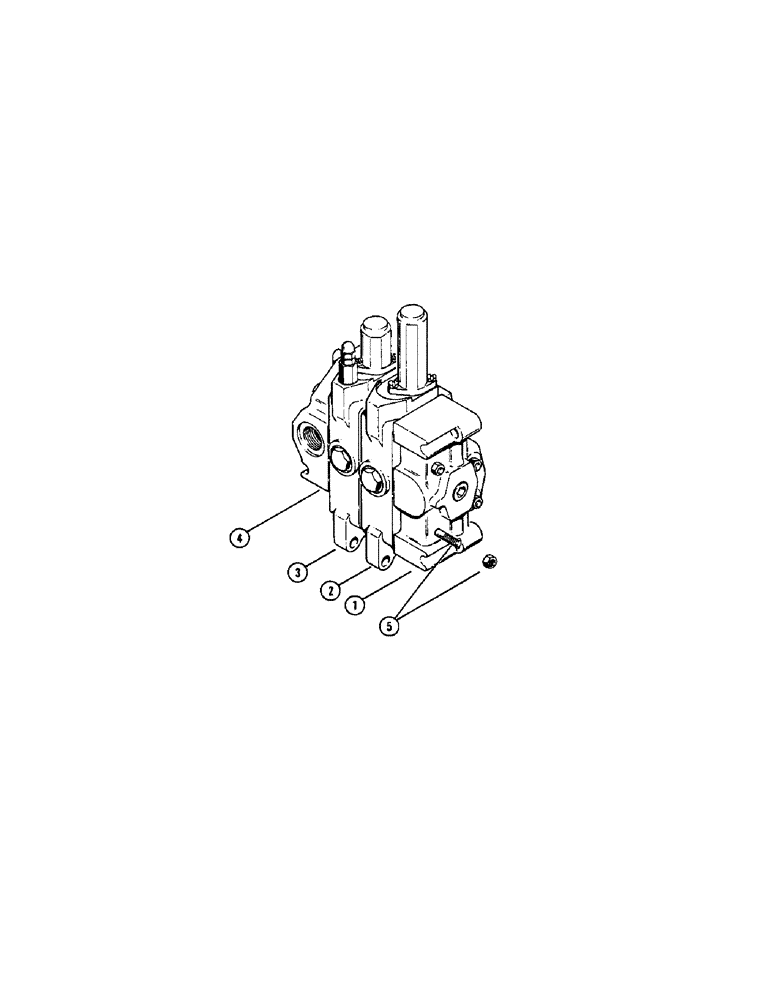

Запчасти Case 750 (252) - D30500 LOADER CONTROL VALVE (2 SPOOL), EARLY PRODUCTION (07) - HYDRAULIC SYSTEM

D30500

X

VALVE - loader control, used with counterweight models only (When stock is exhausted, order D30501 valve and 2 - 218-515 plugs for service

1шт.

1

D31997

KNIFE SECTION

INLET SECTION - loader control valve (Parts list Fig. 256)

1шт.

2

D31995

X

LIFT SECTION - loader control valve (Parts list Fig. 258) When stock is exhausted, order D42435 valve section for service (Parts list Fig. 268)

1шт.

3

D31994

KNIFE SECTION

DUMP SECTION - loader control valve (Parts list Fig. 260) When stock is exhausted, order D42434 section for service (Parts list Fig. 272)

1шт.

4

D31993

SPARE PART

OUTLET SECTION - loader control valve (Parts list Fig. 256)

1шт.

5

D31992

STUD ASSEMBLY - valve

4шт.

D30501

VALVE

- loader control, 3 spool (When stock is exhausted, order D41479 valve for service)

1шт.
