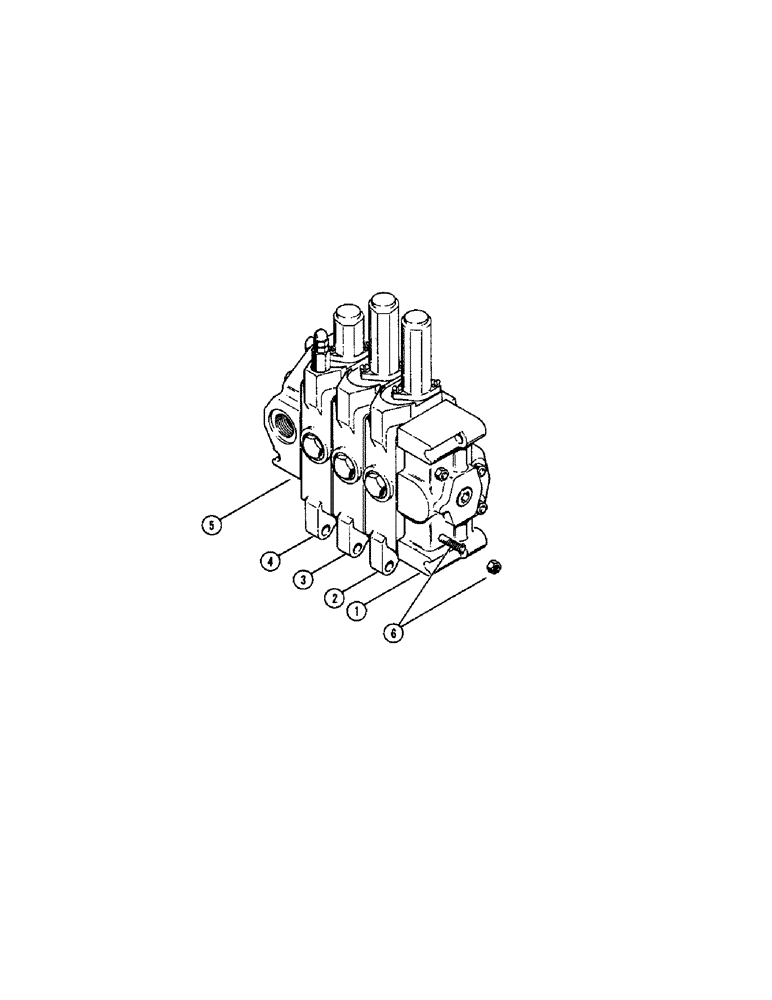

Запчасти Case 750 (252[1]) - D30501 LOADER CONTROL VALVE (3 SPOOL) (07) - HYDRAULIC SYSTEM

1

D31997

KNIFE SECTION

INLET SECTION - loader control valve (Parts list Fig. 256)

1шт.

2

D31996

HOSE

RIPPER, CLAM OR PULL BEHIND SECTION - loader control valve, parts list Fig. 264 (For service use D42130 section) Parts list Fig. 266

1шт.

3

D31995

X

LIFT SECTION - loader control valve (Parts list Fig. 258) When stock is exhausted, order D42435 valve section for service (Parts list Fig. 268)

1шт.

4

D31994

KNIFE SECTION

DUMP SECTION - loader control valve (Parts list Fig. 260) When stock is exhausted, order D42434 valve section for service (Parts list Fig. 272)

1шт.

5

D31993

SPARE PART

OUTLET SECTION - loader control valve (Parts list Fig. 256)

1шт.

6

D32121

STUD

ASSEMBLY - valve

4шт.

D41479

VALVE

- loader control, 3 spool

1шт.
