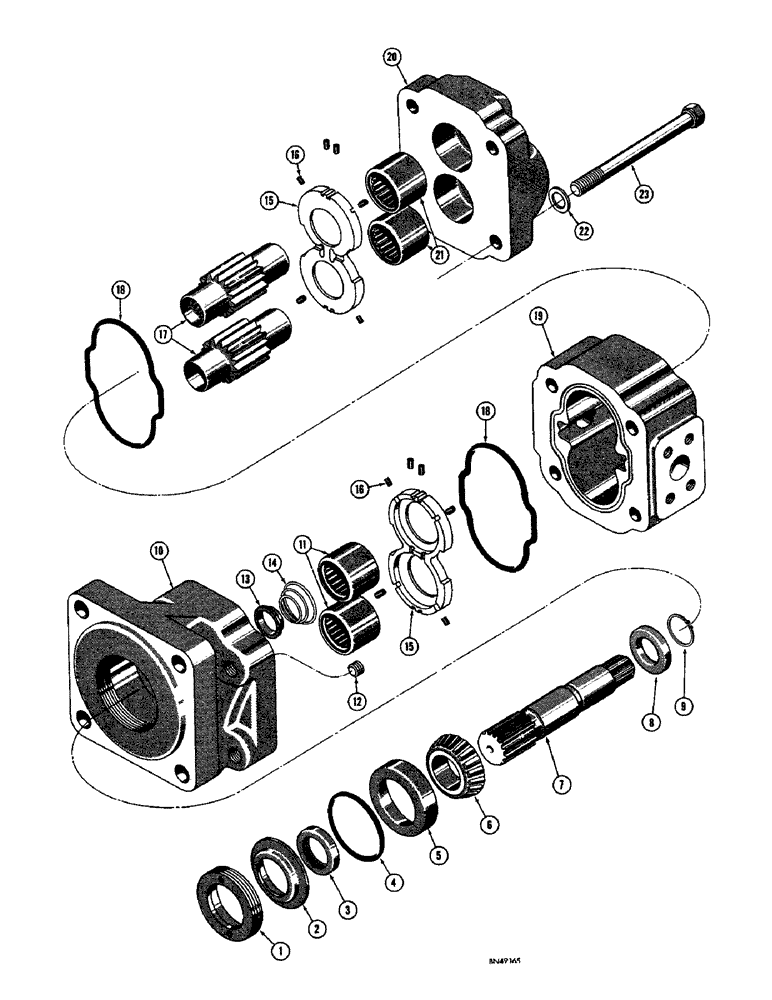

Запчасти Case 750 (250) - D31206 LOADER AND DOZER PUMP (07) - HYDRAULIC SYSTEM

D31206

PUMP

- hydraulic, 28.5 GPM at 1900 RPM at 1875 PSI (Commercial shearing #P25X178BEGBC 15-7)

1шт.

1

D31944

RETAINER

- seal and bearing

1шт.

2

D31946

RETAINER

- seal

1шт.

3

D31945

SEAL

- oil

1шт.

4

D31947

O-RING

SEAL - "o" ring

1шт.

5

D31948

BEARING CUP,2.5312" OD x 0.6563"

CUP - roller bearing

1шт.

6

D31949

ROLLER BEARING,30.175 mm ID x 21.636 mm

CONE - roller bearing

1шт.

7

D31958

SHAFT

- drive

1шт.

8

D31950

SPACER

- driveshaft

1шт.

9

D31951

SNAP RING

RING - snap

1шт.

D31940

COVER ASSEMBLY - shaft end

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

11

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

2шт.

12

D48900

PLUG

SCREW - set, 3/8" x 7/16" NC

1шт.

13

D31952

BUSHING

- shaft

1шт.

14

D31953

VALVE SPRING

SPRING - hydraulic pump

1шт.

15

D31955

PLATE

- thrust

2шт.

16

D35673

SEAL

- pocket, strip (4-3/4" x 3/32" dia.) Cut to proper length as required for service

1шт.

17

D31943

GEAR SET

GEARS - matched set (Drive and driven)

1шт.

18

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

SEAL - "o" ring (When stock is exhausted, order 2 - D41391 seals for service)

2шт.

D41391

O-RING

SEAL - "o" ring

2шт.

19

D31956

HOUSING

- gear

1шт.

D31941

COVER ASSEMBLY - port end

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

21

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

2шт.

22

D31957

WASHER

- wrot

4шт.

23

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

HHCS - 5/8" - 11 NC x 4-3/4"

4шт.
