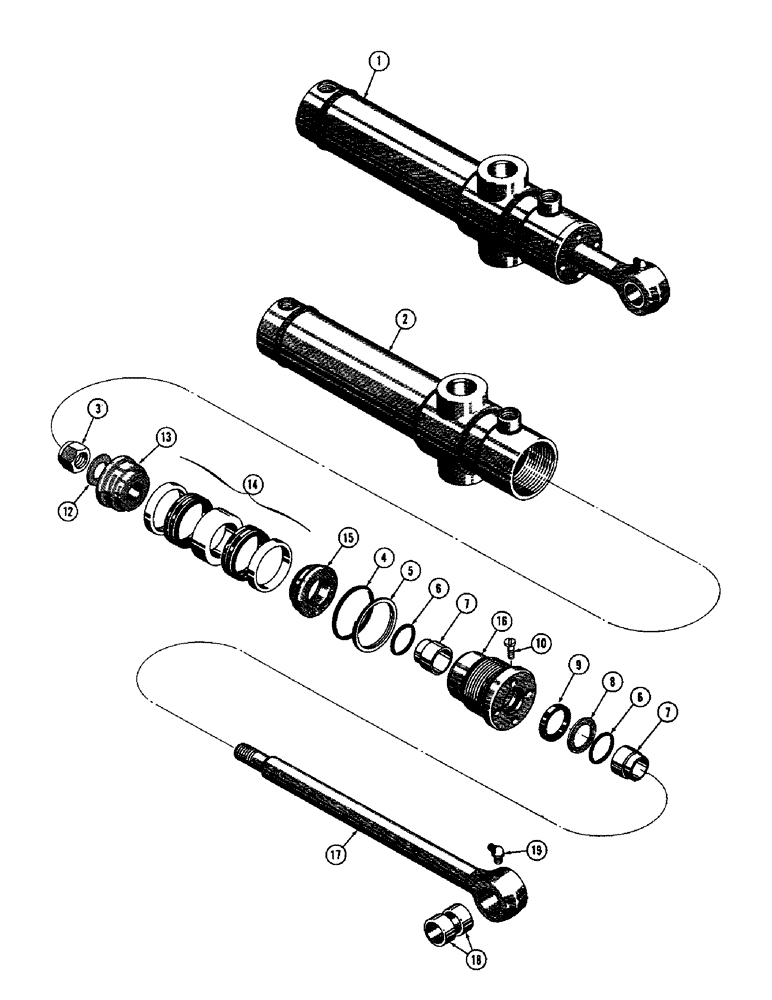

Запчасти Case 750 (248) - * D28766 RIPPER CYLINDER (LATE PRODUCTION) (07) - HYDRAULIC SYSTEM

1

D28766

CYLINDER

- hydraulic, ripper (3-1/2" ID x 14-5/16" stroke)

1шт.

2

D28765

TUBE - cylinder

1шт.

3

131-19

LOCK NUT,1"-14, GB

NUT - lock, hex (1" - 14 NF)

1шт.

D42873

GASKET KIT

KIT - gland packing

1шт.

4

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "o" ring, gland

1шт.

5

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

6

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "o" ring, wiper

2шт.

7

D27432

SHIM

- rod

2шт.

8

D28499

RING

- backup, rod seal

1шт.

9

D36970

CUP

SEAL - piston rod

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

11

RESERVED

1шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

1шт.

13

D28367

PISTON

- split, nut end

1шт.

14

D28375

PACKING

- piston (When stock is exhausted, use D36963 packing for service)

1шт.

D36963

PACKING

- piston

1шт.

15

D28369

PISTON

- split, eye end

1шт.

16

D27431

GLAND

- packing, uses A14515 seal (When stock is exhausted, use D45069 gland for service)

1шт.

D45069

GLAND

- packing

1шт.

17

D28763

ROD

- piston (1-3/4" dia.)

1шт.

18

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- rod

2шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
